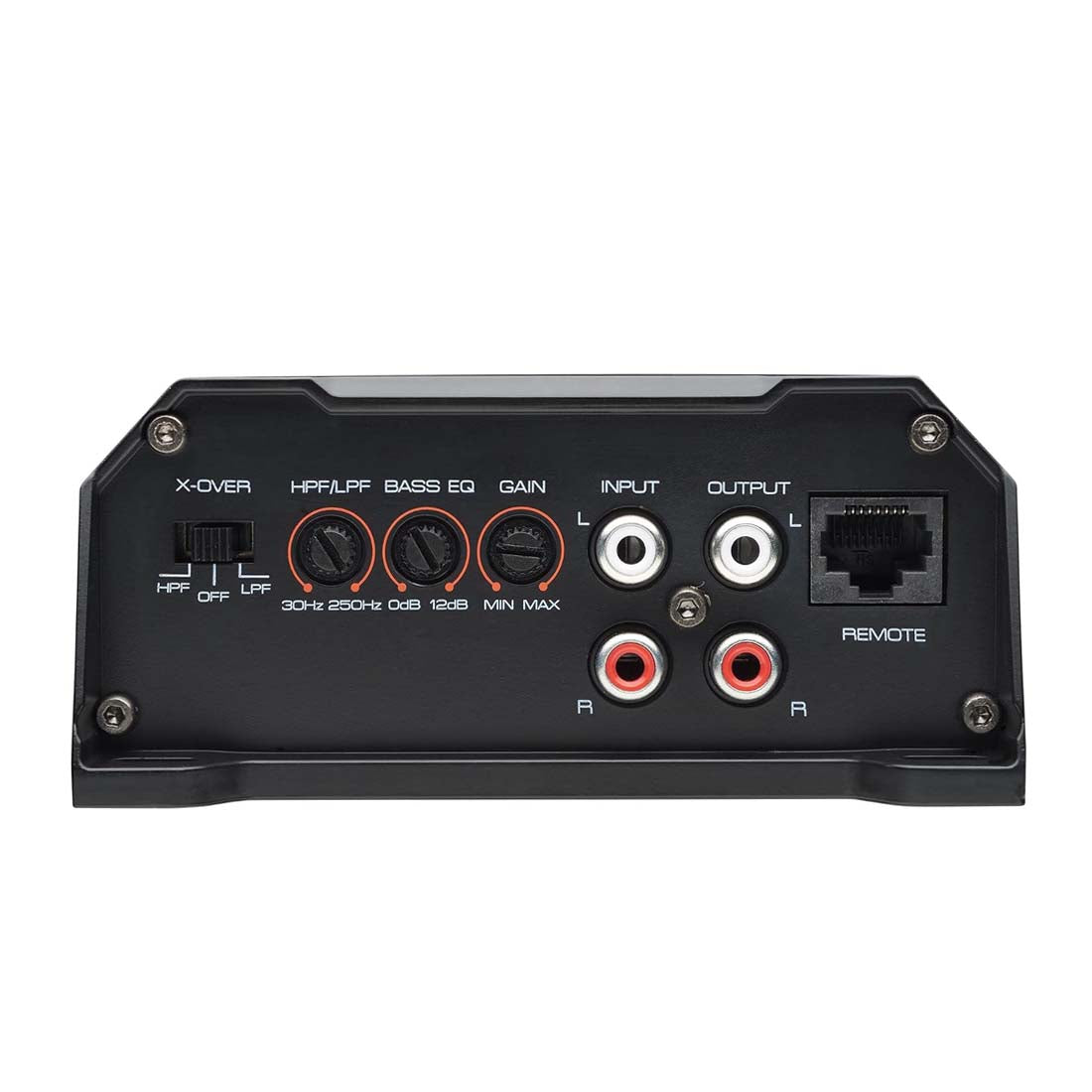

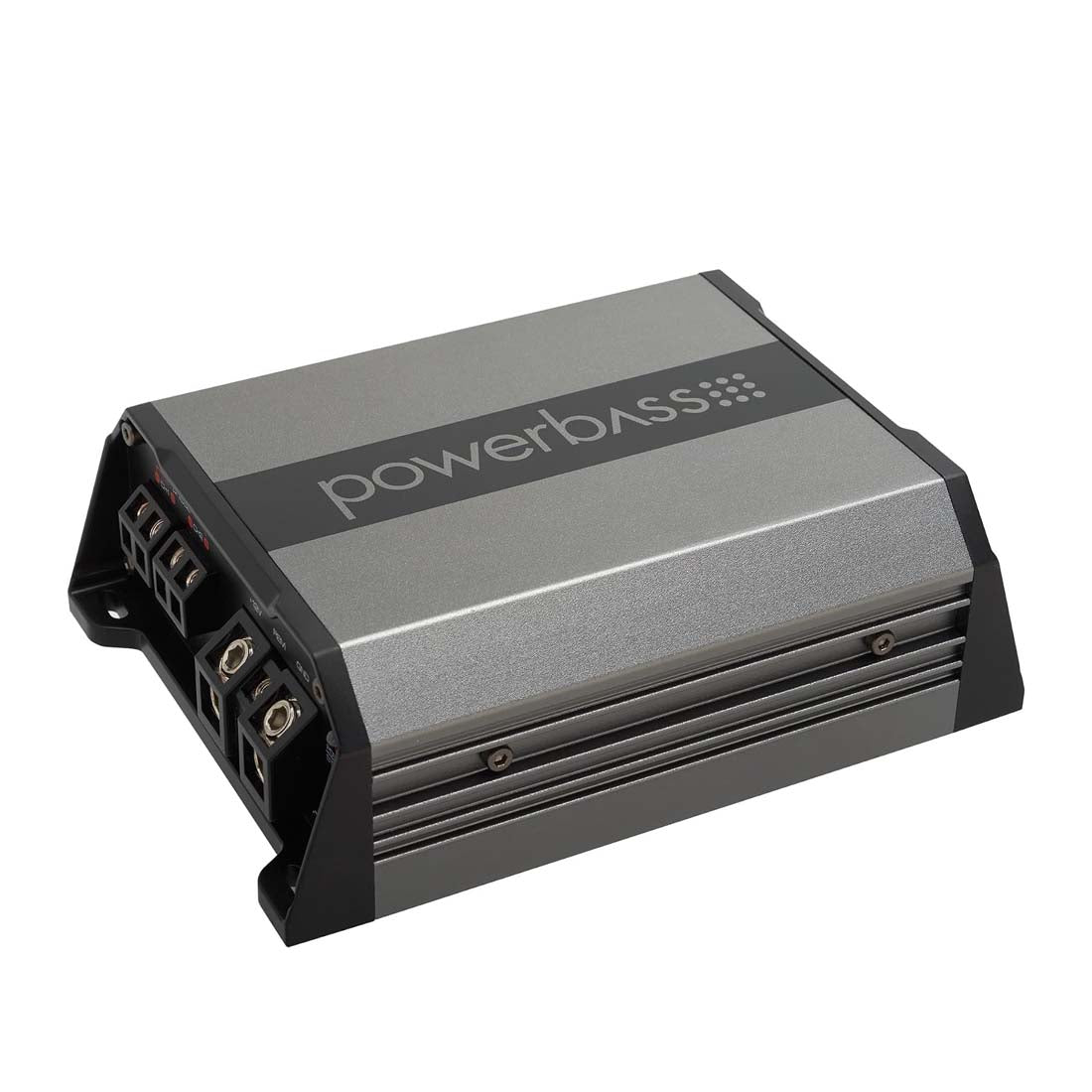

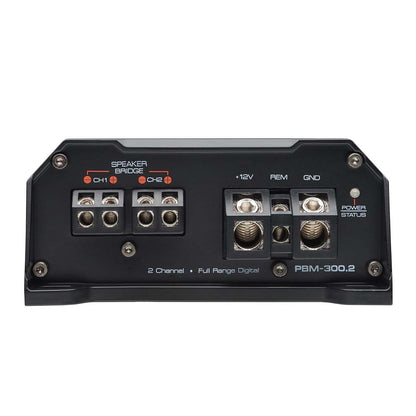

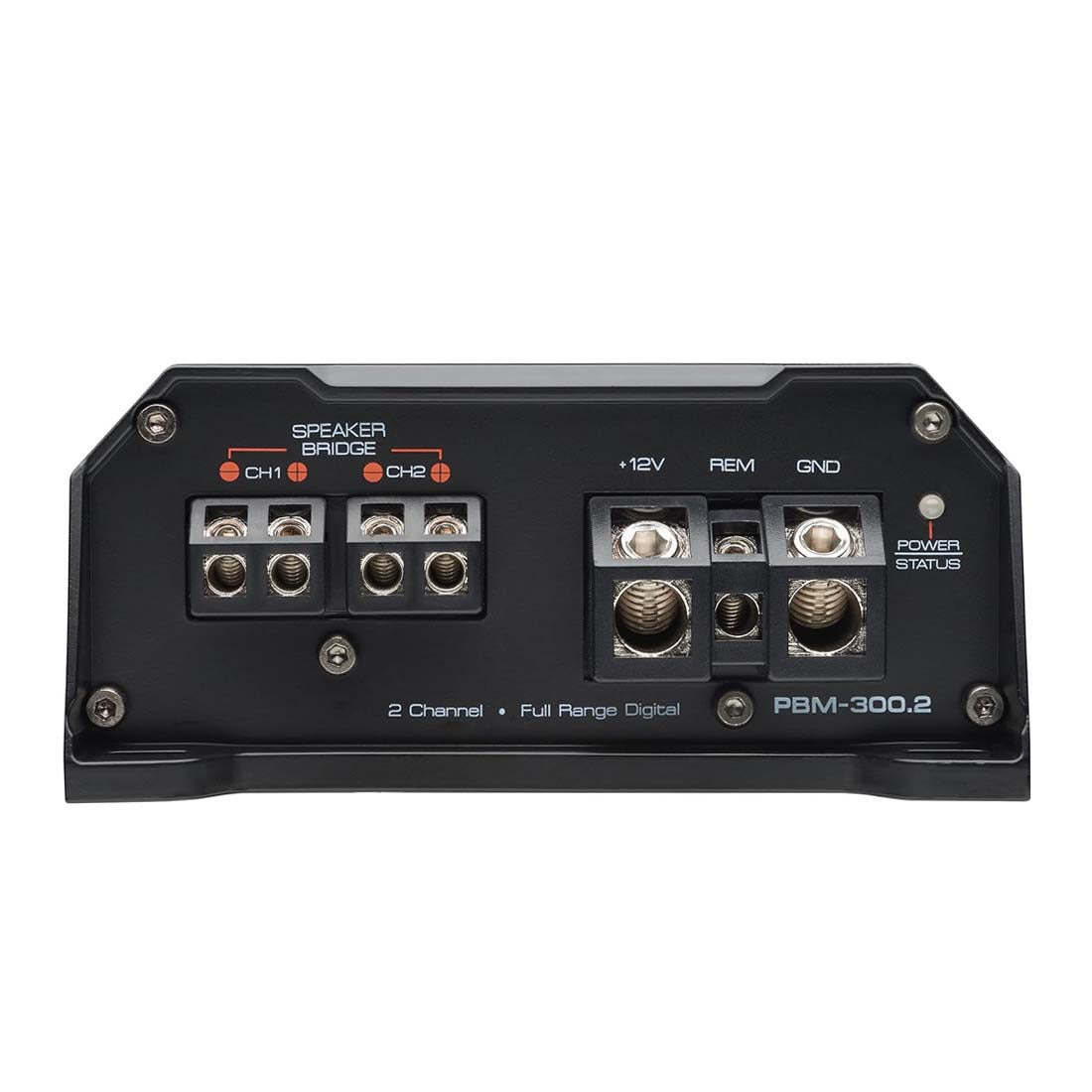

PowerBass PBM-300.2 300W 2-Channel 2Ohm Stable Class-D Full-Range Mini Amplifier

BRAND NEW

POWERBASS PBM-300.2

PBM Series Full Range 2 Channel Class D Mini Amplifier

Key Features:

• 300W High Efficiency Full Range Class D Design
• 2-OHM Stereo Stable Amplifier
• Ultra Low Current Draw
• Conformal Coated PC Board
• Digital Sound Optimization Circuitry
• High Damping Control Circuit
• High Current Voltage Ripple Rejection Circuitry
• Selectable Crossover Network HPF, LPF, OFF
• Variable Low Pass Electronic Crossover
• Variable High Pass Electronic Crossover
• Variable Gain Control
• Variable Gain Control
• Wired Secondary Remote Gain Control Included
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

Specifications:

• Peak Power: 350 watts x 2
• Power Supply: Unregulated PWM
• Inputs: RCA
• Dimensions (in Inches): 5"x4.43"x2"
• Channels (mono): 2
• 4-ohm Power: 75 watts x 2
• 4-ohm Mono Power: 300 watts x 1
• 2-ohm Power: 150 watts x 2
• Low-Pass Crossover Freq: 40 Hz - 250 Hz
• High-Pass Crossover Freq: 40 Hz - 250 Hz
• Crossover Slope: 12 dB
• Input Sensitivity: 0.25 V - 10.0 V
• S/N Ratio: >94 dB
• Total Harmonic Distortion: 0.5% at Rated Power
• Output Power (14.4 V) @ 4 ohm: 75 watts x 2
• Output Power (14.4 V) @ 2 ohm: 150 watts x 2
• Frequency Response: 20 Hz -20 KHz
