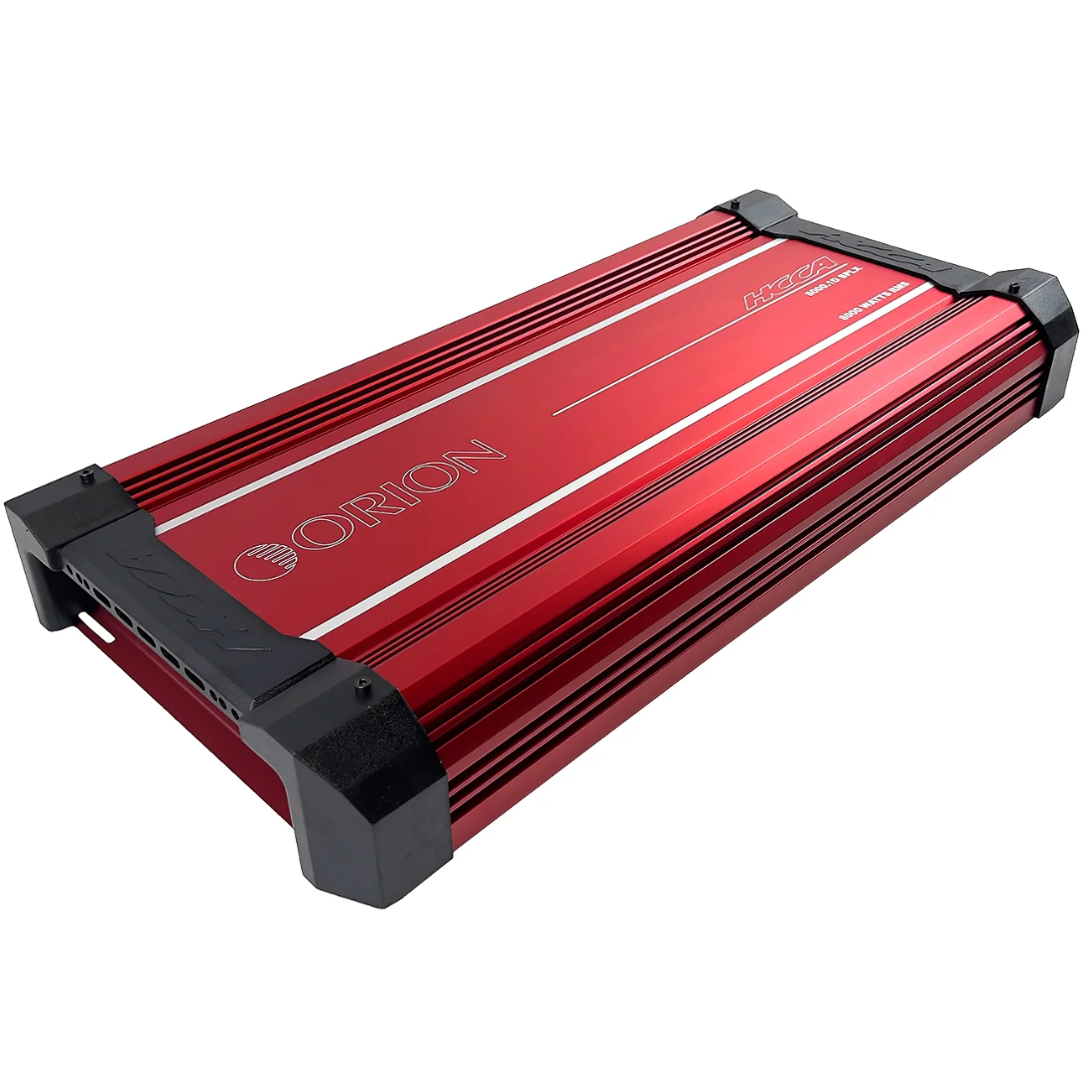

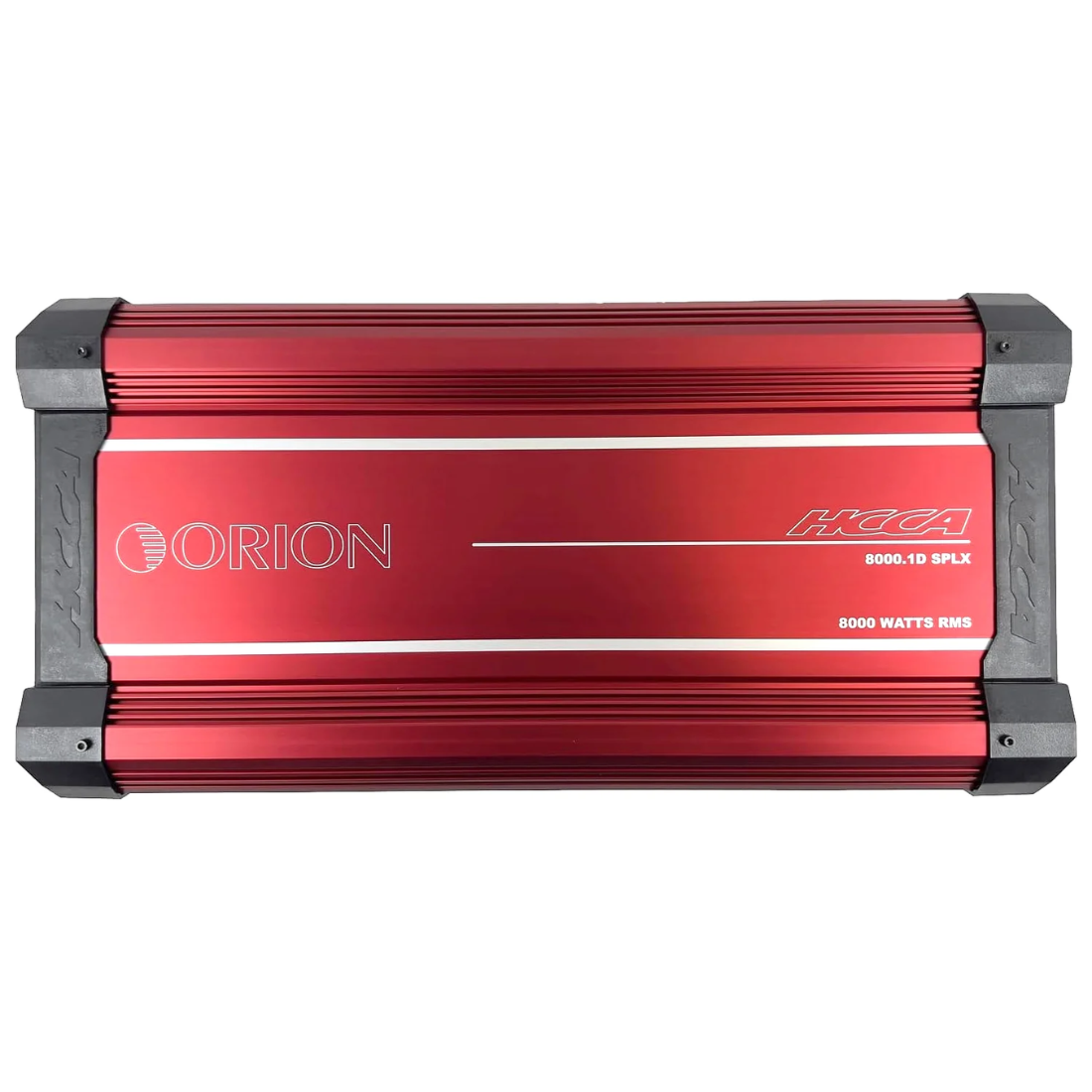

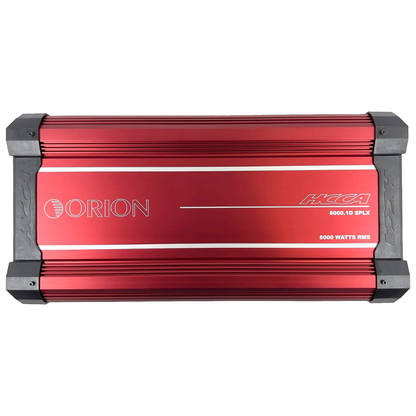

Orion HCCA8000.1DSPLX 1-CH Monoblock 8000W RMS Class-D Car Audio Amplifier

BRAND NEW

ORION HCCA8000.1DSPLX

1-Channel Monoblock 8000 Watts RMS Class-D Car Audio Amplifier

Key Features:

• Class D Amplification: Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
• 8000 Watts RMS: Immerse yourself in a realm of unmatchable audio power with 8000 Watts RMS, delivering commanding and precise sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included

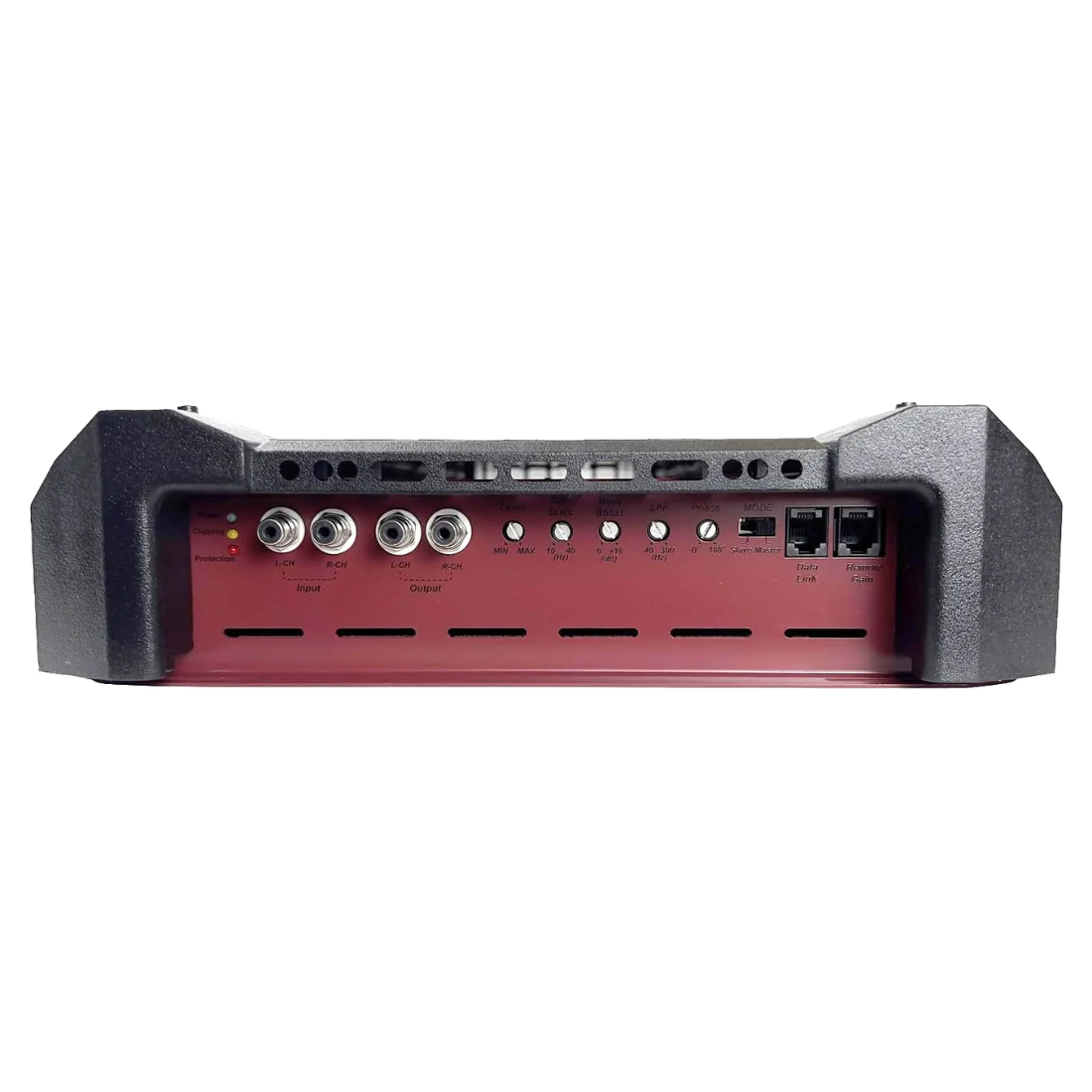

• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 2900W
• RMS Power @ 2 Ohms @ 0.5% THD+N: 5000W
• RMS Power @ 1 Ohm @ 0.5% THD+N: 8000W
• Linked with identical Amplifier
• RMS Power @ 2 Ohms @ 0.5% THD+N: 17000W

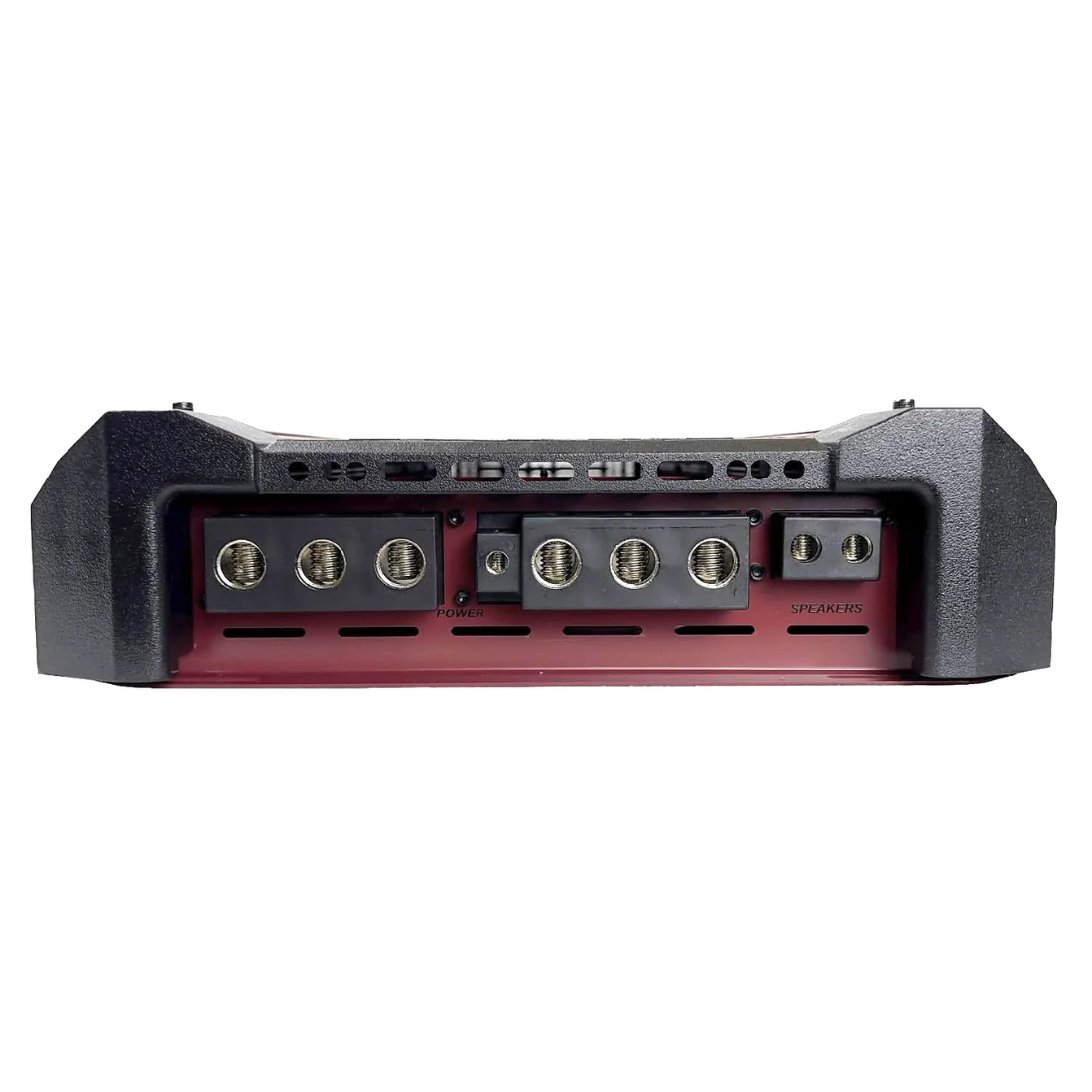

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 3 x 0 AWG.
• Negative Terminals: 3 x 0 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

Specifications:

• Frequency Response: 15Hz - 250Hz
• Low-Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal-to-Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 750A recommended (not included)
• Dimensions (L x W x H): 24.02" x 11.89" x 3.15" (610x302x80mm)
