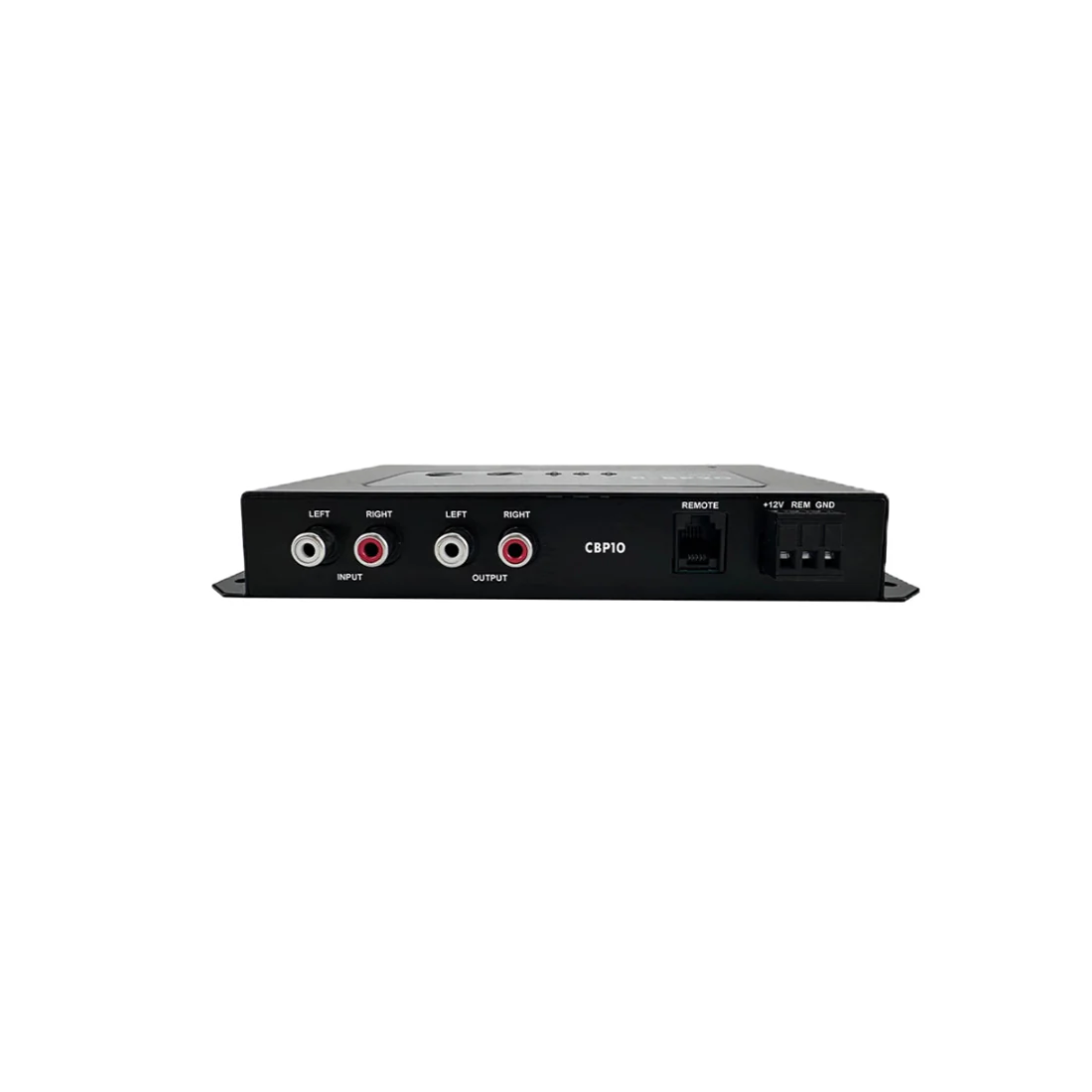

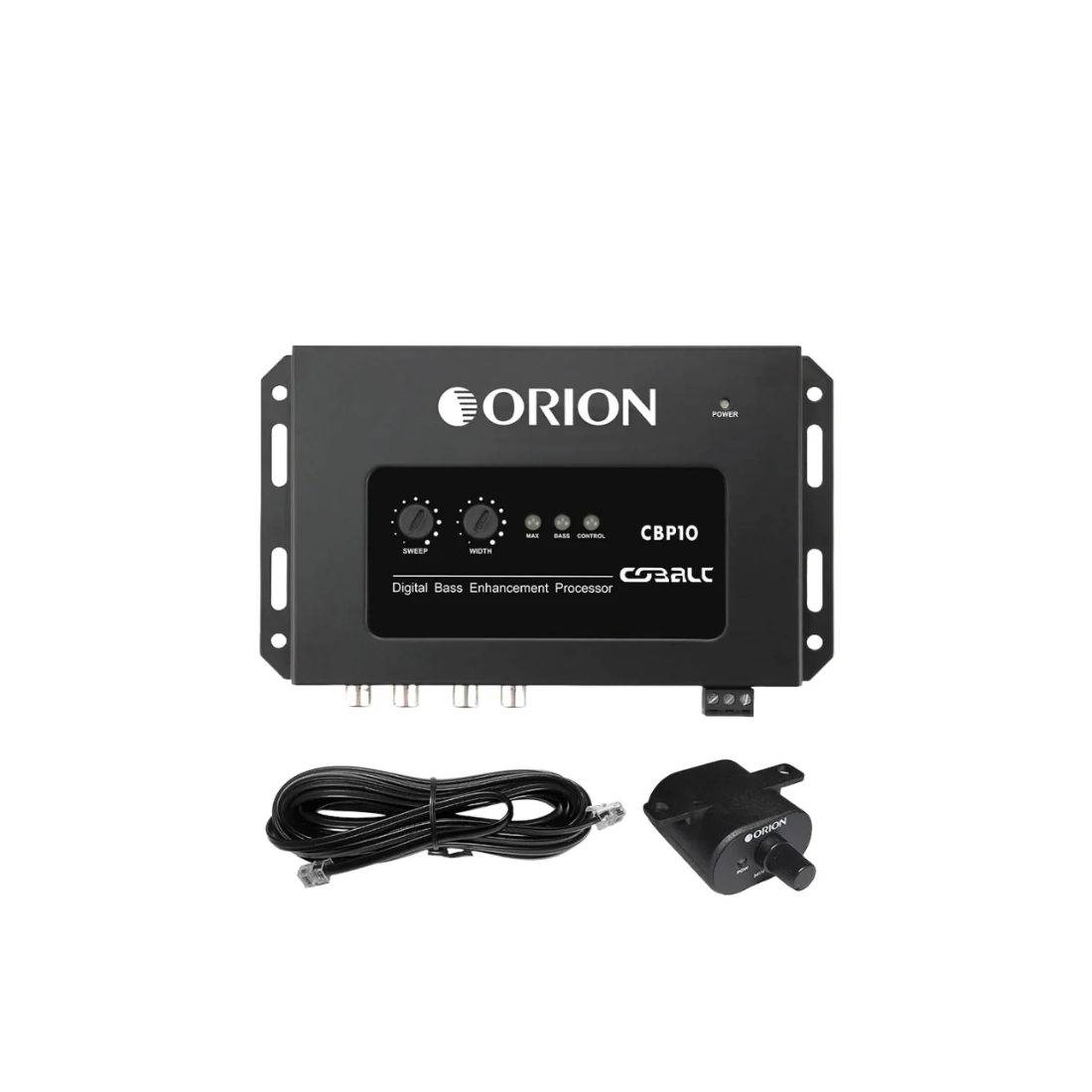

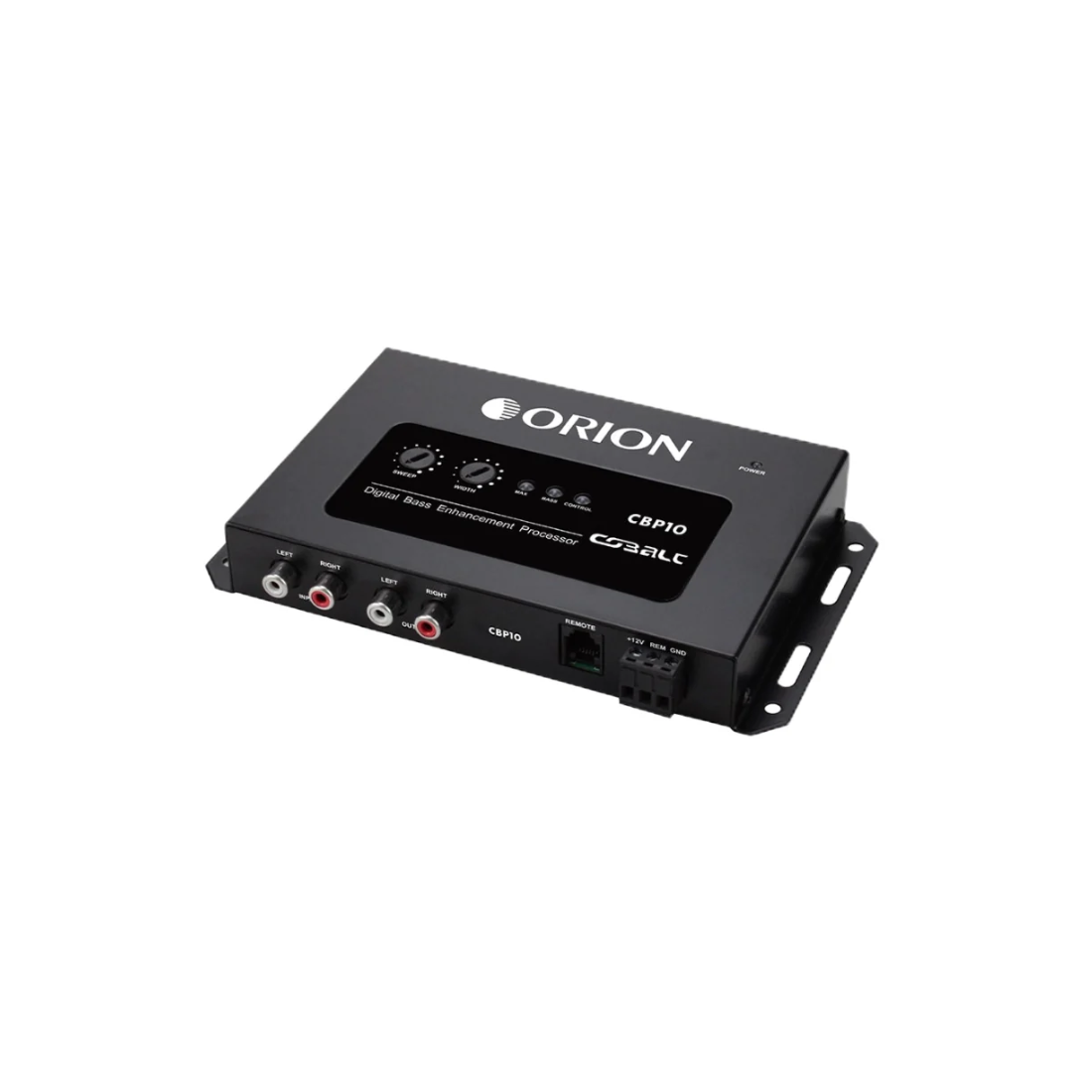

Orion CBP10 Digital Bass Enhancement Processor w/ Bass Restoration & 10V Output
Orion CBP10 Digital Bass Enhancement Processor w/ Bass Restoration & 10V Output
Regular price
$69.95 USD
Regular price
Sale price
$69.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product details
BRAND NEW
ORION CBP10
Digital Bass Processor with Bass Restoration & 10V Output
Key Features:
- Digital Bass Enhancement Processor: Restores low-frequency information lost in compressed or factory audio signals, delivering deeper, tighter, and more impactful bass.
- Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to restore or boost.
- Width Bandwidth Control: Allows precise adjustment of the bass processing range for either wide low-frequency enhancement or tighter, more focused bass response.
- Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier's input sensitivity and system configuration.
- High Signal-to-Noise Performance: Provides a clean audio signal with a signal-to-noise ratio greater than 110dB for minimal background noise.
- Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion at 2V output.
- Balanced / Unbalanced Input Options: Allows compatibility with both aftermarket head units and factory audio systems.
- Ground Isolation Control: Helps eliminate alternator whine and system noise using selectable grounding modes.
- Remote Bass Control Support: Includes a remote port that allows real-time bass adjustment directly from the driverβs seat.
Specifications:
- Power Supply: 6.5V β 18V
- Maximum Input Level: 10V
- Maximum Output Level: 10.5V
- Input Sensitivity: 10.7V
- Input Impedance: >50K Ohms
- Output Impedance: 100 Ohms
- EQ Boost / Cut: 15 dB
- Signal-to-Noise Ratio: >110 dB
- THD @ 2V Output: <0.02%
- Channel Separation: >80 dB
- CMRR: -63 dB Balanced / -29 dB Unbalanced
- Frequency Response: 10 Hz β 30 kHz
- Subsonic Filter: 31 Hz β 71 Hz
- Current Draw: 180 mA
- Interchannel Gain Tracking: 0.1 dB
- Fuse Rating: 1A
- Dimensions: 7.28β x 4.13β x 1.02β
