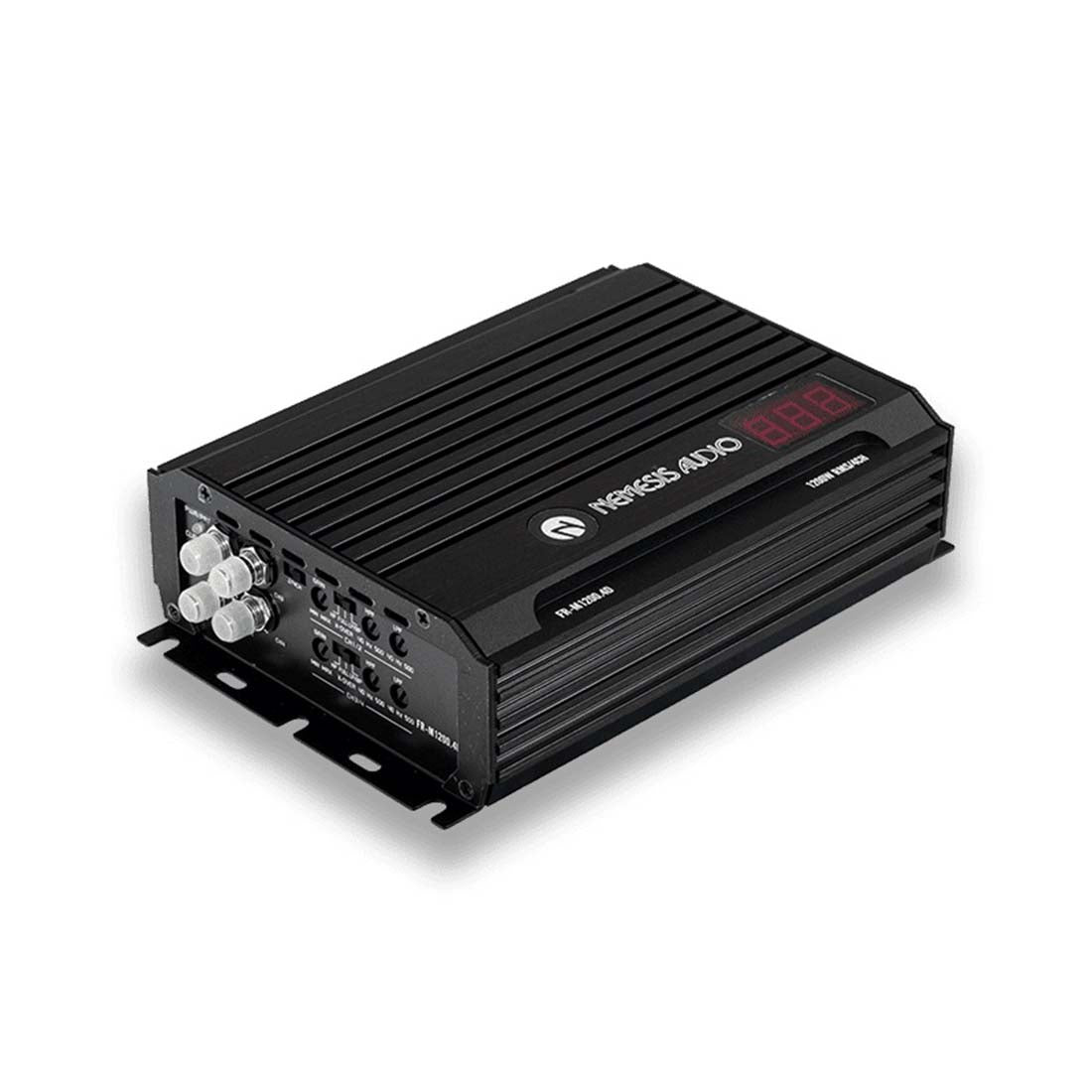

Nemesis Audio FR-M1200.4D 4-Channel 1200W RMS Full-Range Class-D Car Amplifier

BRAND NEW

NEMESIS AUDIO FR-M1200.4D

Is a compact, high-performance 4-channel Full-Range Class D amplifier designed to deliver strong power while maintaining a space-saving footprint. With 300W RMS × 4 channels at 2Ω and 600W × 2 bridged at 4Ω, it offers flexible configuration options for high-output speaker systems. The manufacturer confirms the same core power ratings and compact dimensions.

Key Features:

• 4-Channel Full-Range Class D amplifier
• 1200W RMS class power rating
• 300W × 4 RMS @ 2Ω
• 180W × 4 RMS @ 4Ω
• 600W × 2 RMS bridged @ 4Ω
• Wide 10Hz–30kHz frequency response
• Adjustable 40Hz–500Hz crossover
• Front and rear independent crossover controls
• 2CH / 4CH input mode
• >90dB signal-to-noise ratio
• <0.2% THD

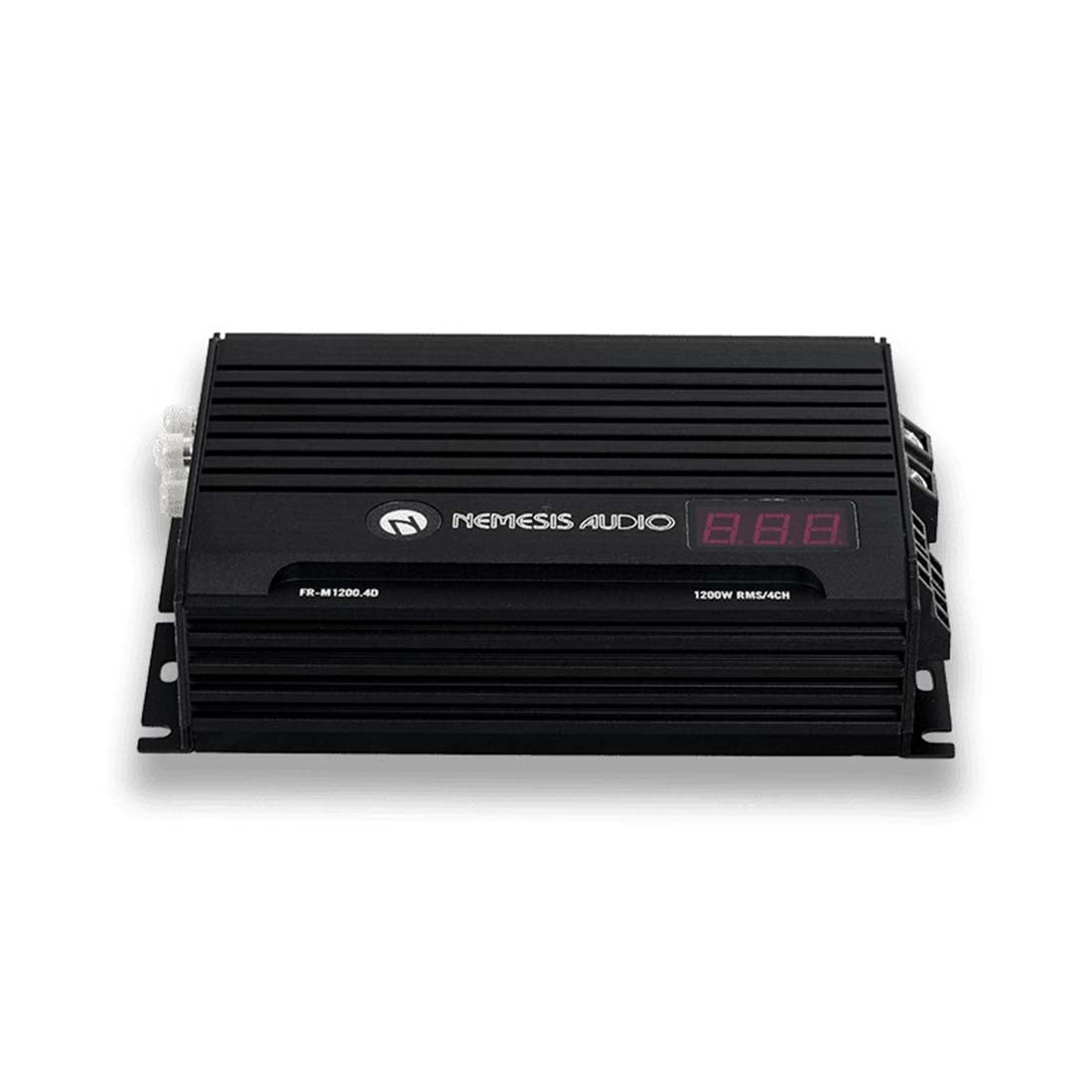

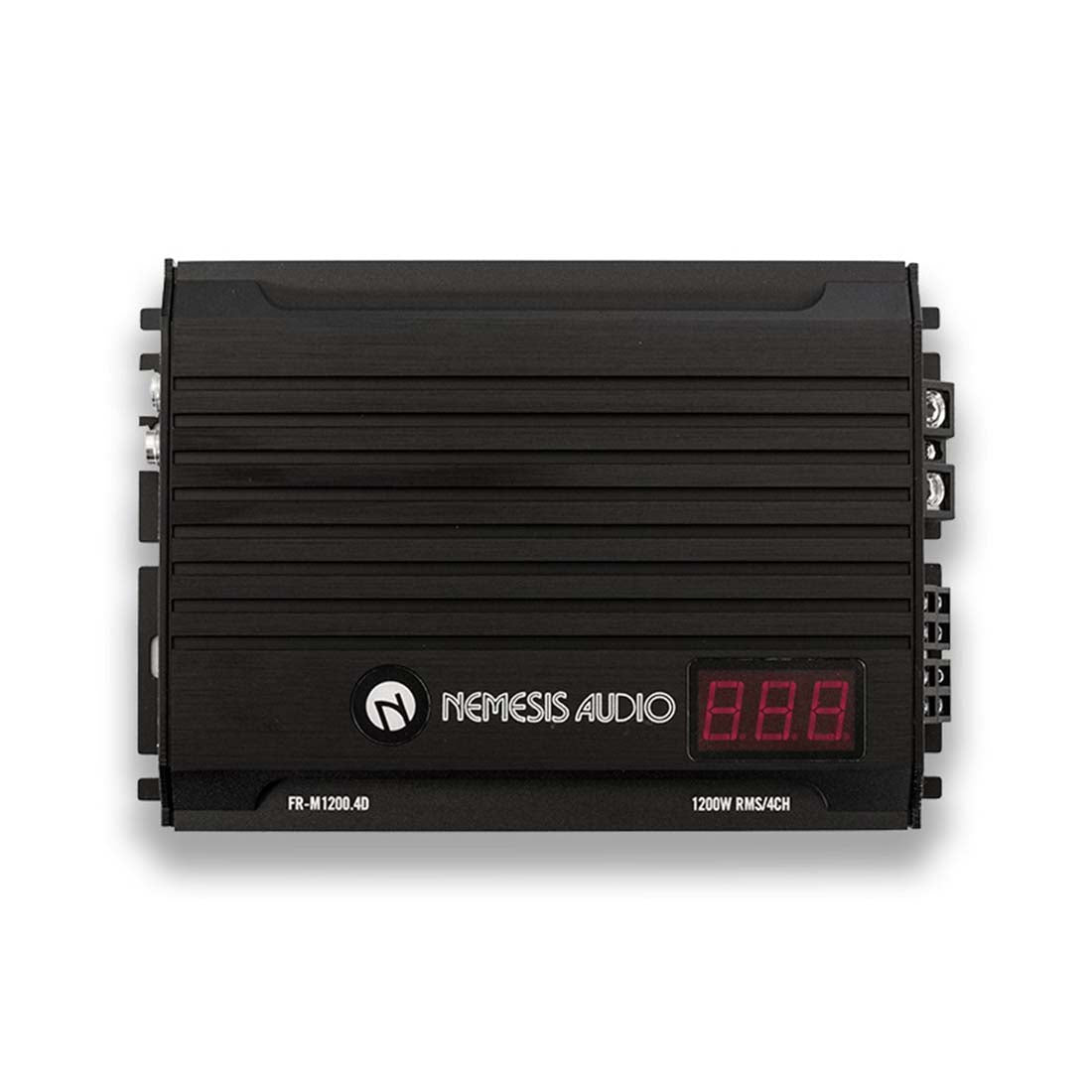

• Compact chassis with integrated digital voltmeter display
• Suitable for high-output multi-speaker installations

Specifications:

• Model: FR-M1200.4D
• Amplifier Type: Full-Range Class D
• Channels: 4 Channel
• Rated Output @ 2Ω: 300W × 4 RMS
• Rated Output @ 4Ω: 180W × 4 RMS
• Bridged Output @ 4Ω: 600W × 2 RMS
• Test Voltage: 14.4V
• Rated Distortion: <1% THD
• Frequency Response: 10Hz – 30kHz
• LPF Crossover Range: 40Hz – 500Hz
• Input Sensitivity: 0.36V – 7.5V
• Signal-to-Noise Ratio: >90dB
• Total Harmonic Distortion: <0.2%

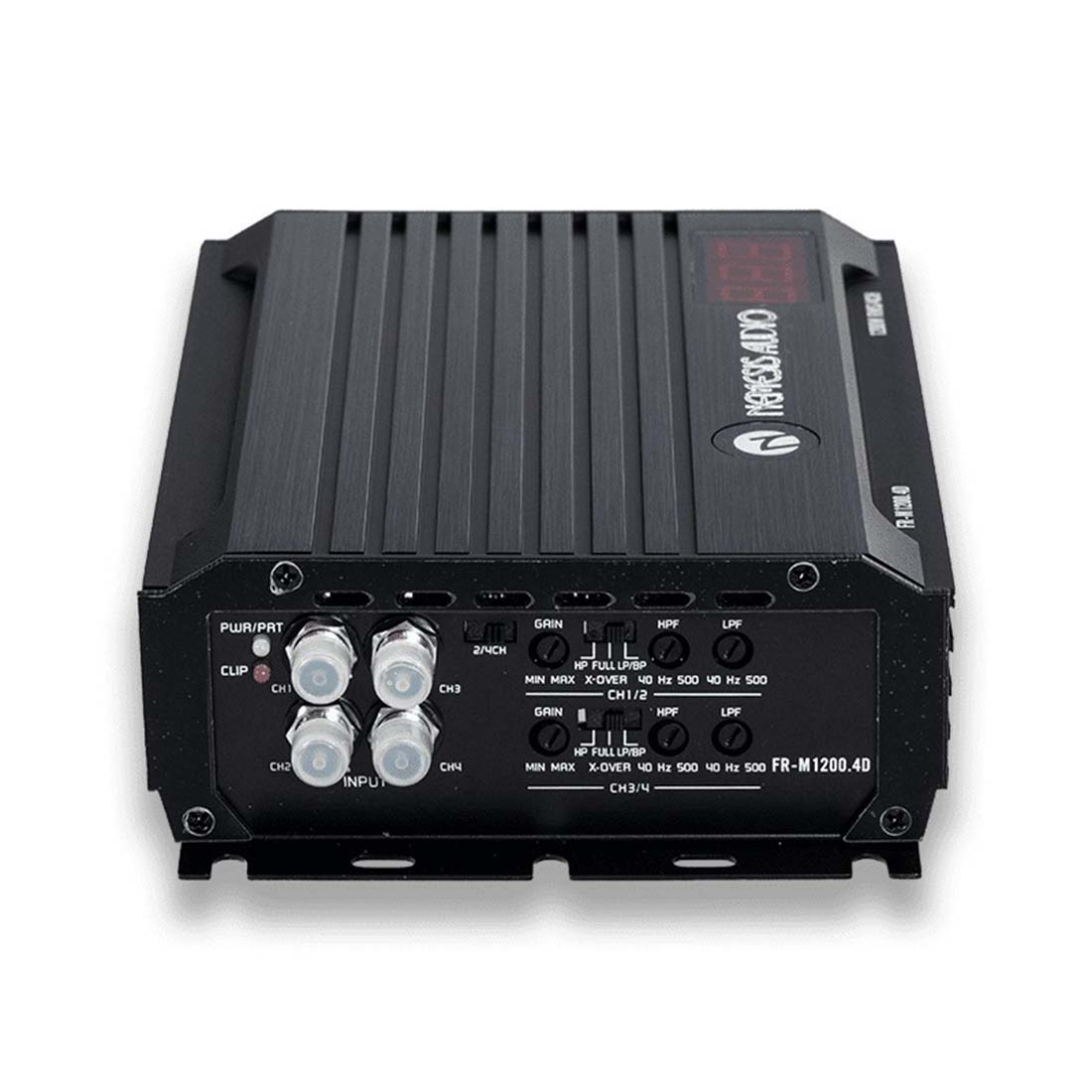

Crossover & Audio Controls:

• Front Crossover: HPF / FULL / LPF
• Rear Crossover: HPF / FULL / LPF
• Crossover Frequency: 40Hz – 500Hz
• Gain Control: MIN – MAX
• Input Mode: 2CH / 4CH
• Input Sensitivity: 0.36V – 7.5V
• Frequency Response: 10Hz – 30kHz

Dimensions: (L × W × H)

• 209 × 140 × 55mm
• 8.23 × 5.51 × 2.17 inches
