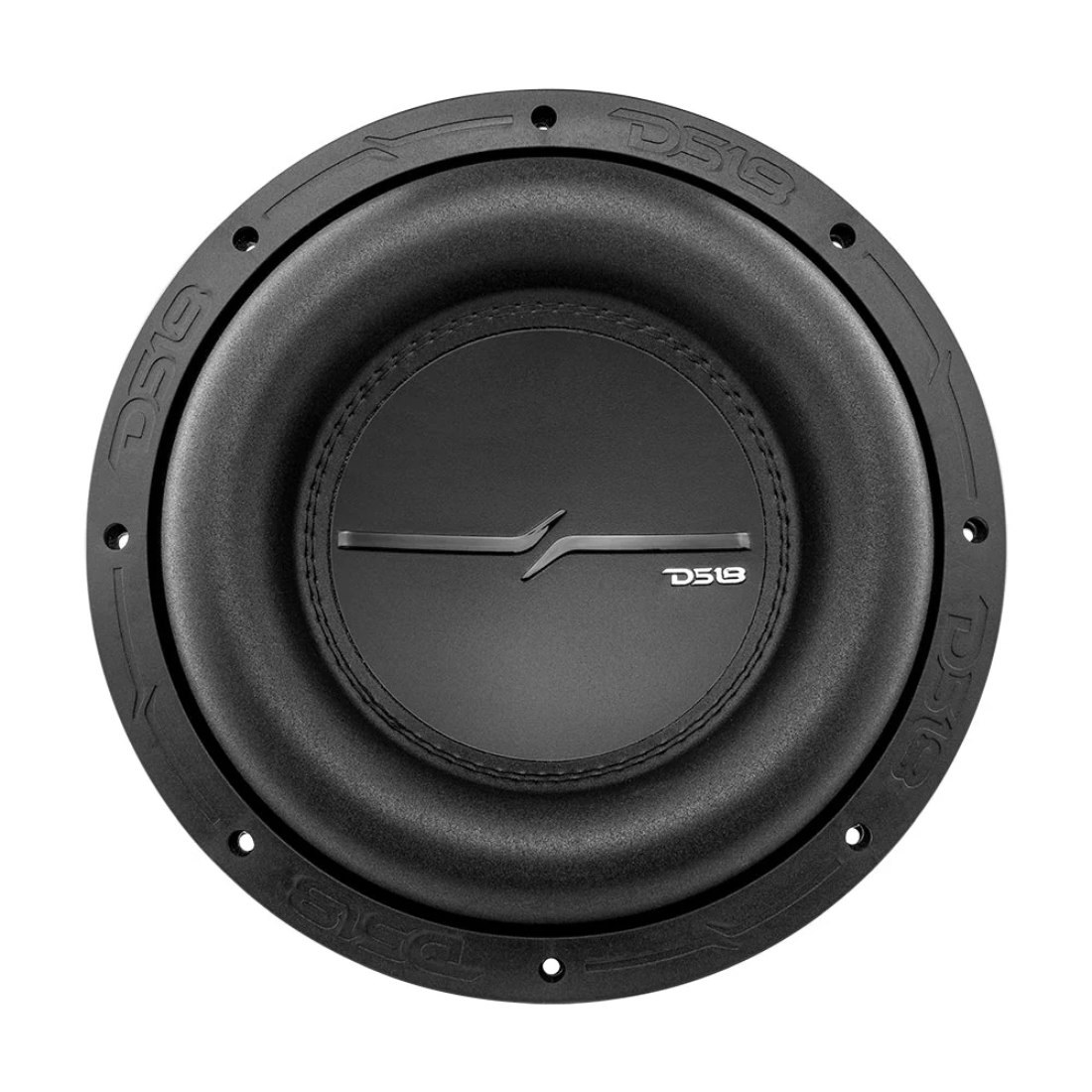

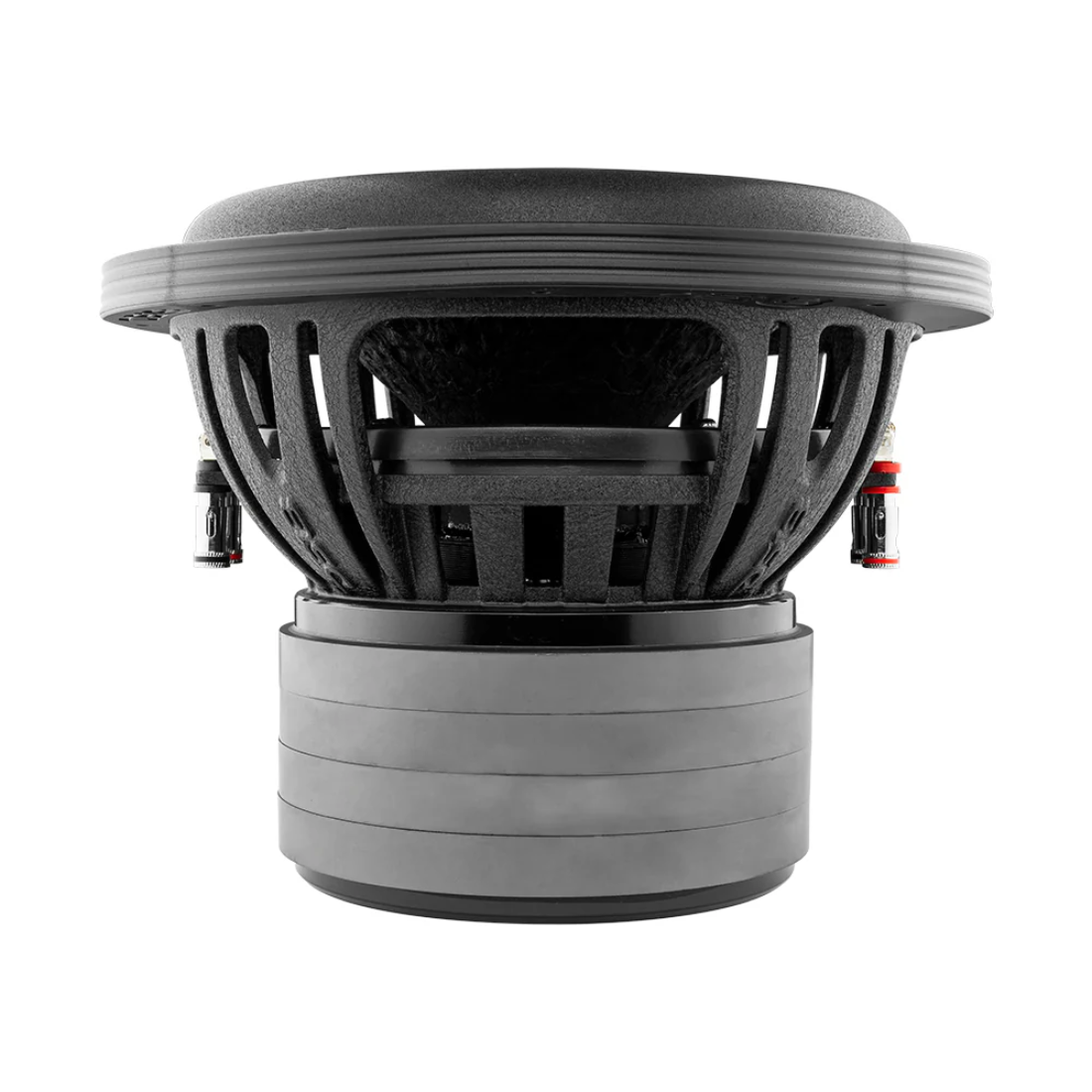

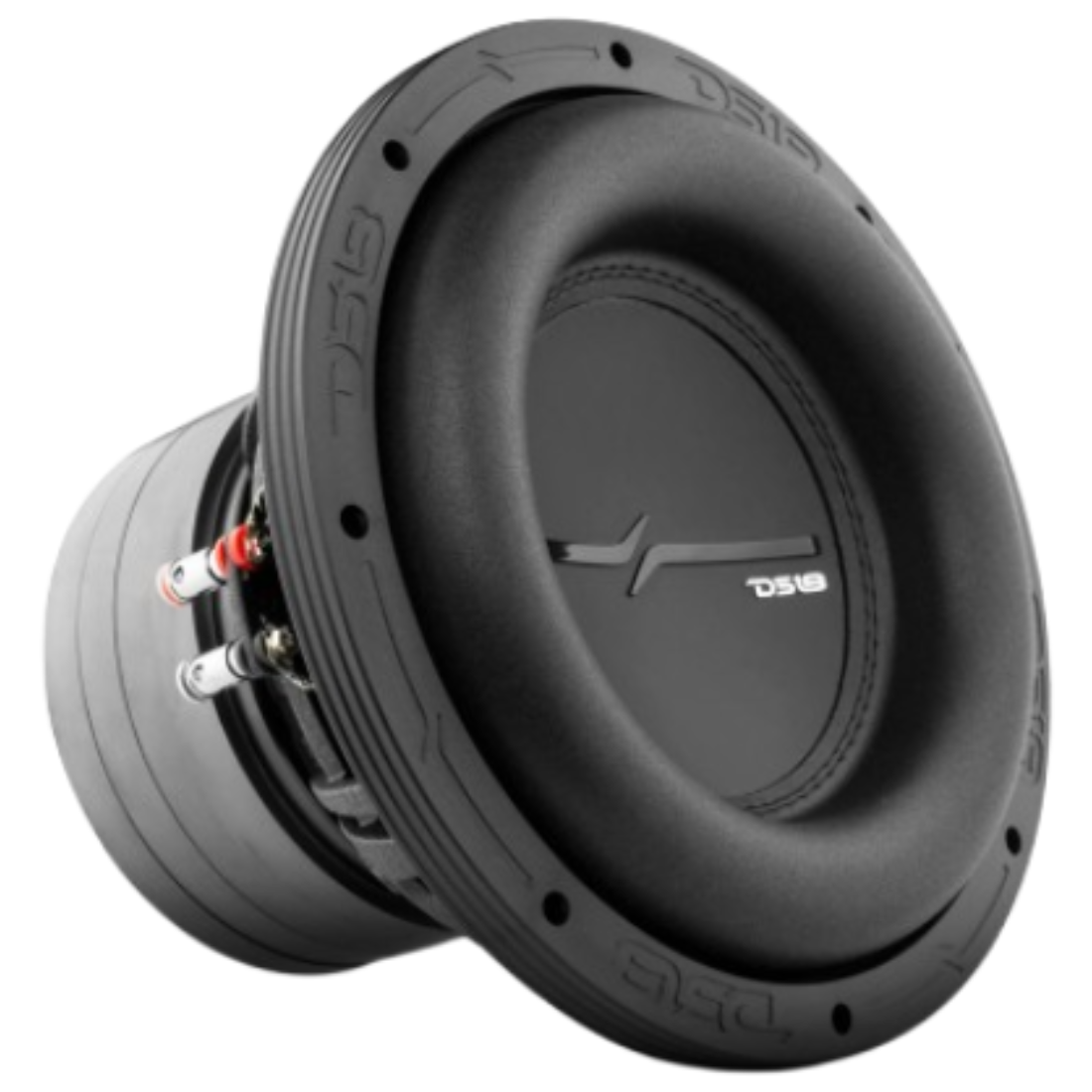

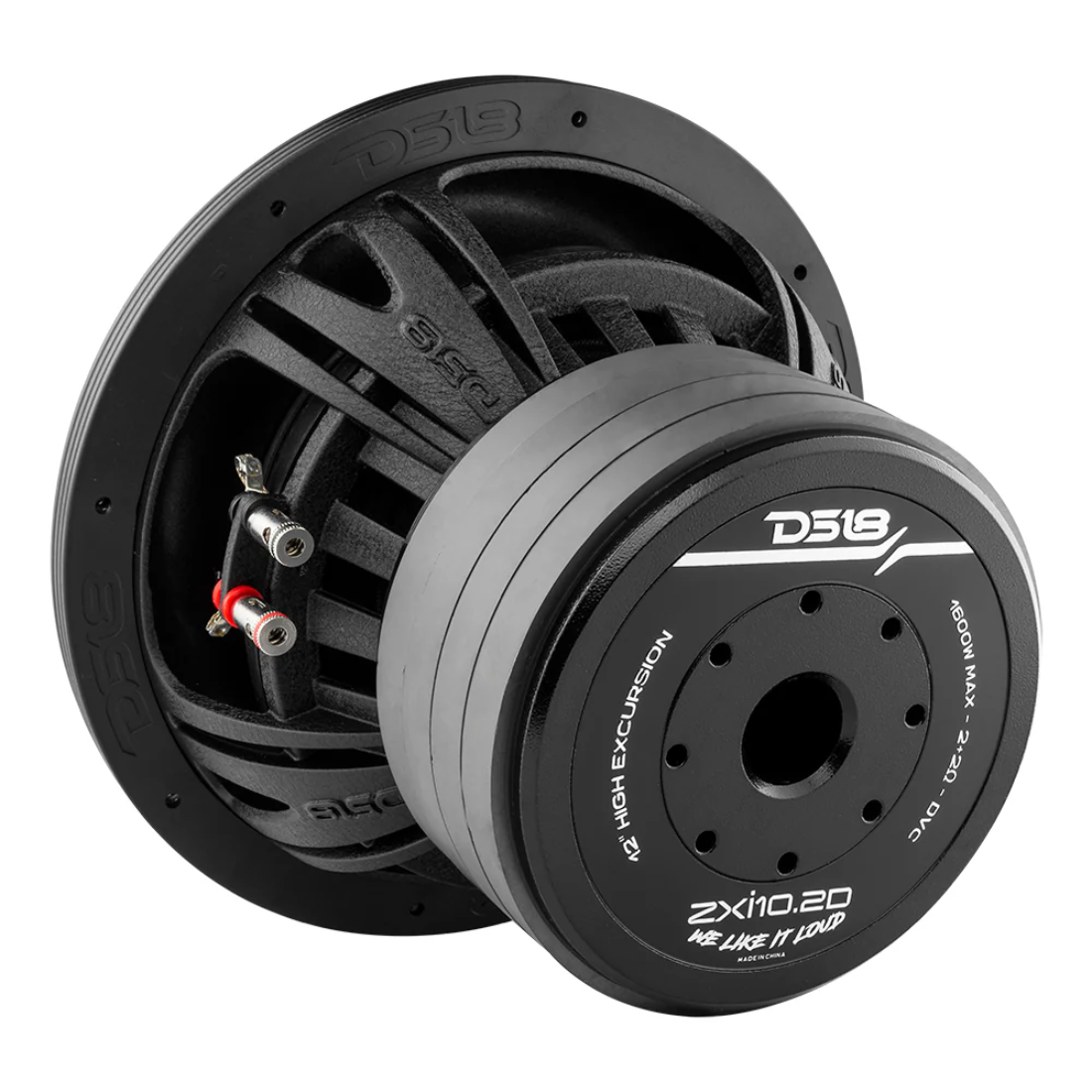

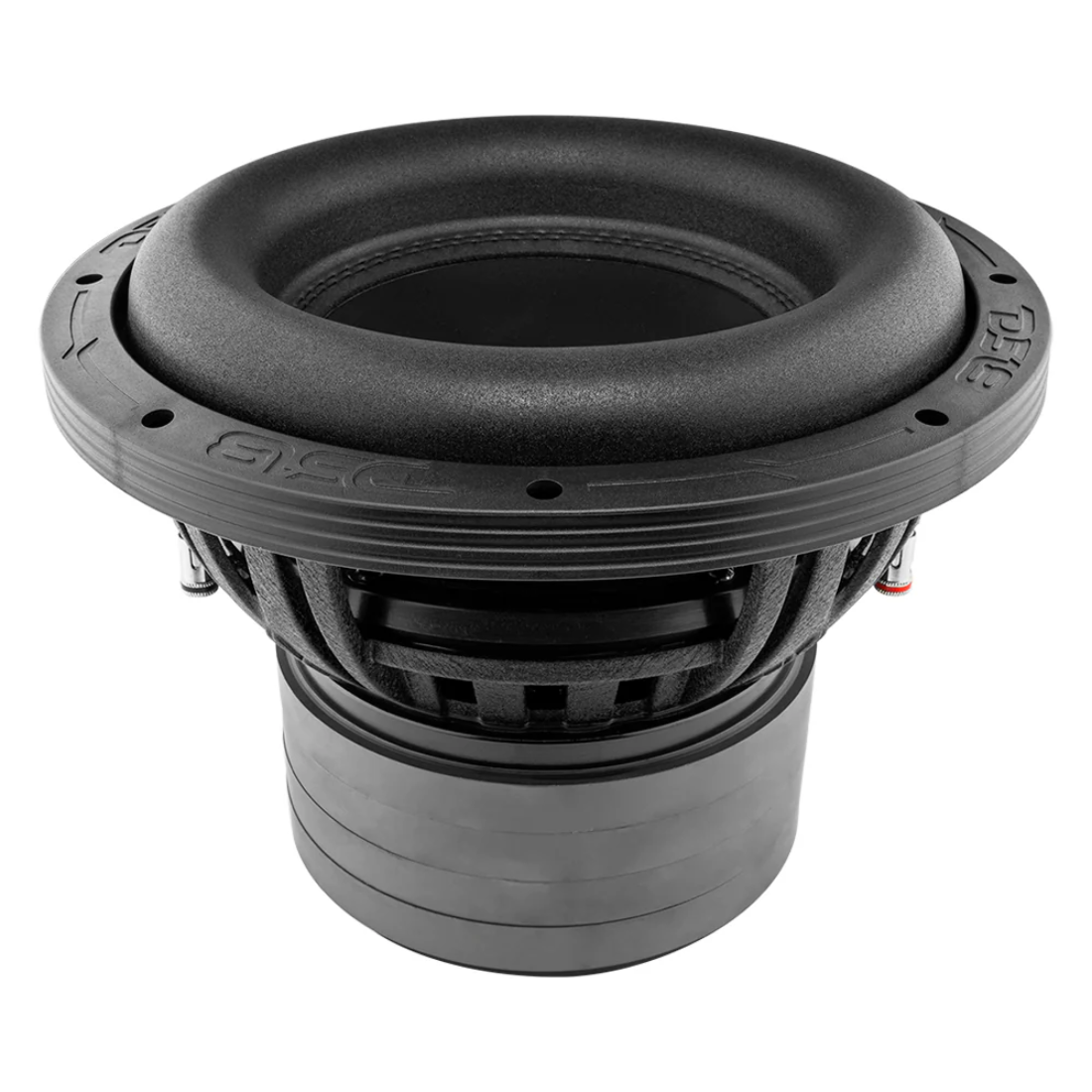

DS18 ZXI10.2D 10" 1600W Max Dual 2-Ohm DVC Quad Stacked Car Audio Subwoofer

BRAND NEW

DS18 ZXI10.2D

10" 1600W Max Dual 2-Ohm DVC Quad Stacked Car Audio Subwoofer

Key Features:

• 10" High Excursion Subwoofer
• MAX Power: 1600 Watts
• RMS Power: 800 Watts
• Impedance: 2-Ohm 2.5" DVC
• Quad Stacked Ferrite Magnet
• 86dB

Specifications:

• SKU: ZXI10.2D
• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 2 + 2 ohms
• RMS Power Handling: 800W
• Maximum Power Handling: 1600W
• Sensitivity (1w/1m): 86dB
• Frequency Response: 20-900Hz
• Recommended Lo Pass Crossover: 90Hz

Motor Features:

• Voice Coil Diameter: 2.5" / 63.5mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black Sandblasted
• Magnet Material: Ferrite
• Magnet Weight: 196 Oz (4 x 49 oz)
• Displacement Volume: 2.23L / 0.078ft3

Thiele & Small Parameters:

• Equivalent Volume Vas: 18.25L / 0.644ft3
• Free Air Resonance Fs: 29Hz
• Mechanical Factor Qms: 6.825
• Electrical Factor Qes: 0.493
• Total Factor Qts: 0.457
• Moving Mass Mms: 265.089g
• Compliance Cms: 0.142mm/N
• Bl Factor Bl: 25.146
• Voice Coil Inductance Le: 51.23 mH
• Diaphragm Area Sd: 330.06cm2
• DC Resistance Re: 2.0+2.0 ohms
• Efficiency Bandwidth Product EBP: 58.8

Recommended Enclosures:

• Sealed Internal Volume: 14.2L / 0.5ft3
• Sealed Box Output Response F3: 41.5Hz
• Ported Internal Volume: 35.4L / 1.25ft3
• Port Size *Square (W x H x Long): 1.16" x 10.31 x 24.49" / 29.5 x 262 x 622.1mm
• Port Tuning Frequency FB: 30Hz
• Ported Box Output Response F3: 24Hz

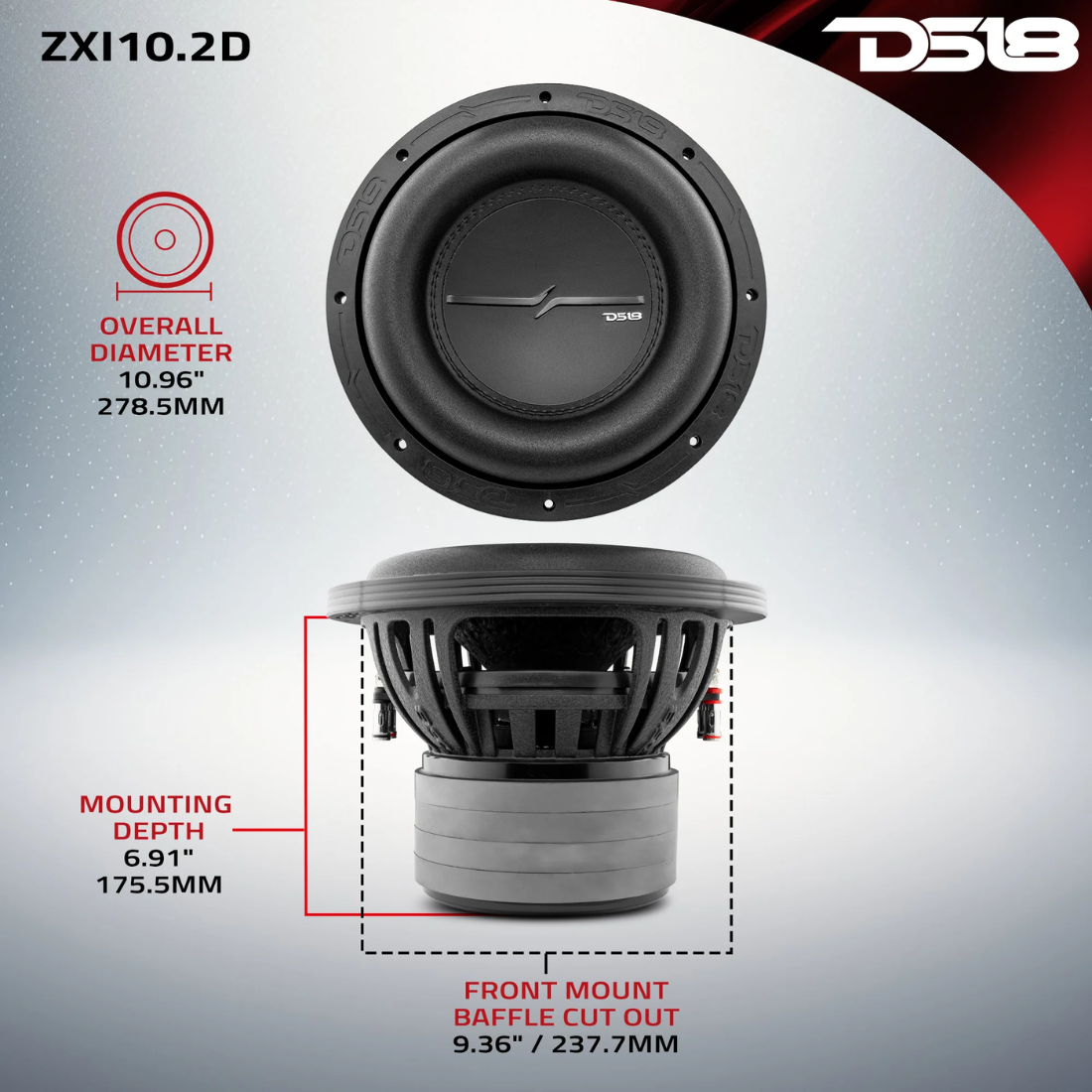

Measurements:

• Overall Diameter: 10.96" / 278.5mm
• Overall Depth: 8.34" / 212mm
• Front Mount Baffle Cutout: 9.36" / 237.7mm
• Mounting Depth: 6.91" / 175.5mm
• Motor Diameter: 6.69" / 170mm
• Gross Single Unit Weight: 26.5
• Dimensions W x L x H: 12 x 12 x 9.5
