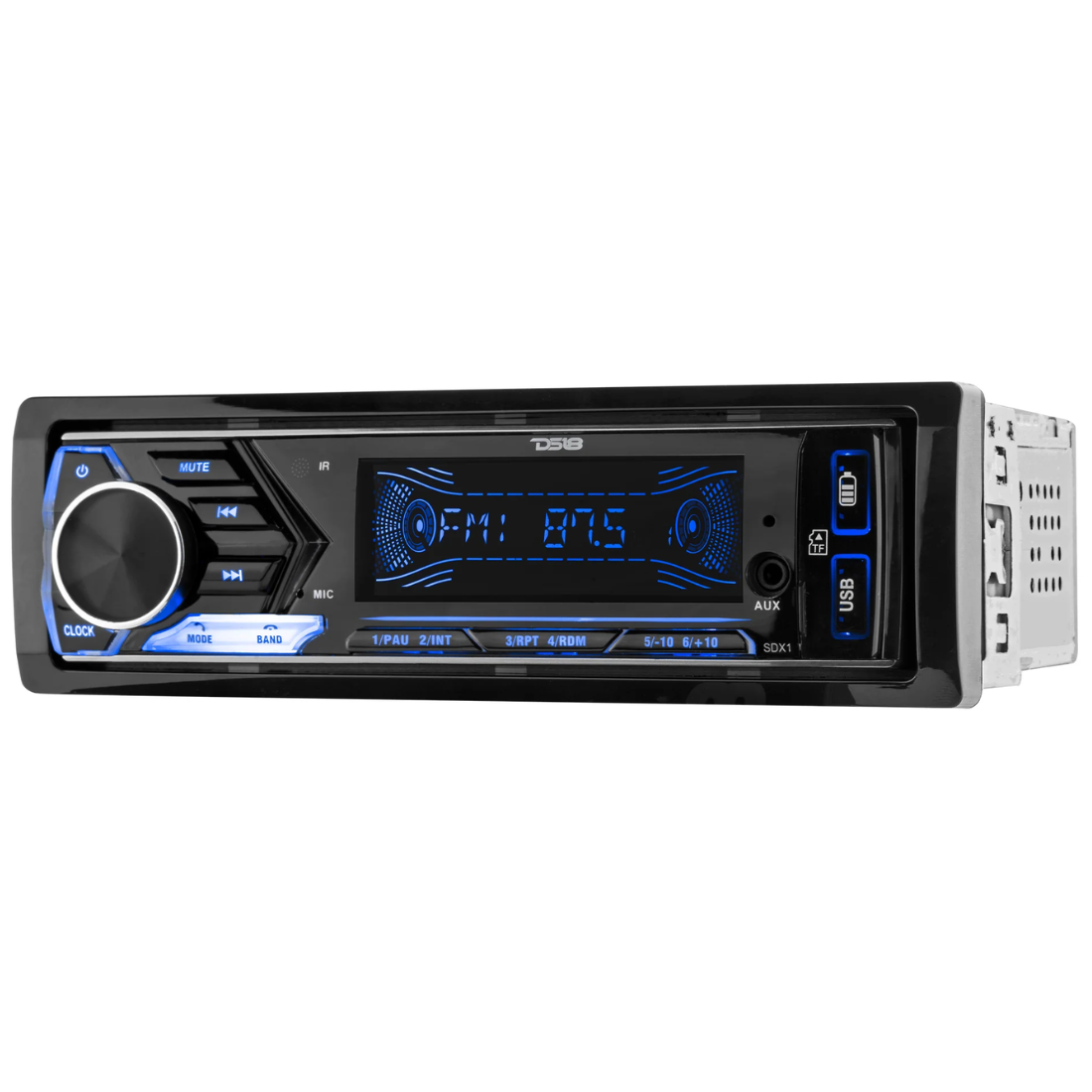

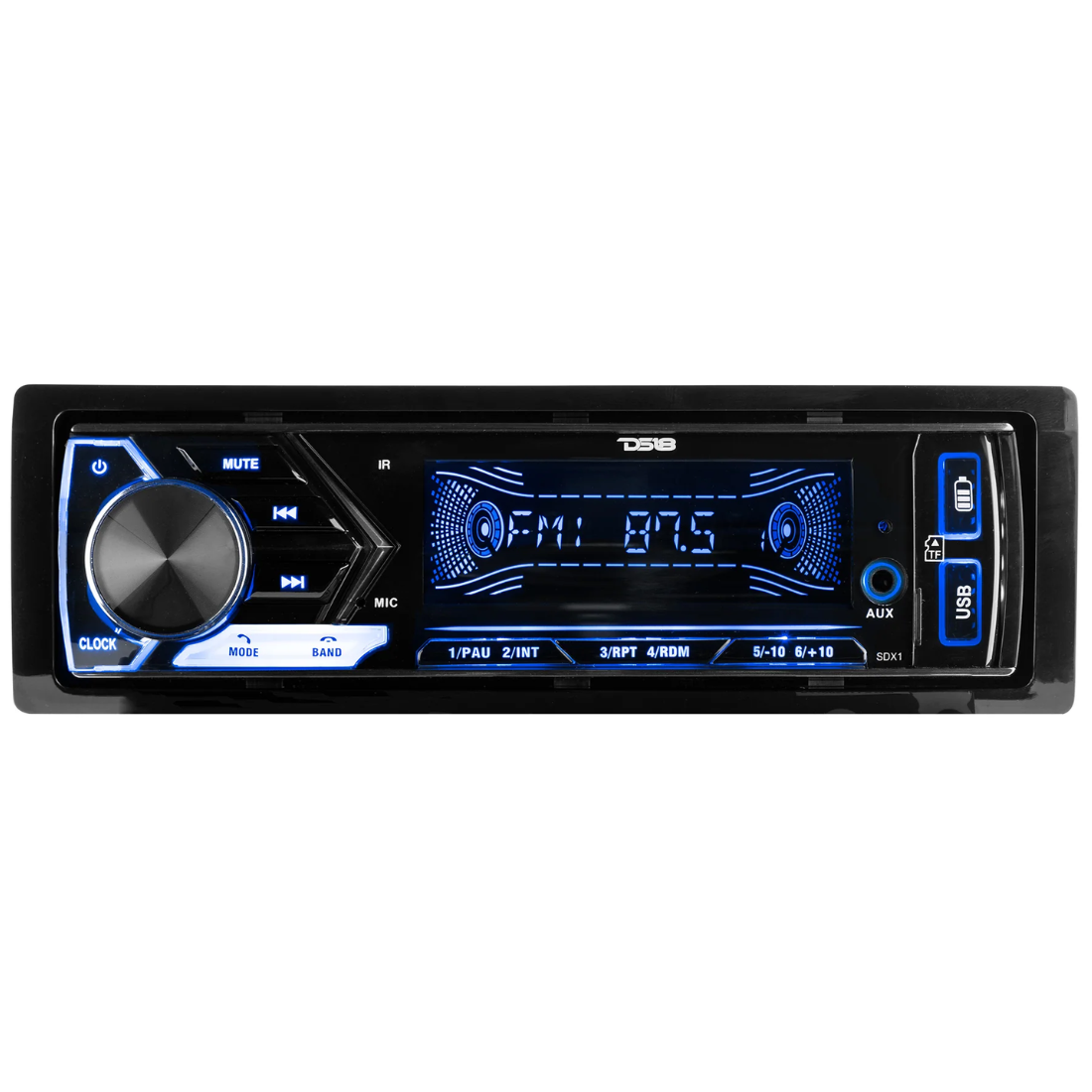

DS18 SDX1 1-DIN In-Dash Mechless Digital Media Bluetooth Receiver w/ Dual USB

BRAND NEW

DS18 SDX1

Single-DIN In-Dash Mechless Digital Media Bluetooth Receiver w/ Dual USB

Key Features:

• Digital Media Single Din Receiver
• Mech-Less
• BT ~ SD ~ USB ~ AUX ~ AM/FM
• 7 Selectable Colors

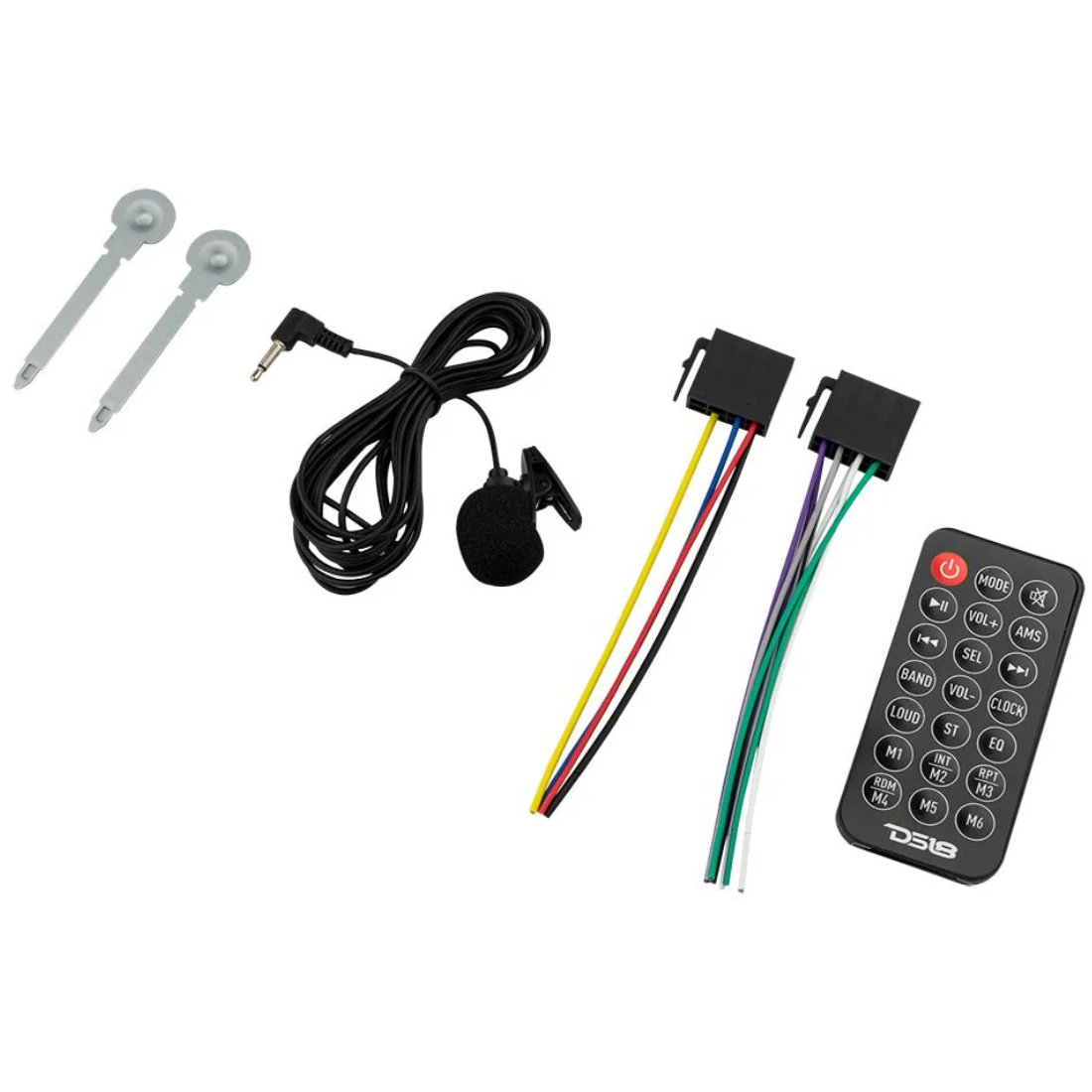

• Remote Control
• EQ and Subwoofer Control

Specifications:

• SKU: SDX1
• Rated power source: 14.4V DC (11V to 16V operation)
• Maximum Current Consumption: 10 Amp

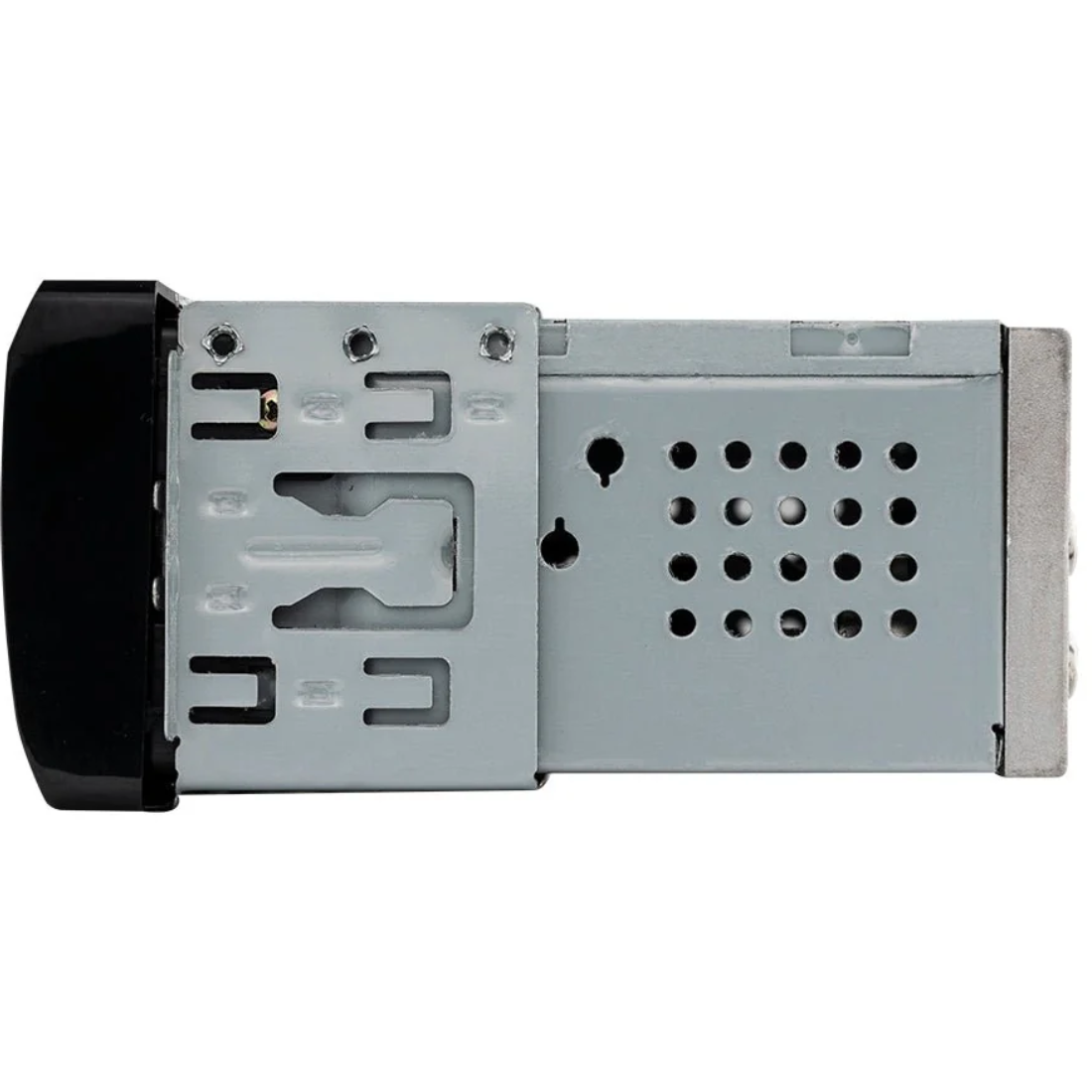

• Dimensions (W x H x D): - Chassis: 178mm x 50mm x 150mm - Bezel Frame: 188mm x 58mm x 30mm
• Weight: 15.9 Oz / 452 grams

Display:

• Screen Size: 3" / 75 x 25mm
• Display Type: VA LCD
• Temperature Operation: -20C to +60C (14F to 140F)

Audio:

• Maximum Power Output: 50W X 4 Ch @ 4 ohm (14.4v)
• Continuos Power Output: 17W x 4 Ch @ 4 ohm (14.4v)
• Pre-output Level: 7 Volts (14.4V)
• Equalizer: 2 bands (Bass: 60Hz, Treble: 10KHz)
• Gain: +/- 7dB
• Preset EQ: Jazz / Rock / Pop / Classic
• Audio Control: Volume / Balance / Fader / Loudness / Bass / Treble
• Subwoofer Control: Vol (0-20) / Cut (80/120/160 Hz)
• Signal to Noise Ratio: >60dB
• THD: <0.3%
• Frequency Response: 20Hz - 20Khz

Tuner:

• Frequency Range: FM: 87.5 ~ 107.9 KHz
• Presets Memory: 18 Stations
• Region: North America
• Sensitivity Adjustment: LOC / DX & ST / Mono
• Sensitivity: <20dB
• Stereo Separation: >25dB

USB / SD Player:

• Type/Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
• Format Files Supported: MP3, WMA, FLAC, MAV
• Info Display Format: ID3 Tag
• Memory Size Reader: Up to 64 Gb
• Max Current Supply: 1.5 Amp (Charging USB port)

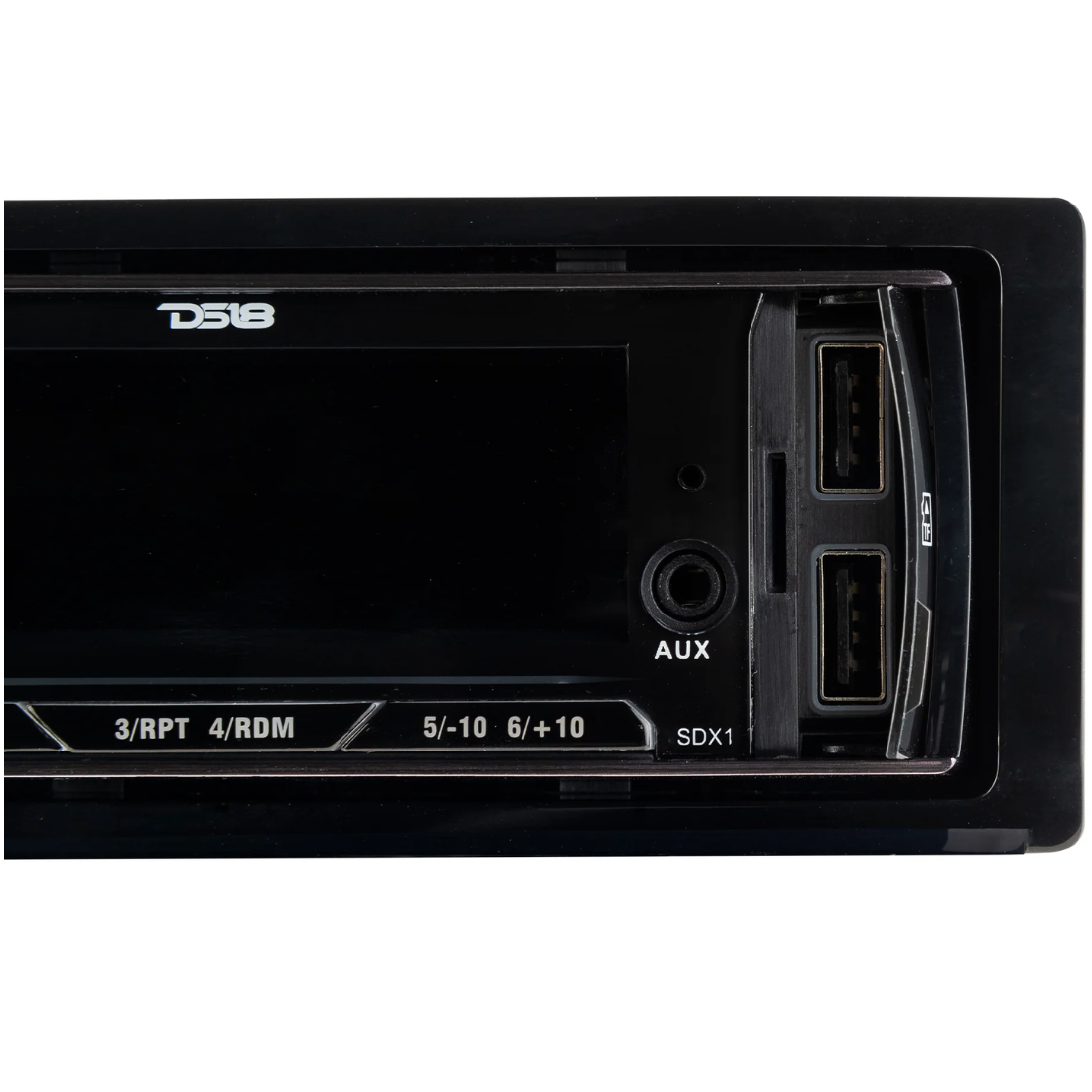

• Number of USB Ports: 2 x Front (1 for Audio / 1 for Charging)
• SD Slot: 1 x Front Micro SD

Connectivity:

• Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
• Audio Protoco: A2DP v1.2 Sink (SNK)
• Aux input: Front 3.5mm Jack Stereo Audio

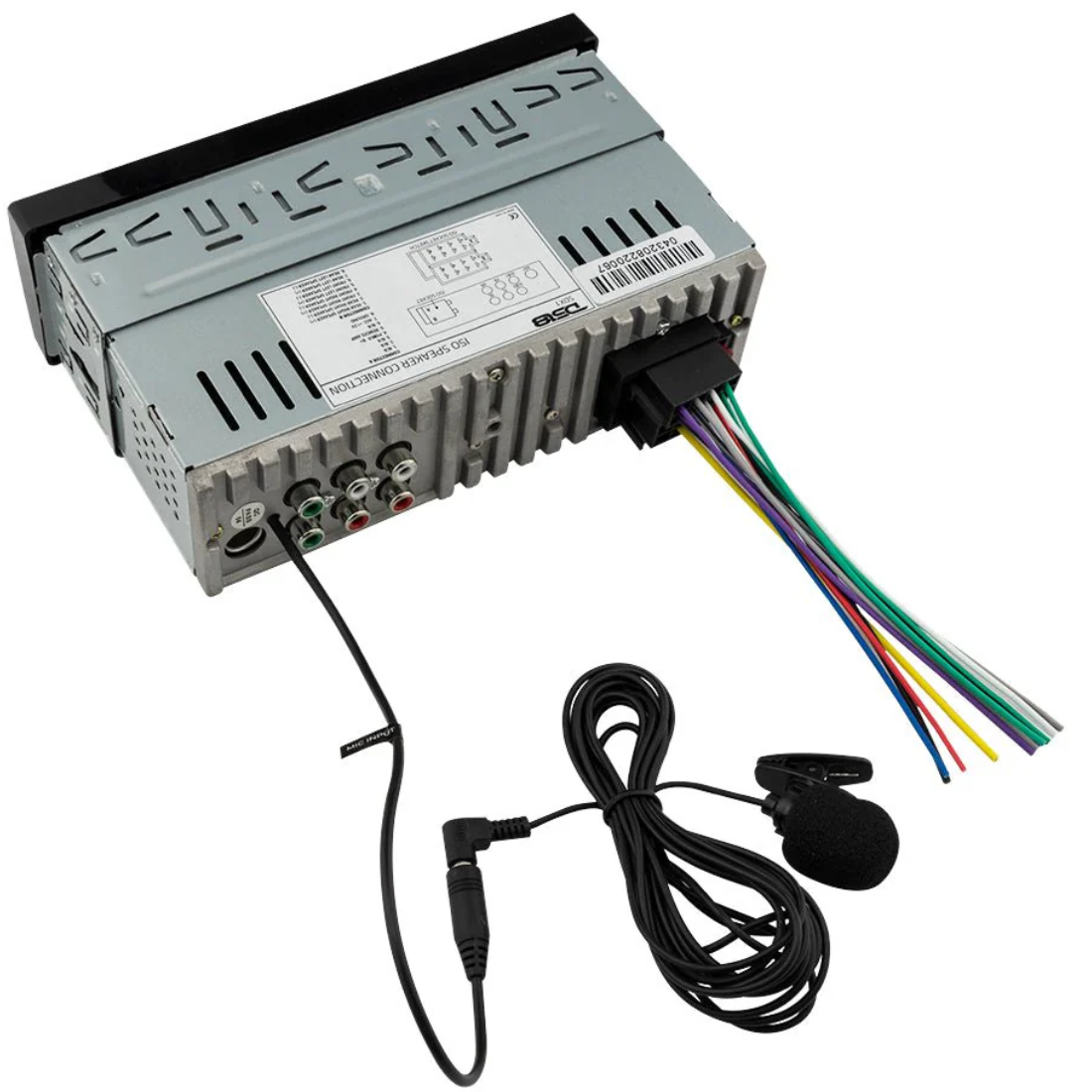

• Microphone: Built-In Microphone on faceplate
• Remote Control: Frontal IR Receptor
