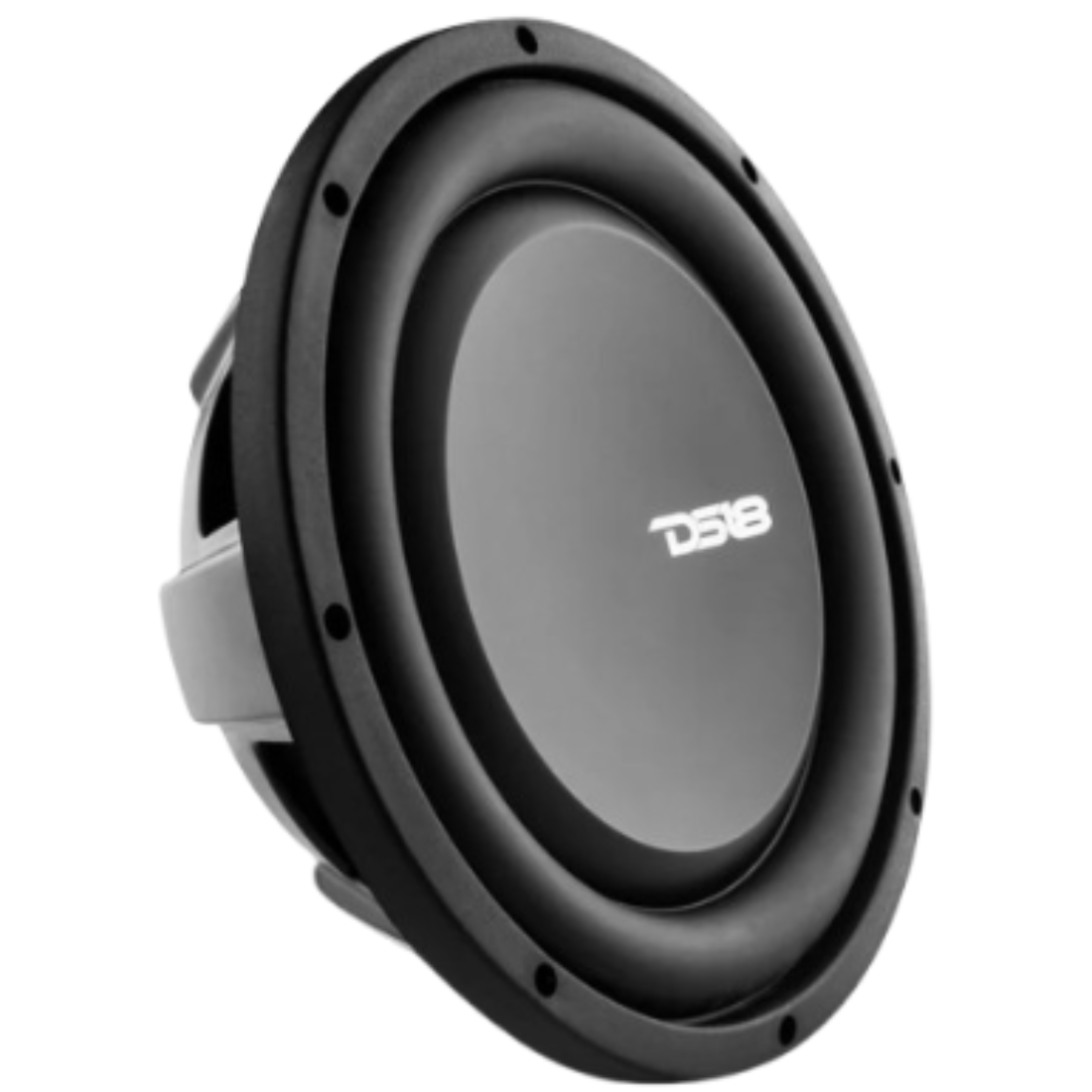

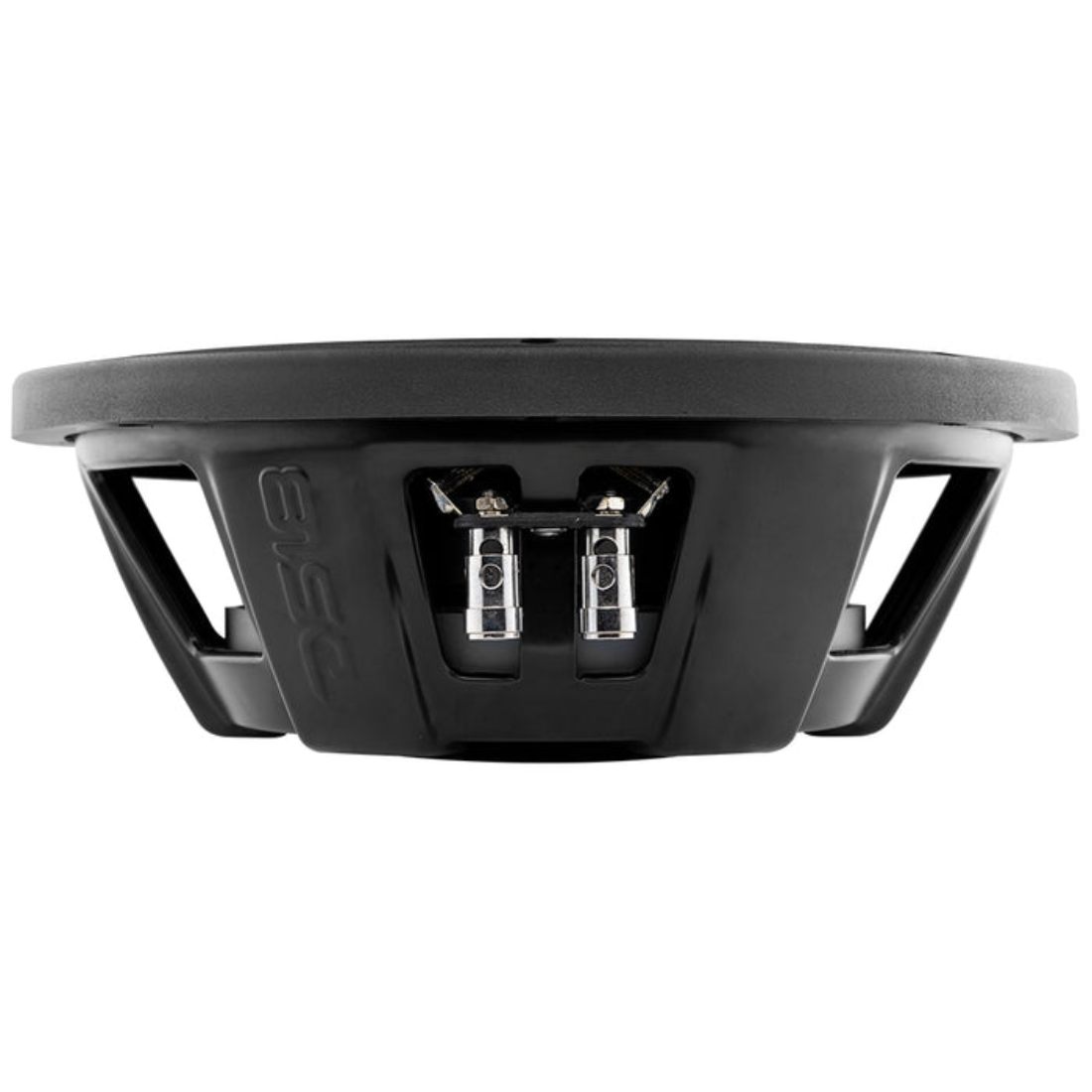

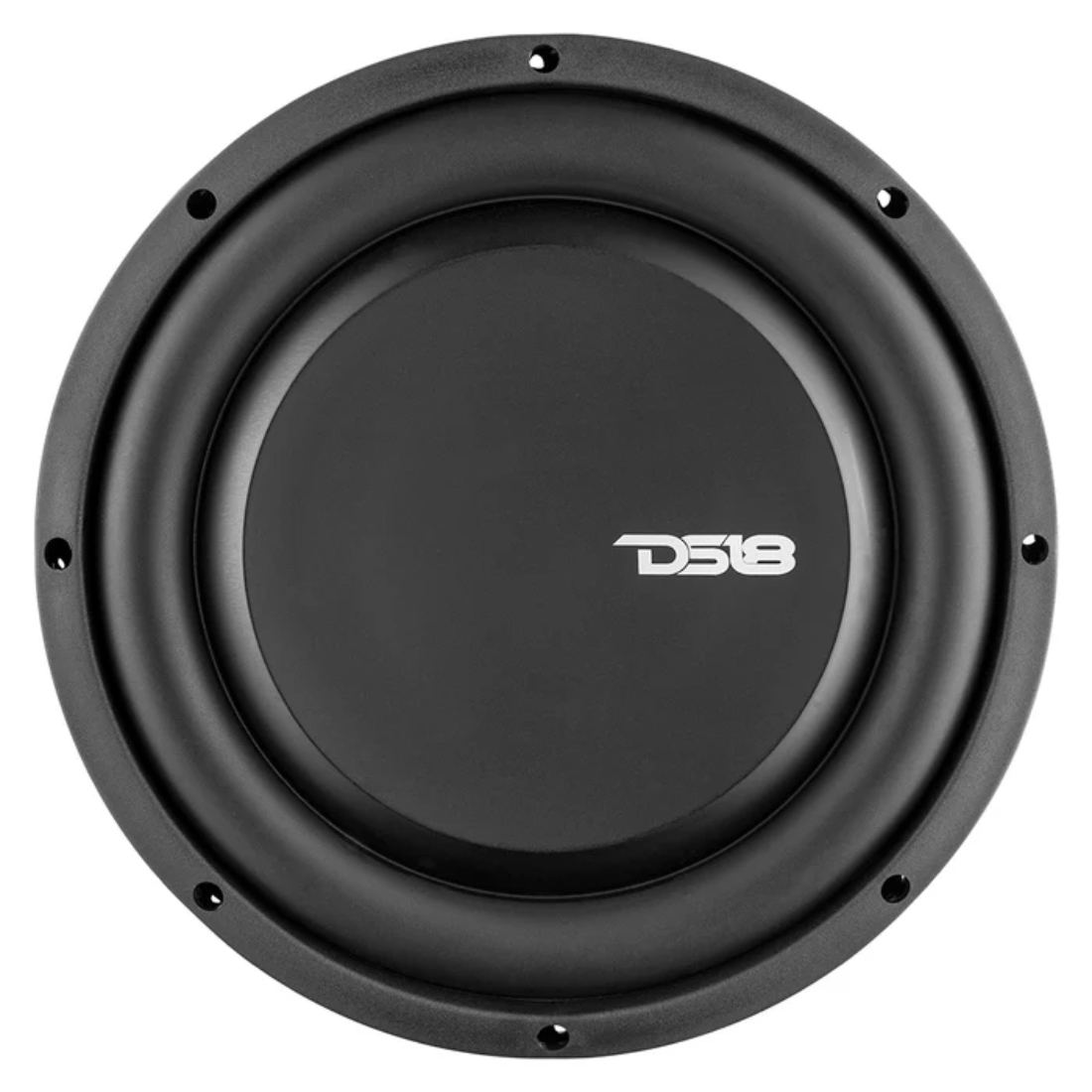

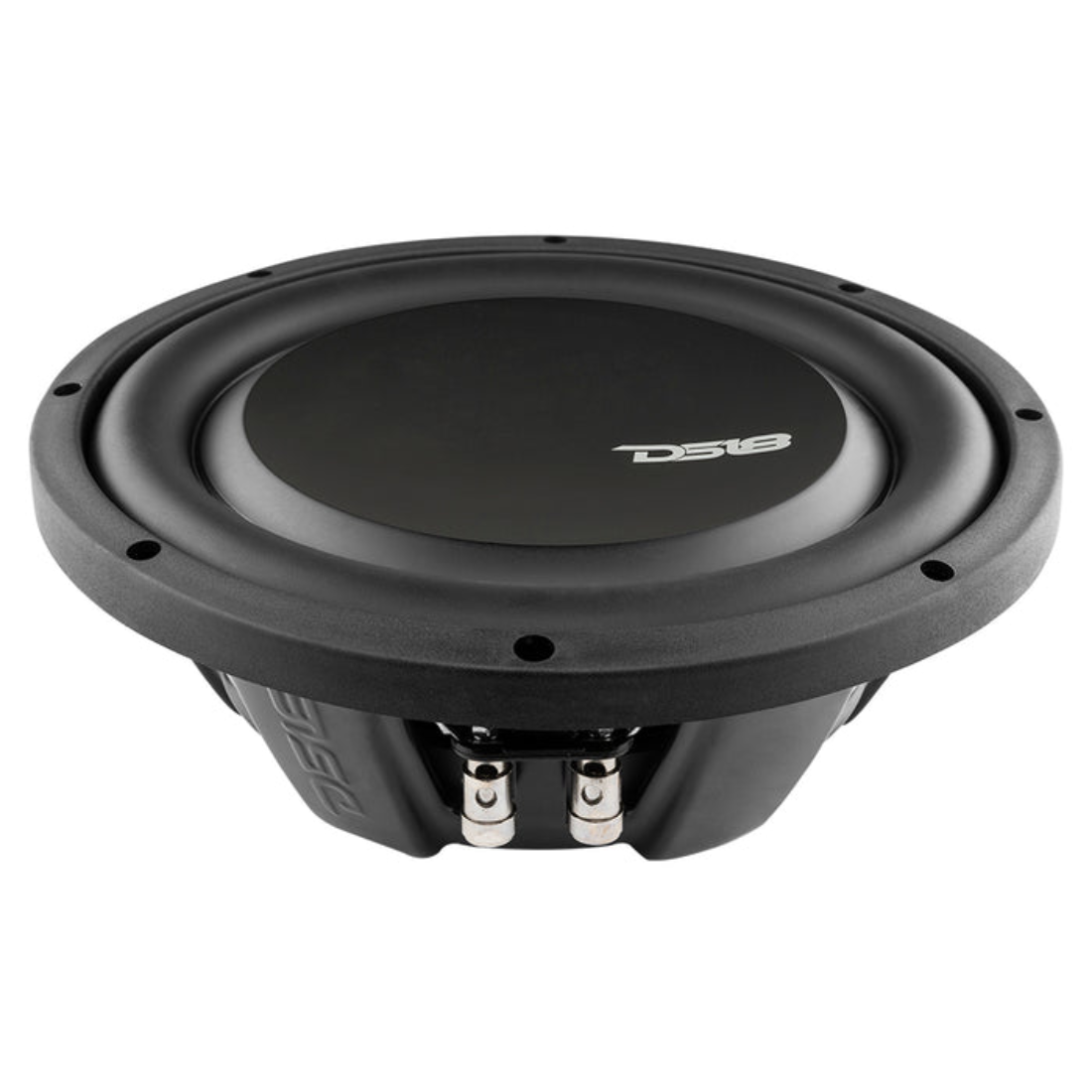

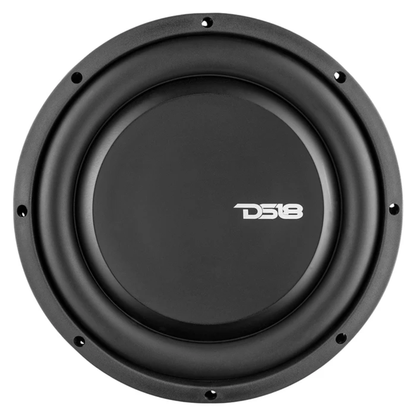

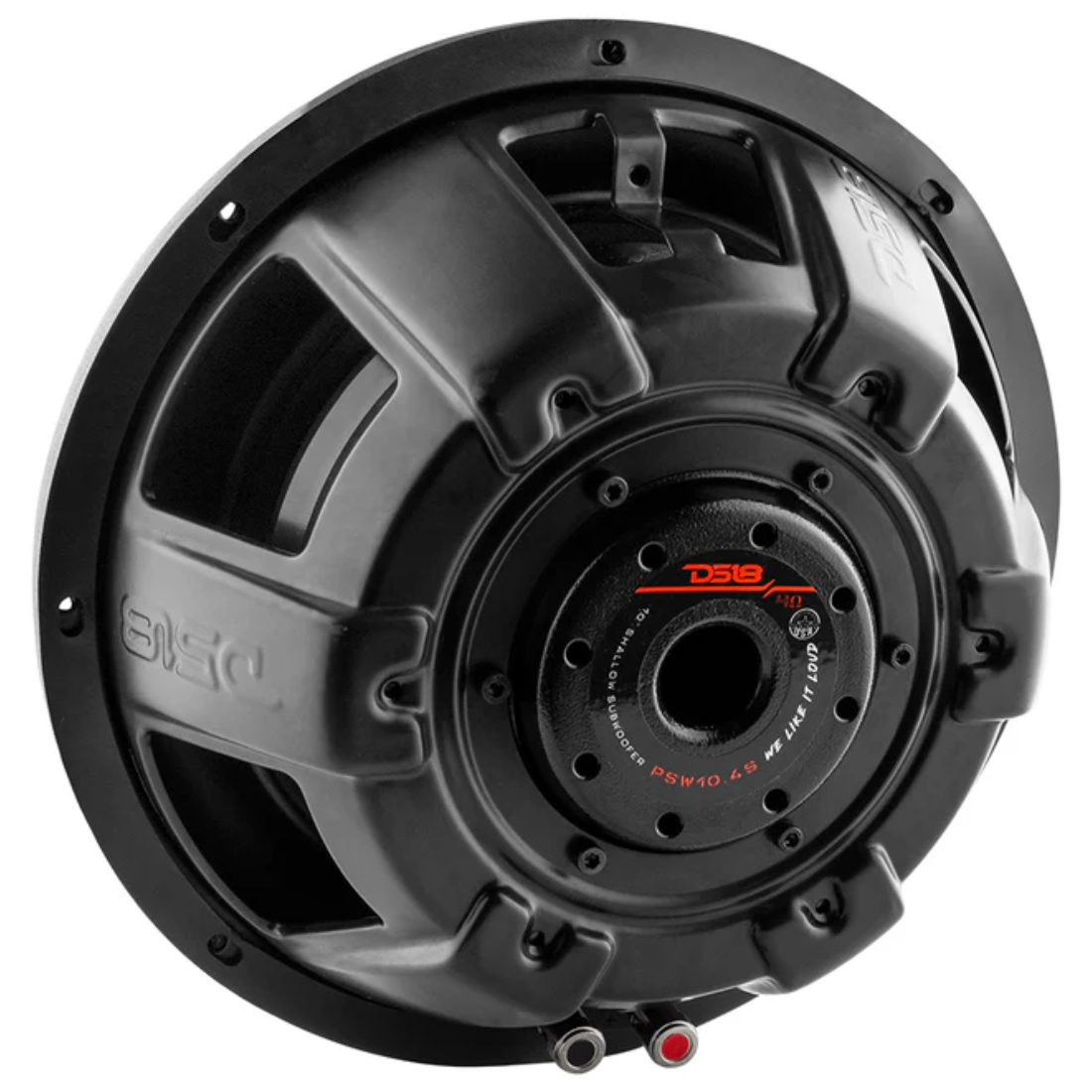

DS18 PSW10.4S 10" 1000W Max Single 4-Ohm SVC Water Resistant Shallow Subwoofer

BRAND NEW

DS18 PSW10.4S

10" 1000W Max Single 4-Ohm SVC Water-Resistant Shallow Subwoofer

Key Features:

• 10" Shallow Subwoofer
• MAX Power: 1000 Watts
• RMS Power: 500 Watts
• Impedance: 4 Ohm 2.5" SVC
• Ferrite Magnet ~ 84dB
• Water Resistant PPI

Specifications:

• SKU: PSW10.4S
• Nominal Diameter: 10" / 254 mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 500 W
• Maximum Power Handling: 1000 W
• Sensitivity (1w/1m): 84 dB
• Frequency Response: 20 - 800 Hz
• Recommended Low-Pass Crossover: 90 Hz

Motor Features:

• Voice Coil Diameter: 2.5" / 63.5 mm
• Voice Coil Former Material: Aluminum
• Winding Material: Copper
• Cone Material: Water-resistant PPI
• Surround Material: Rubber
• Basket Material: Steel
• Basket Color/Finish: Matt Black
• Magnet Material: Ferrite
• Magnet Weight: 58 Oz
• Displacement Volume: 0.8L / 0.028ft3

Thiele & Small Parameters:

• Equivalent Volume Vas: 20L / 0.7ft3
• Free Air Resonance Fs: 32 Hz
• Mechanical Factor Qms: 4.203
• Electrical Factor Qes: 0.565
• Total Factor Qts: 0.498
• Moving Mass Mms: 175 g
• Compliance Cms: 0.119.5 mm/N
• Bl Factor BI: 14.72
• Voice Coil Inductance Le: 1.5 mH
• Diaphragm Area Sd: 336.54 cm2
• DC Resistance Re: 3.6 Ohms
• Efficiency Bandwidth Product EBP: 56.6

Recommended Enclosures:

• Sealed Internal Volume (minimum): 14.2L / 0.5ft3
• Sealed Box Output Response F3: 44 Hz

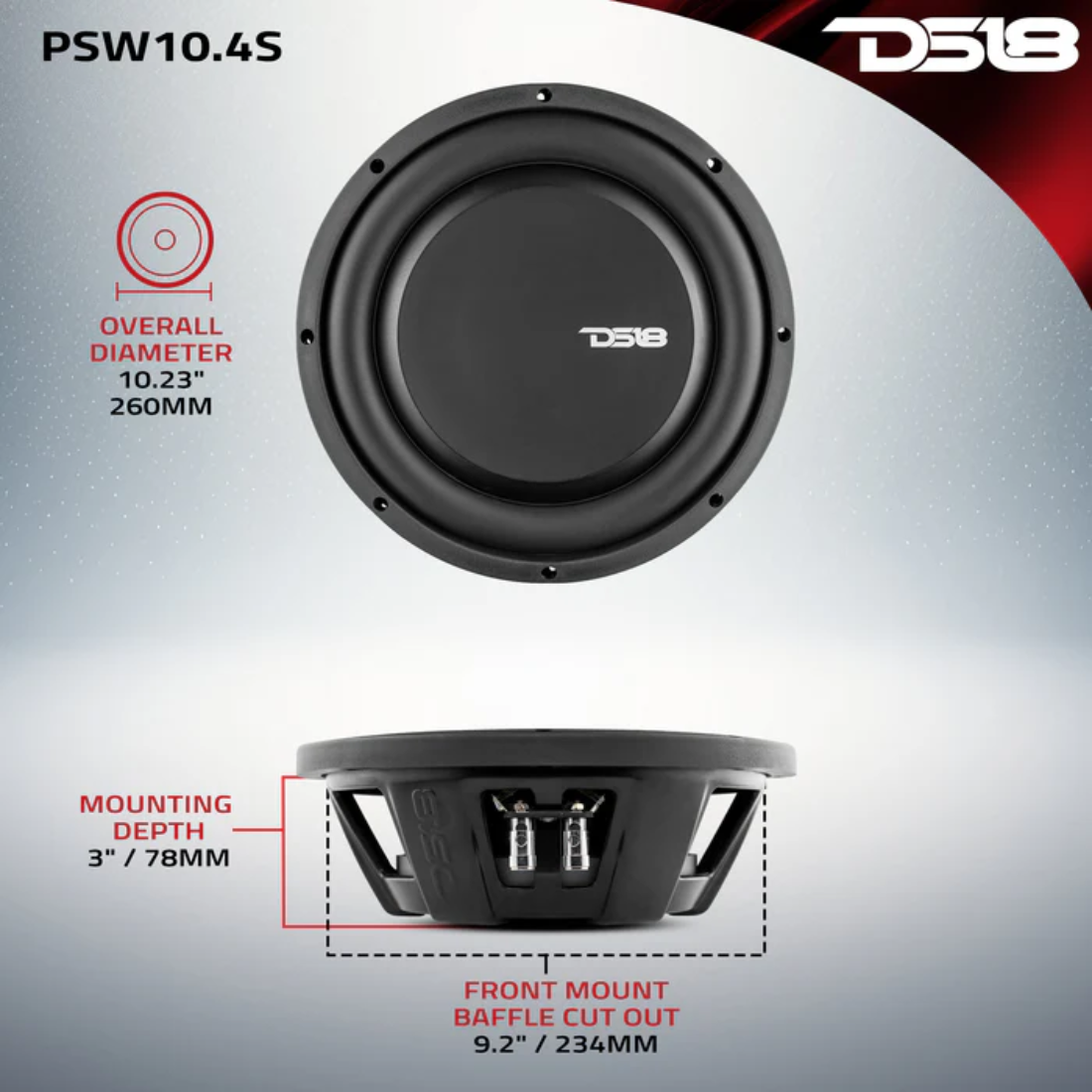

Measurement:

• Overall Diameter: 10.23" / 260 mm
• Overall Depth: 3.6" / 92 mm
• Front Mount Baffle Cutout: 9.2" / 234 mm
• Mounting Depth: 3" / 78 mm
• Motor Diameter: 6.5" / 165 mm
• Gross Single Unit Weight (lb): 11.5
