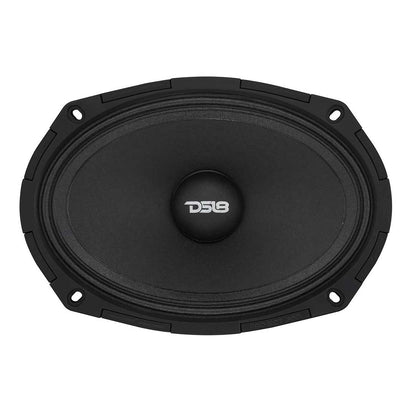

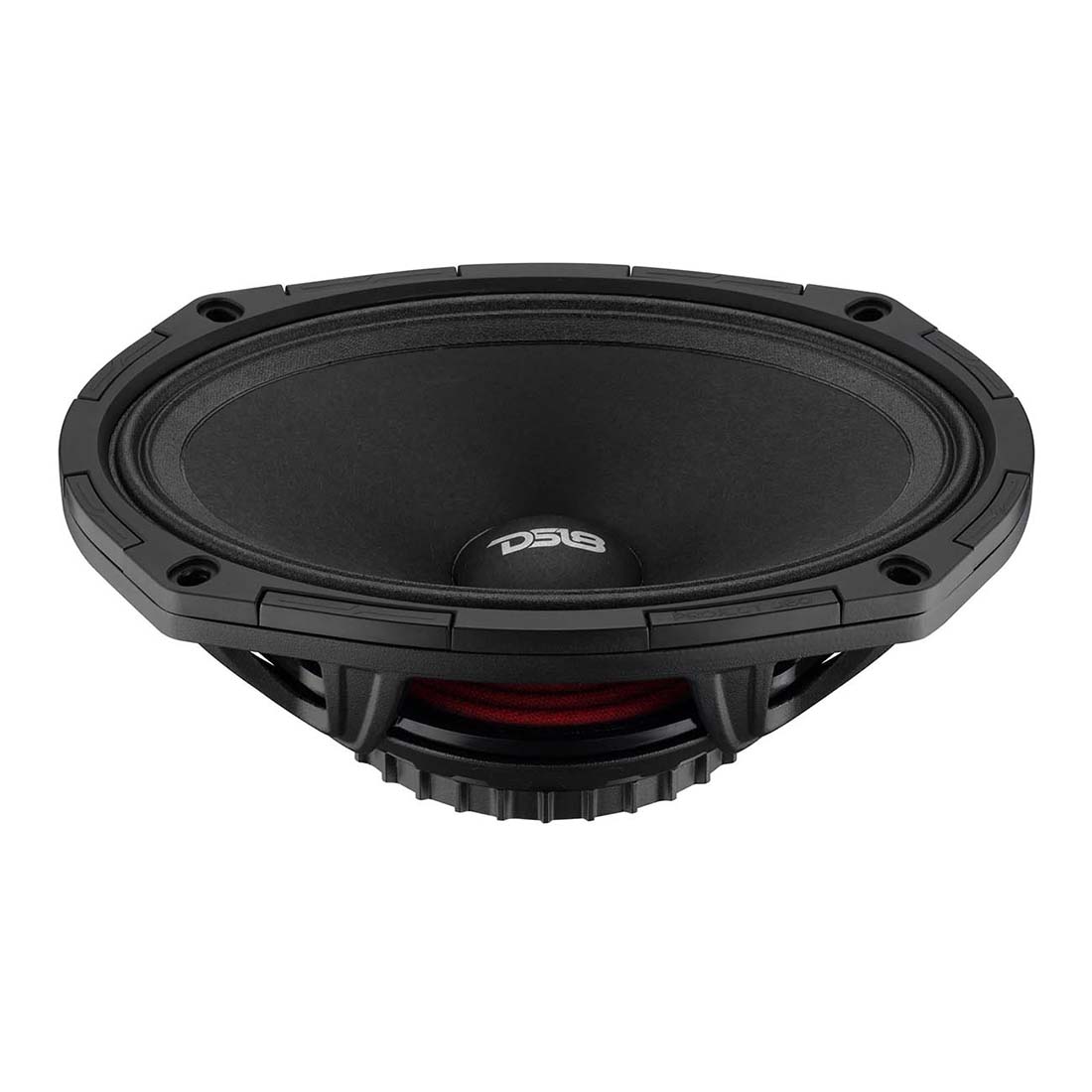

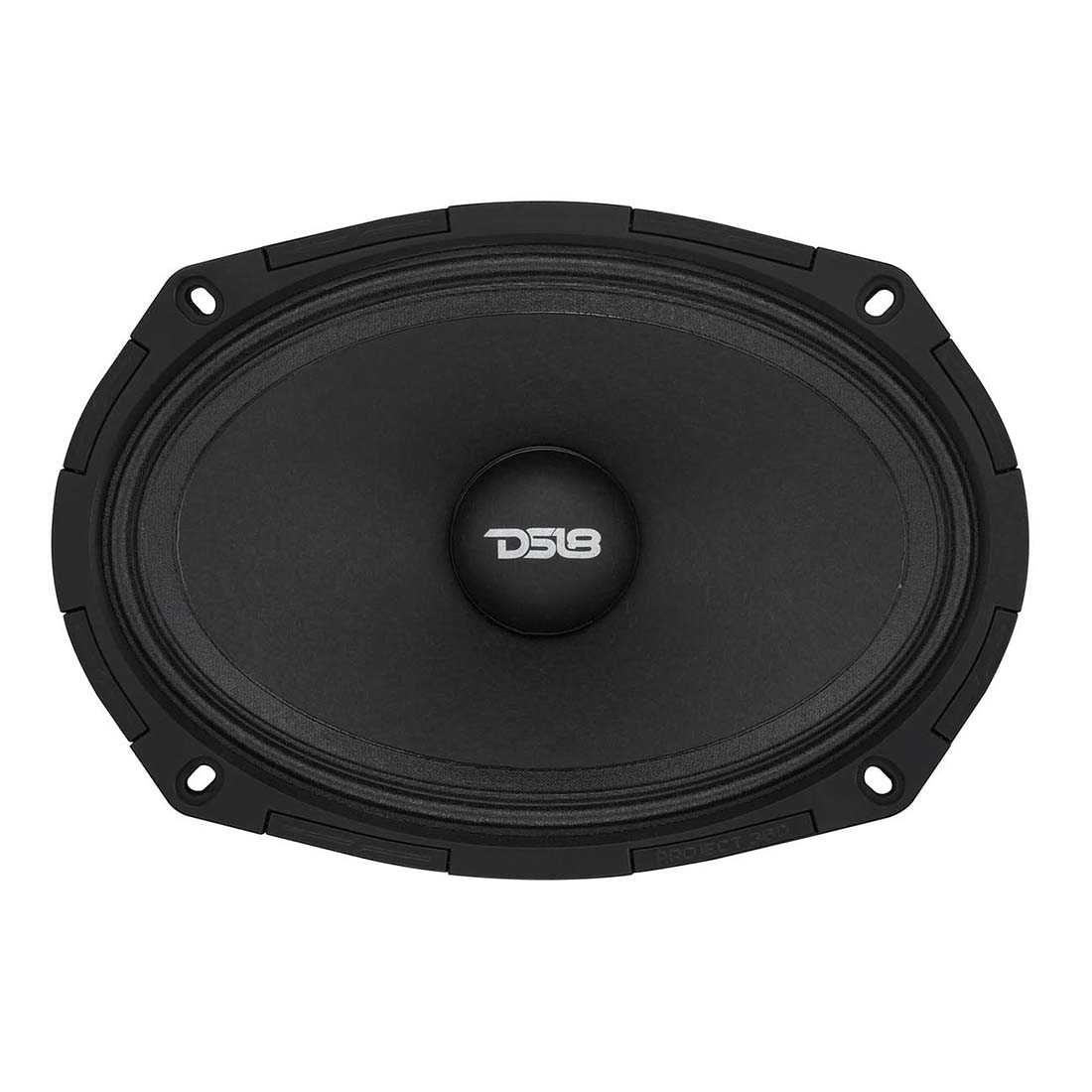

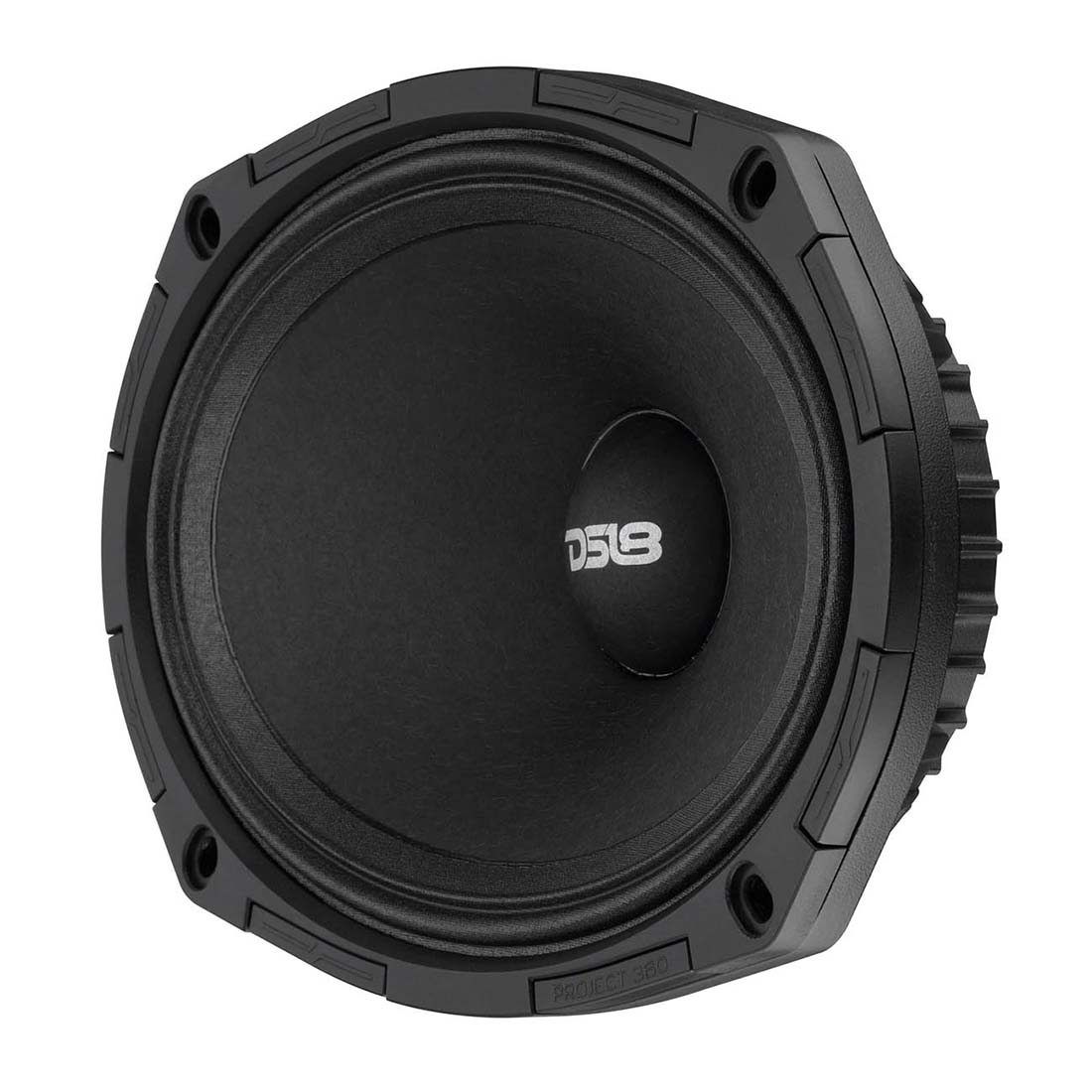

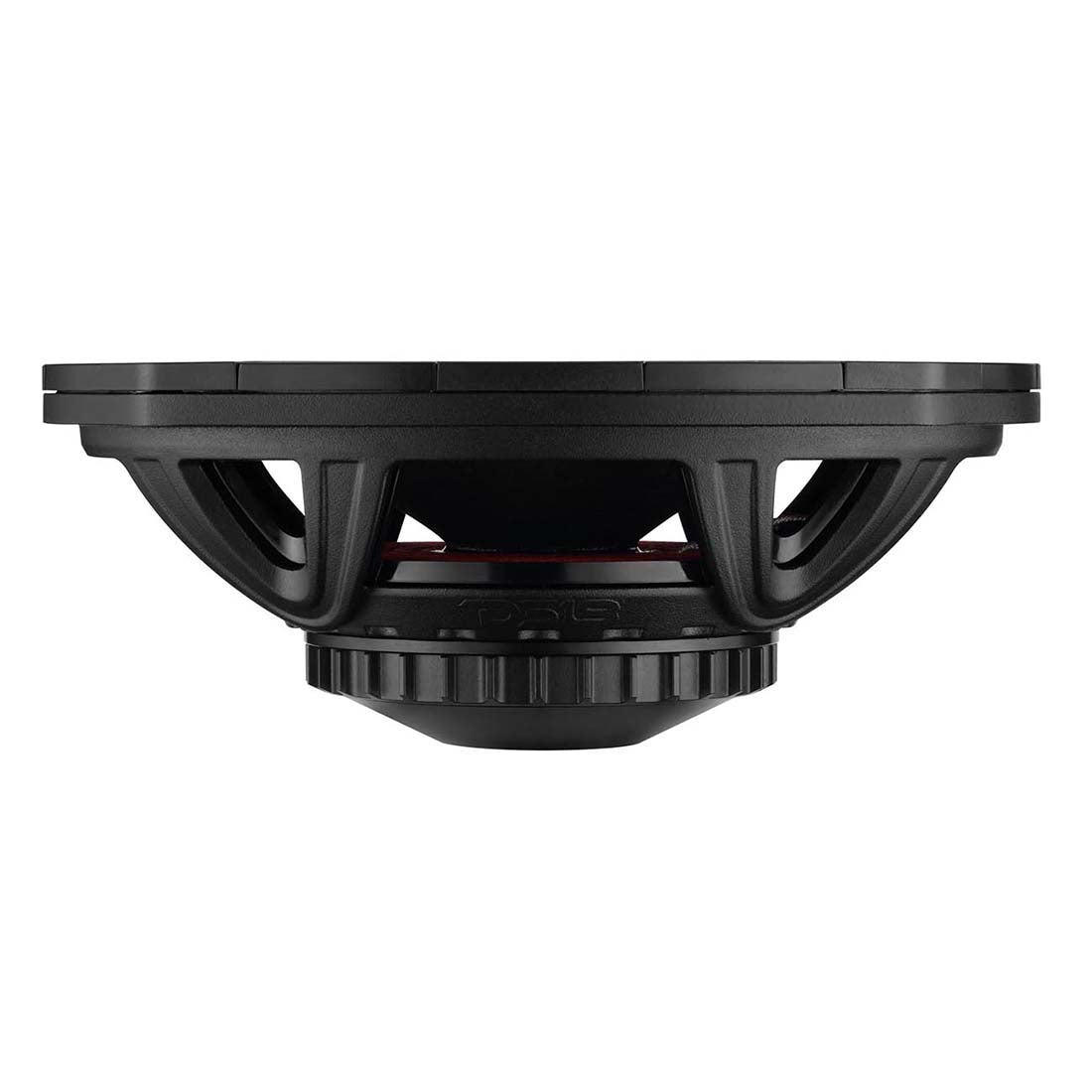

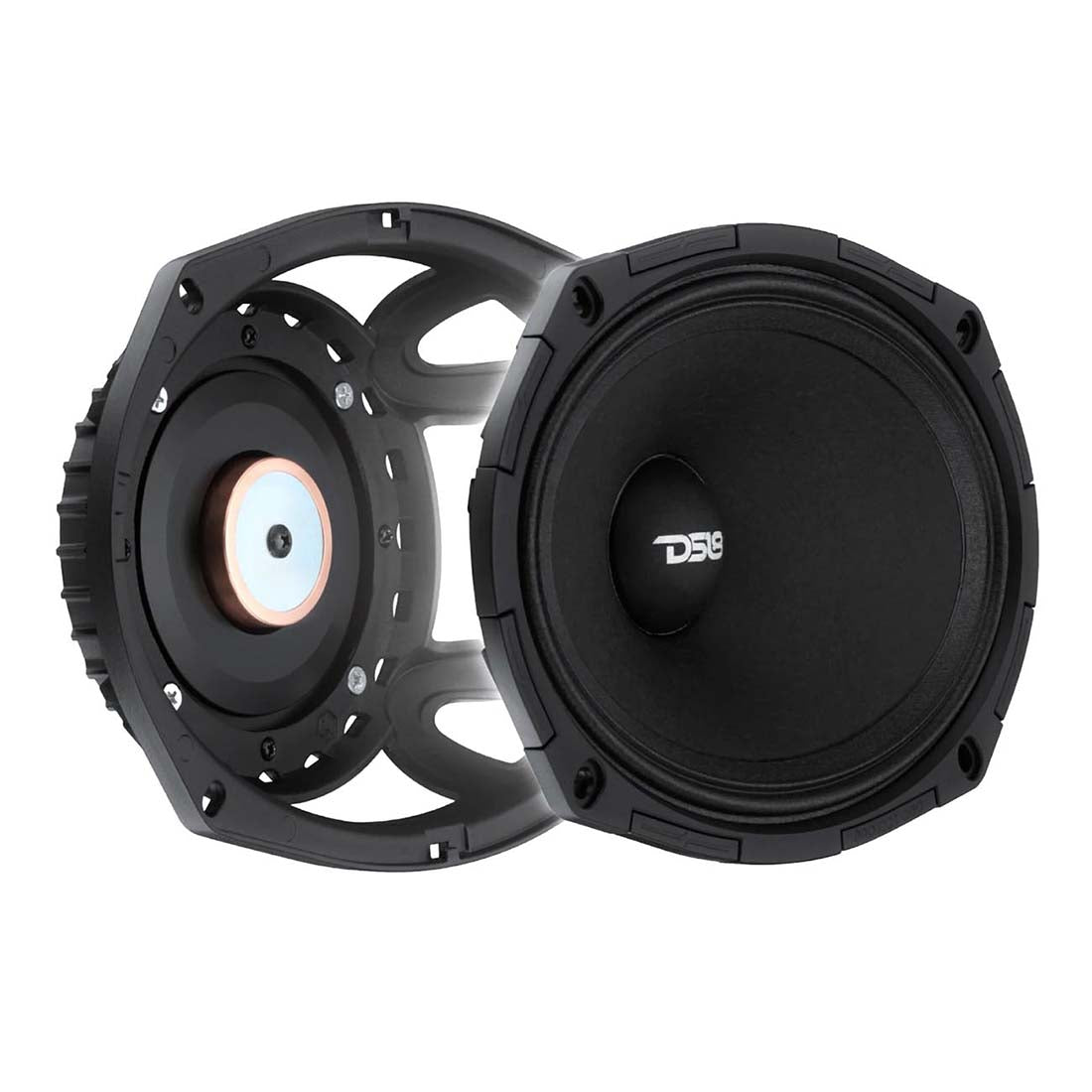

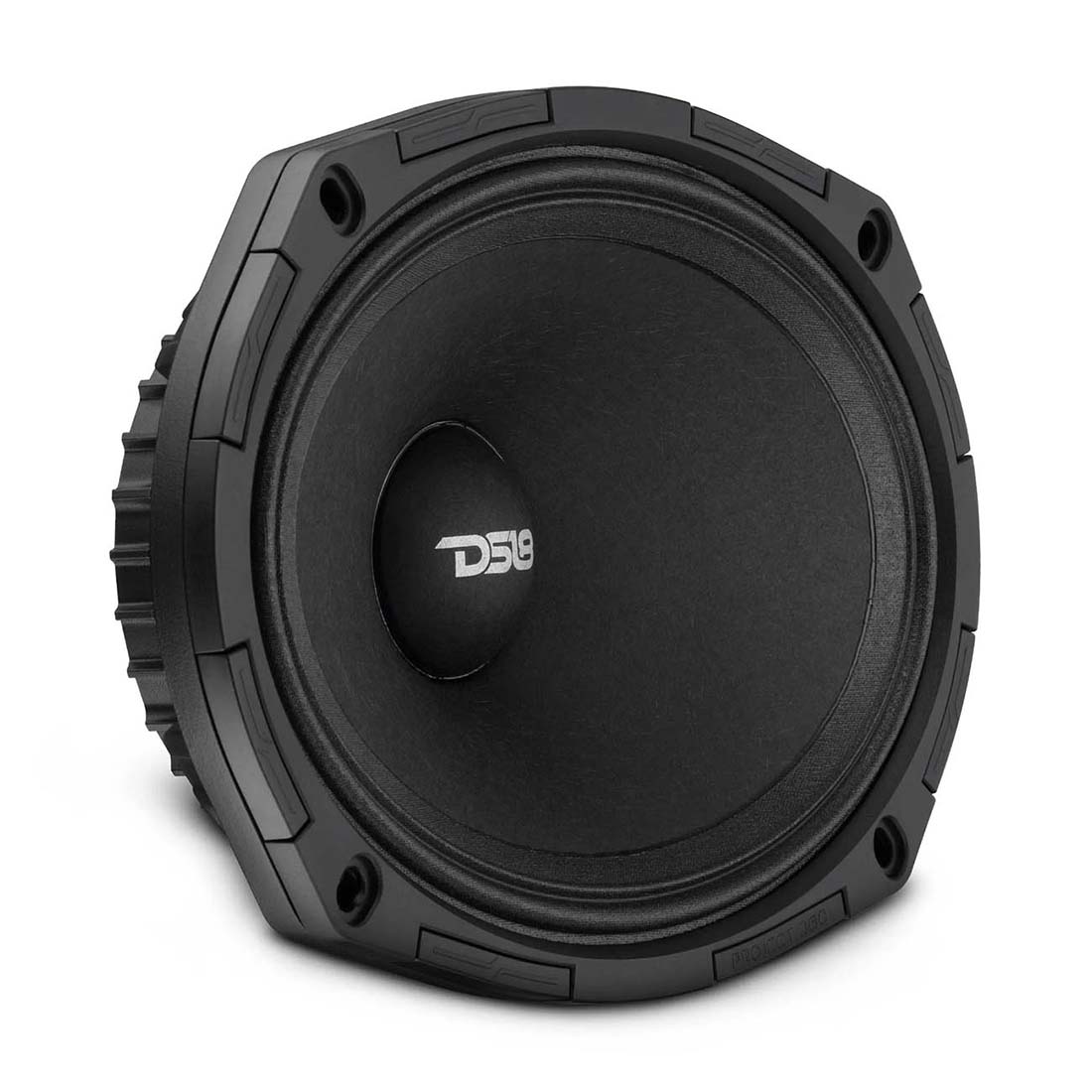

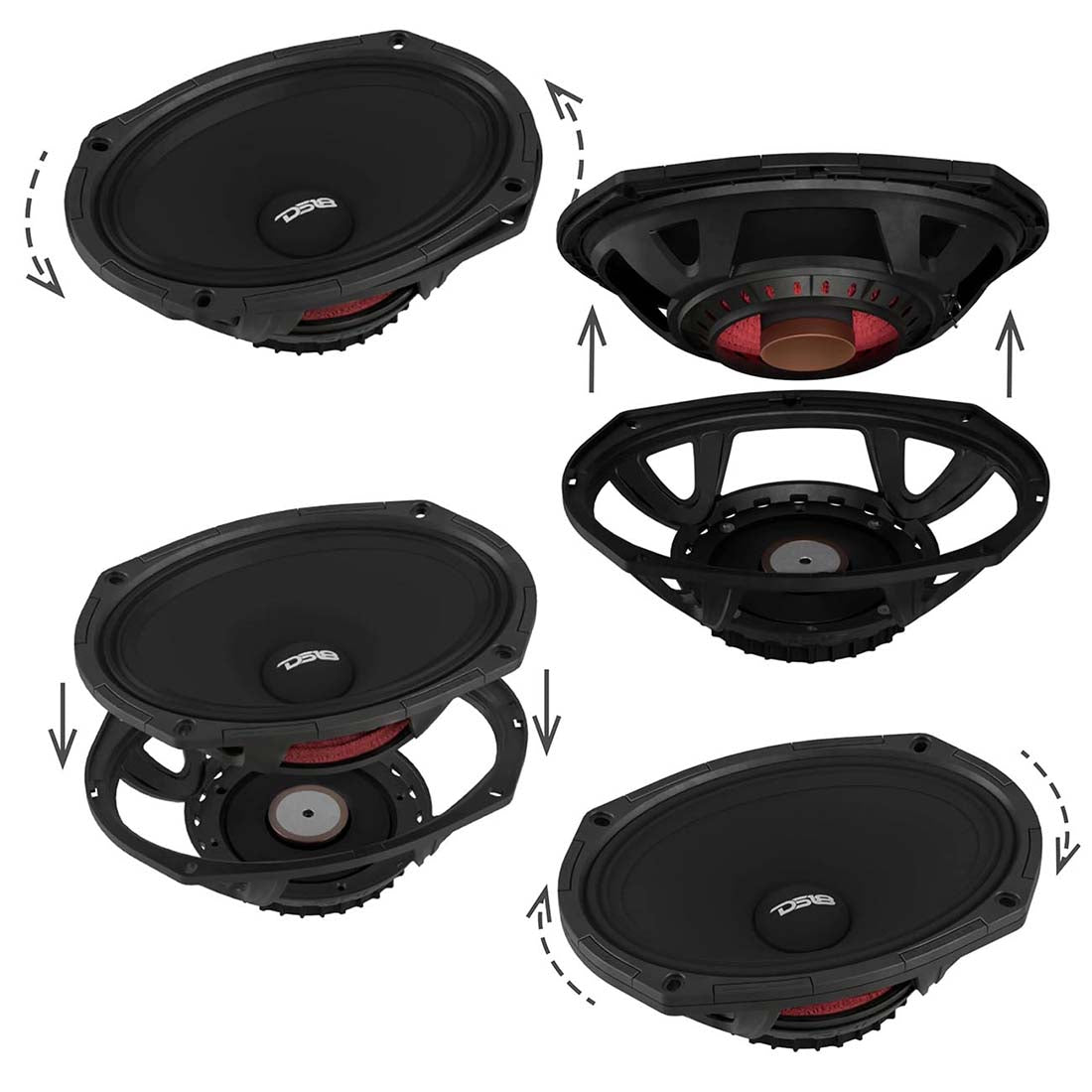

DS18 PROJECT360.694N 6" x 9" 700W Max 4-Ohm Neodymium Mid-High Car Loudspeaker

BRAND NEW

DS18 PROJECT360.694N

6" x 9" 700W Max 4-Ohm Neodymium Mid-High Car Loudspeaker

Key Features:

• Nominal Diameter: 6x9" / 152x228mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 350 W
• MAX Power Handling: 700 W
• Sensitivity (1w/1m): 101 dB
• Frequency Response: 95Hz–17kHz
• Recommended High-Pass Crossover: 90 Hz
• Sold As: Single Unit
• Grill Included: No
• Demodulating Rings: Yes
• Improved Heat Dissipation: Yes
• Cone Shape: Curvilinear

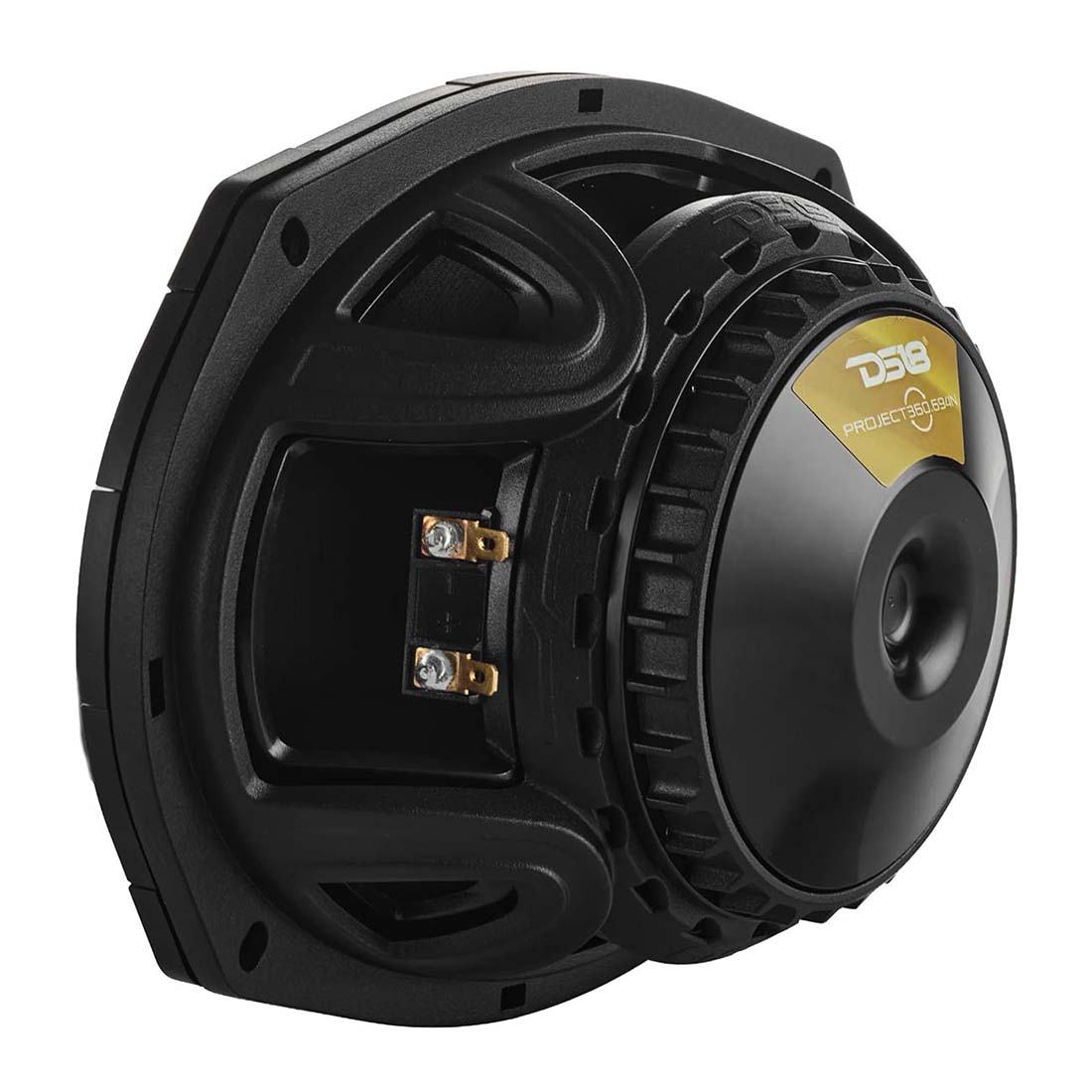

• Speaker Terminals: Spade
• Replacement Recone Kit: PROJECT360.694RCK

Motor Features:

• Voice Coil Diameter: 1.75" / 44.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Paper
• Surround Material: Cloth
• Spider Diameter: 4" / 102mm
• Leads Connection Type: Round Crossed
• Basket Material: Aluminum
• Basket Color / Finish: Black
• Magnet Material: Neodymium
• Magnet Weight: 12.8 oz

Thiele & Small Parameters:

• Equivalent Volume: 3.06L / 0.108ft3
• Excursion (one-way): 0.3 mm
• Free Air Resonance: 170 Hz
• Mechanical Factor: 3.315
• Electrical Factor: 0.343
• Total Factor: 0.311
• Moving Mass: 19.198 g
• Mechanical Compliance: 0.041 mm/N
• BL Factor: 13.856
• Voice Coil Inductance: 0.039 mH
• Cone Area: 232.35 cm2
• DC Resistance: 3.3 Ohms

Measurement:

• Overall Diameter: 6.57x9.45" / 167x240mm
• Overall Depth: 3.59" / 91.2mm
• Front Mount Baffle Cutout: 5.9x8.8" / 150x223mm
• Mounting Depth: 3" / 77.3mm
• Motor Diameter: 3.94" / 100mm
