DS18 PRO-ZXi8M 8" 700W Max Mid-Range Loudspeaker w/ Neodymium/Ferrite Magnets

BRAND NEW

DS18 PRO-ZXi8M

8" 700W Max Mid-Range Loudspeaker w/ Neodymium/Ferrite Magnets

Key Features:

• 8" Mid-Range
• MAX Power: 700 Watts
• RMS Power: 350 Watts
• Impedance: 8-Ohm
• Ferrite & Neodymium Magnet
• 99dB

Specifications:

• SKU: PRO-ZXI8M
• Nominal Diameter: 8" / 203.2mm
• Nominal Impedance: 8 OHMS
• RMS Power Handing: 350 Watts
• Maximum Power Handing: 700 Watts
• Sensitivity (1w/1m): 99dB
• Frequency Response: 80Hz - 8Khz
• Recommended Hi Pass Crossover: 125Hz
• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Basket Material: Aluminum
• Magnet Weight: 30 + 3 Oz

Thiele & Small Parameters:

• Vas: 27.67L / 0.977ft3
• Xmax: 7.6mm
• Fs: 128Hz
• Qms: 9.319
• Qes: 0.856
• Qts: 0.784
• Re: 4.6 ohm

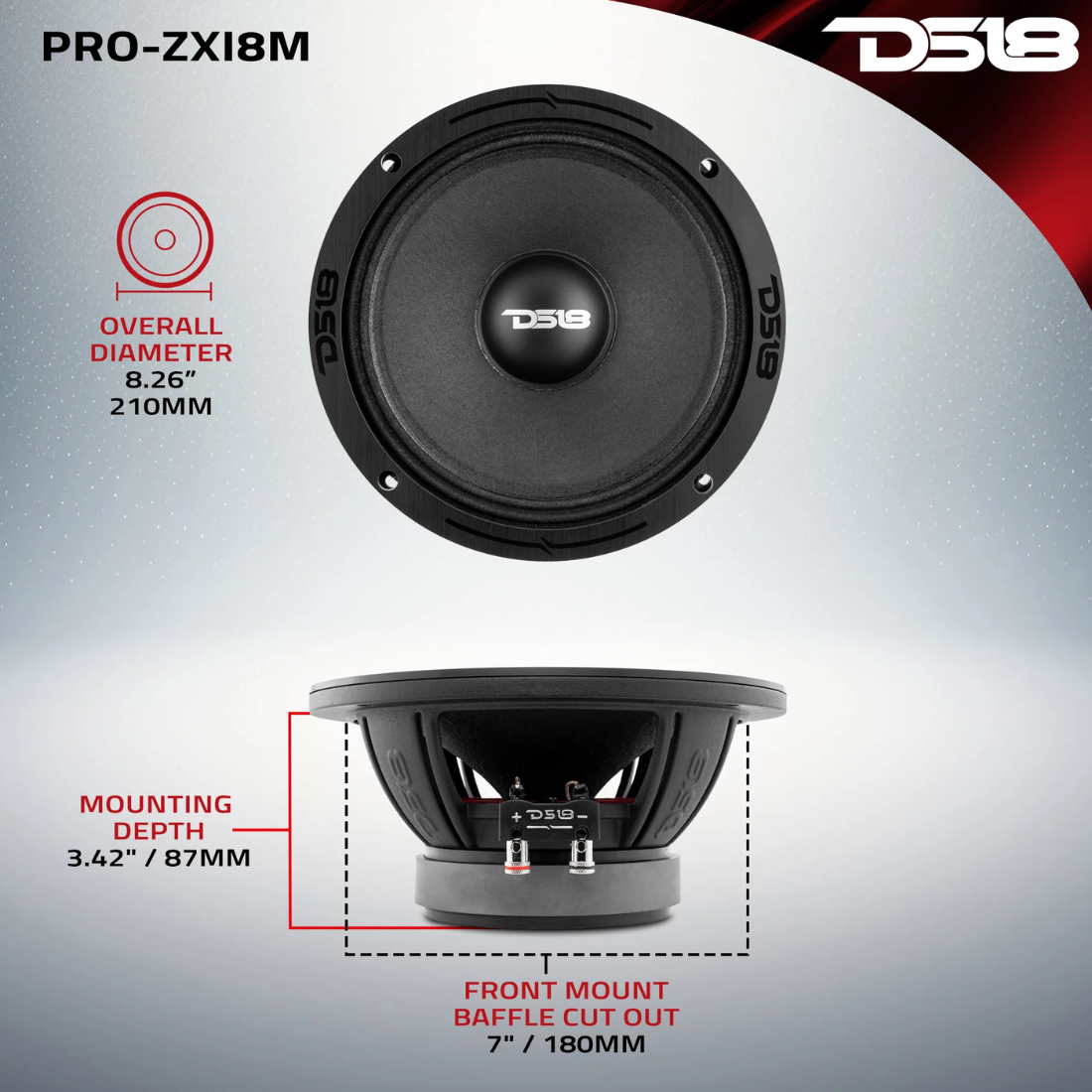

Measurement:

• Overall Diameter: 8.26" / 210mm
• Front Mount Baffle Cutout: 7" / 180mm
• Mounting Depth: 3.42" / 87mm
• Overall Depth: 3.77" / 96mm
• Product Weight: 6 lbs
• Product Dimensions: 9 x 9 x 4.25
