DS18 PRO-ZT10 10" 600W Max Coaxial Mid-Range Speaker w/ Built-in Bullet Tweeter

BRAND NEW

DS18 PRO-ZT10

10" 600W Max Coaxial Mid-Range Speaker w/ Built-in Bullet Tweeter

Key Features:

• 10" Coaxial Midrange (300W RMS / 600W MAX)
• Water-Resistant Cone with Treated Cloth Surround (IP32 Rated)
• 2" Kapton Voice Coil + 1.5” Aluminum Bullet Tweeter
• Wide Frequency Response: 45Hz–20KHz
• High Sensitivity: 100.3dB

Specifications:

• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 4-Ohm
• RMS Power Handling: 300W
• MAX Power Handling: 600W
• Sensitivity (1w/1m): 100.3 dB
• Frequency Response: 45Hz-20kHz
• Recommended HI Pass Crossover: 60Hz
• Pair or Single: Single
• Grill Included: No
• Voice Coil Water Protection: No
• Water-Resistant Rating: N/A
• Sold as: Single Unit

Motor Features:

• Voice Coil Diameter: 2" / 50.6mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Water-Resistant Paper
• Surround Material: Treated Cloth
• Basket Material: Steel
• Basket Color/Finish: Glossy Black
• Magnet Material: Ferrite
• Magnet Weight: 40 Oz

Tweeter Specs:

• Voice Coil Diameter: 1.5" / 38mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminum Alloy
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 1.3 Oz

Thiele & Small Parameters:

• Equivalent Volume: 21.6L / 0.762ft3
• Excursion (one way): 1.7mm
• Free Air Resonance: 76Hz
• Mechanical Factor (Qms): 3.92
• Electrical Factor (Qes): 0.65
• Total Factor (Qts): 0.56
• Mechanical Mass: 35.5g
• Mechanical Compliance: 0.122 mm/N
• BL Factor: 8.98
• Voice Coil Inductance: 0.23 mH
• Cone Area: 352.99 cm2
• DC Resistance: 3.2 ohms
• Mechanical Mass w/o Air: 18.346g

Measurement:

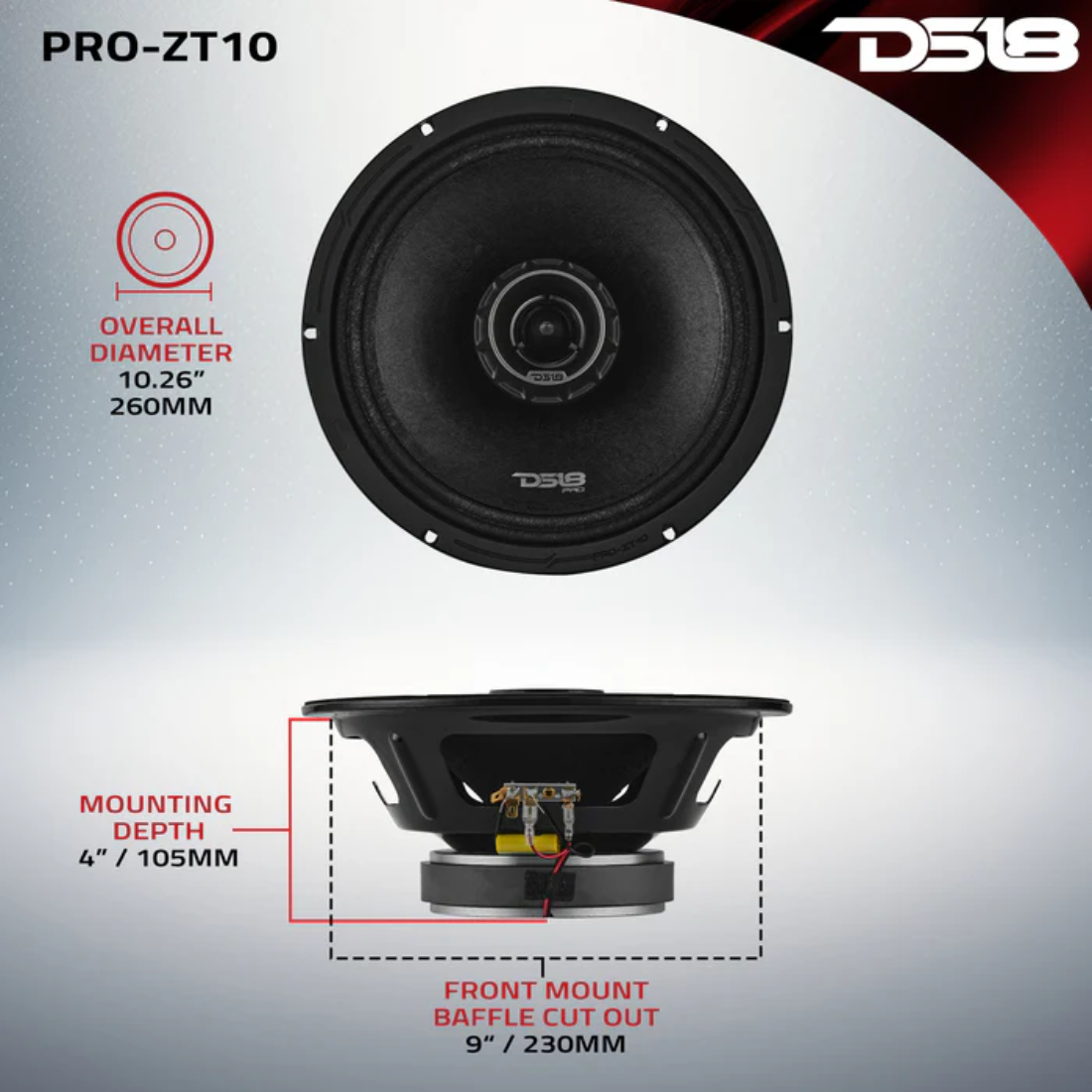

• Overall Diameter: 10.26" / 260mm
• Overall Depth: 4.62" / 117mm
• Front Mount Baffle Cutout: 9" / 230mm
• Mounting Depth: 4" / 105mm
• Motor Diameter: 5.28" / 134mm
