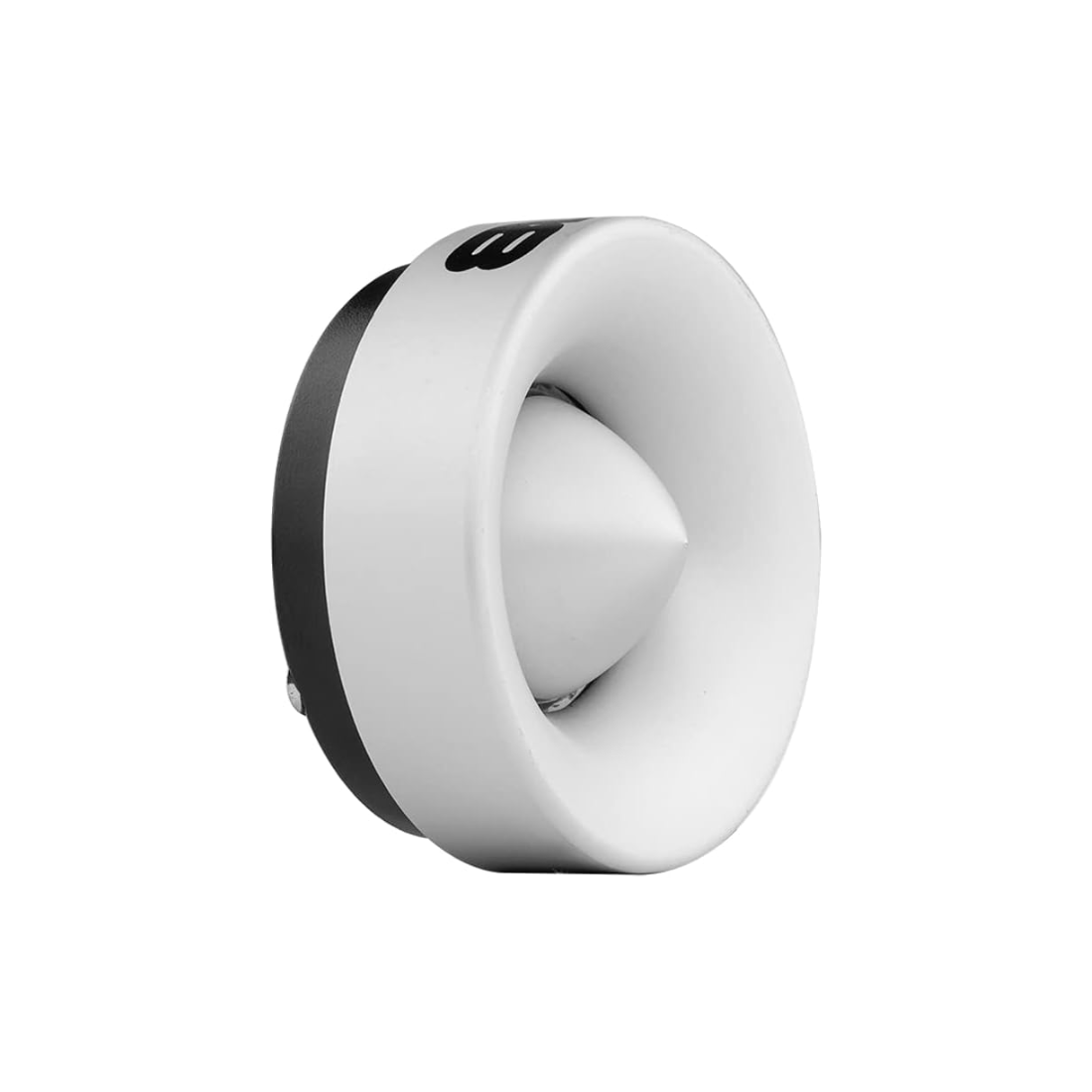

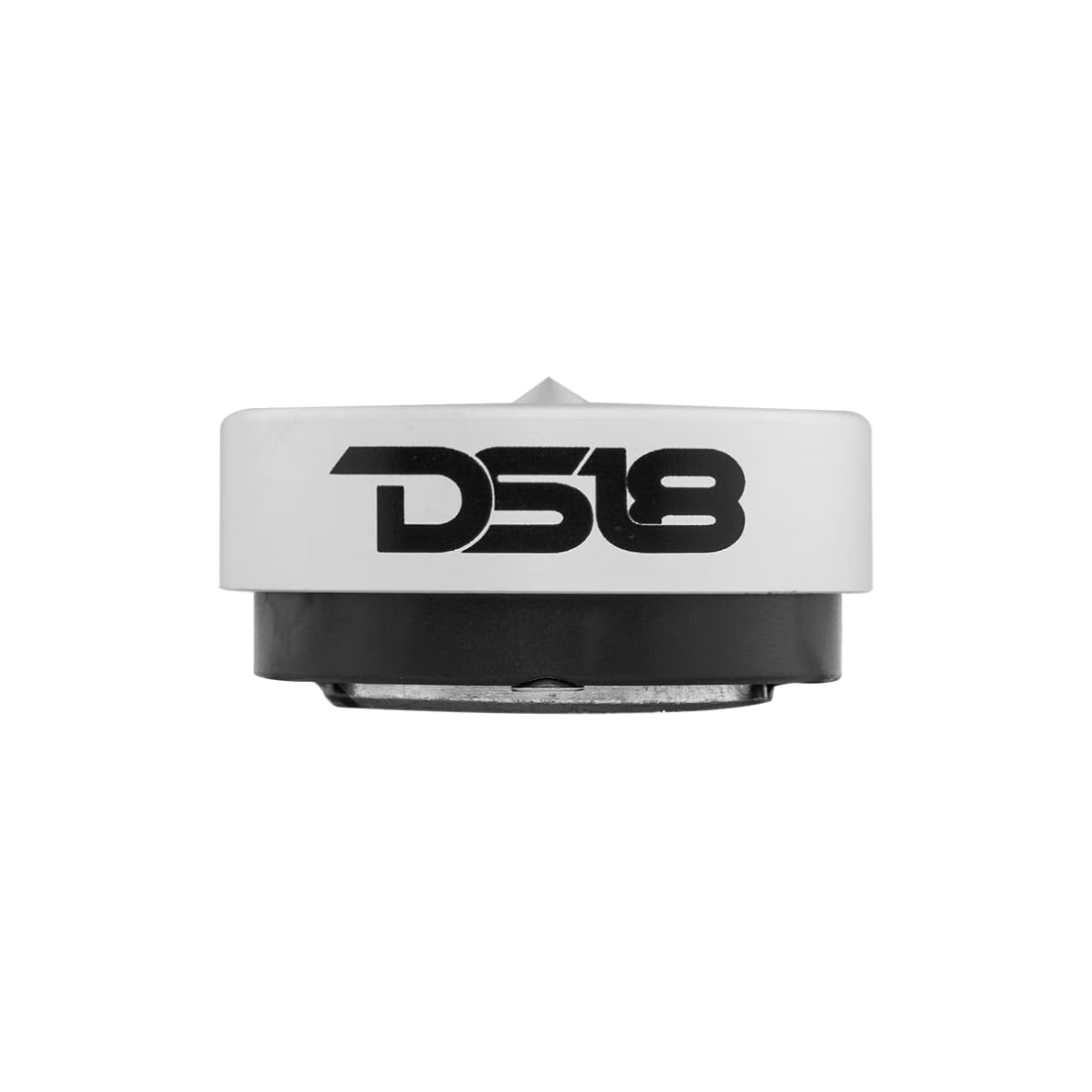

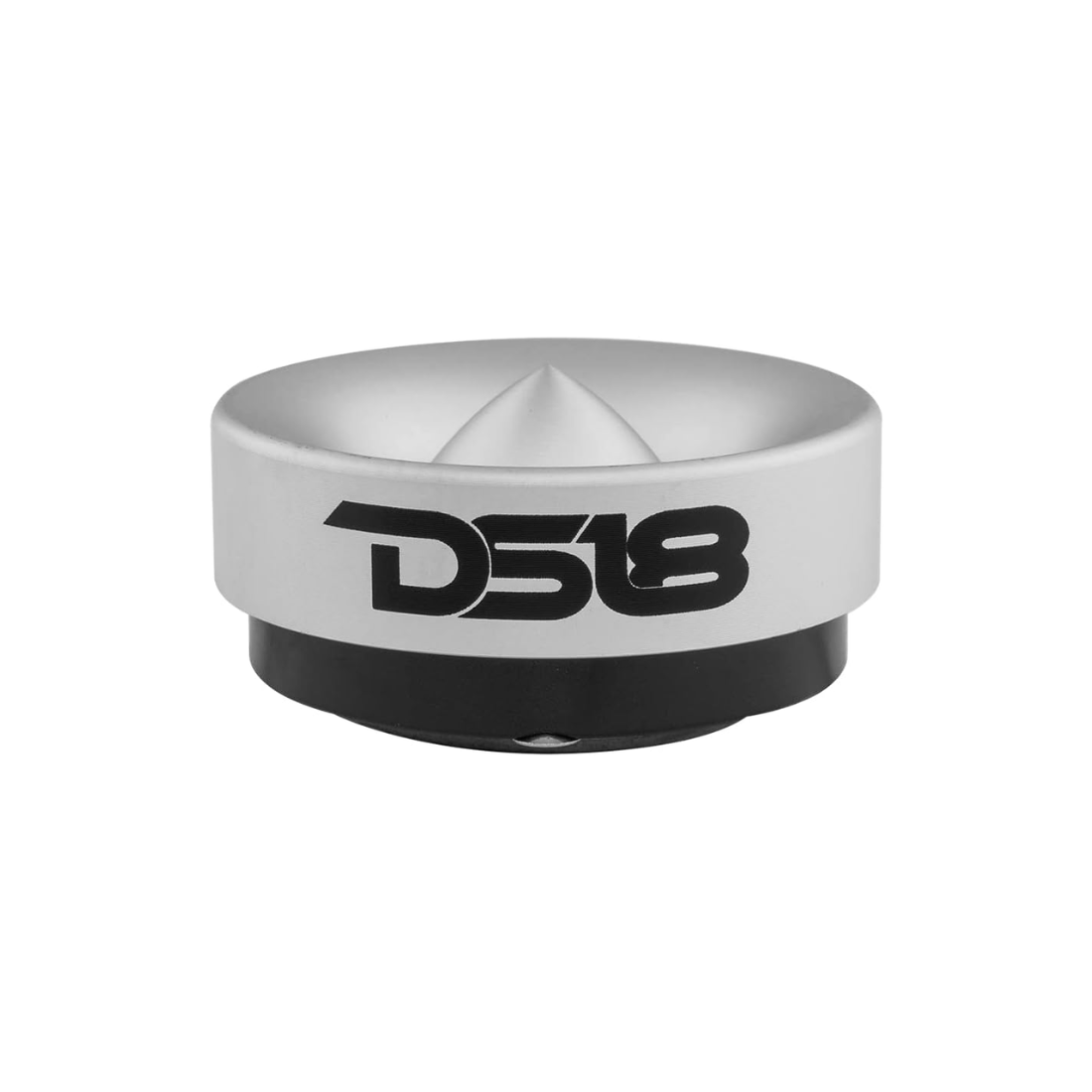

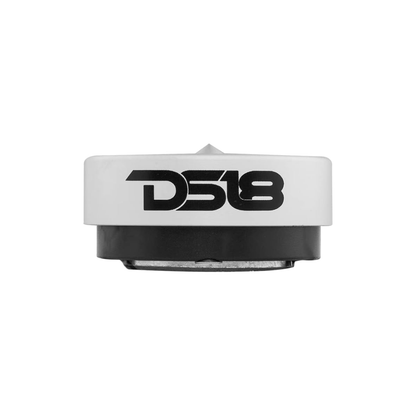

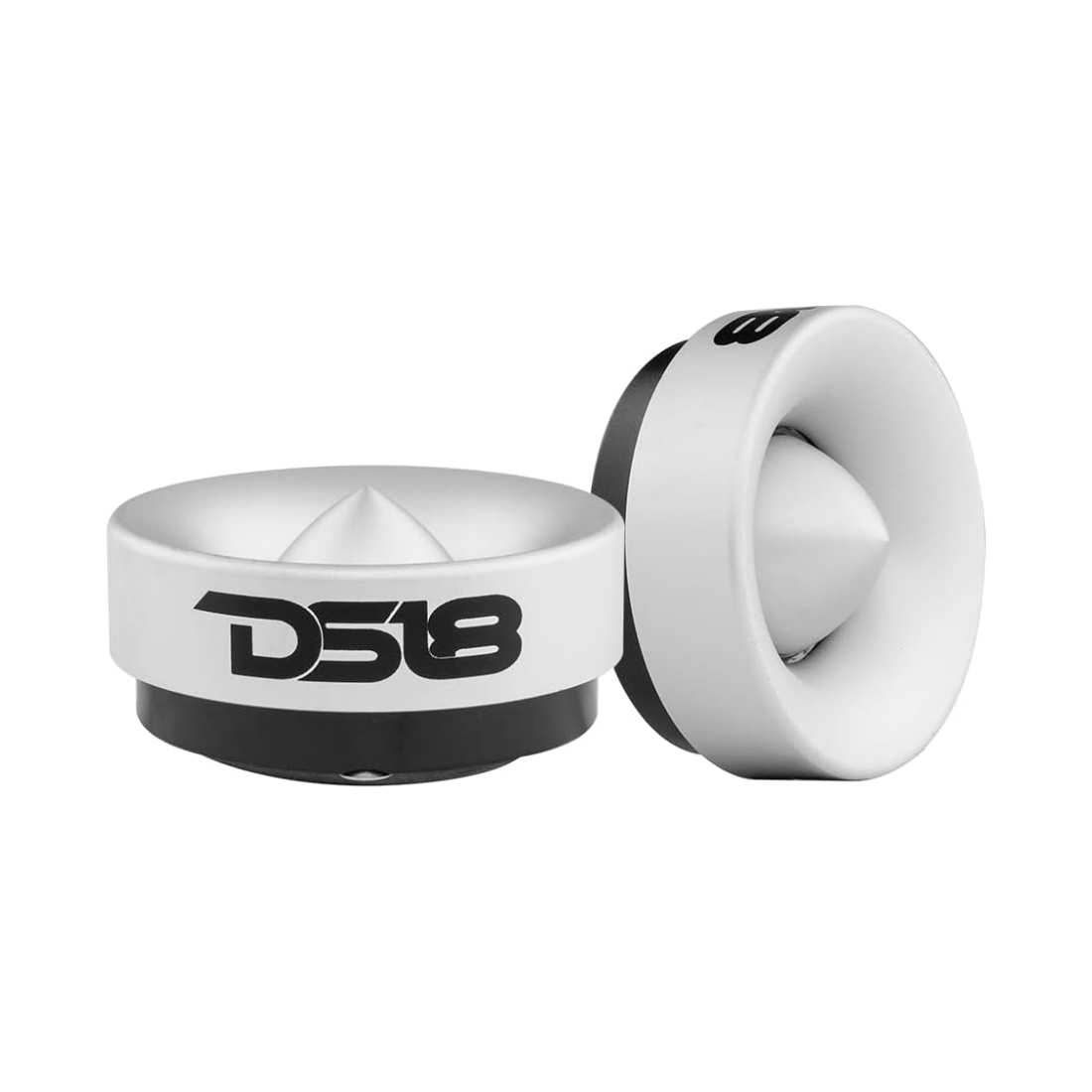

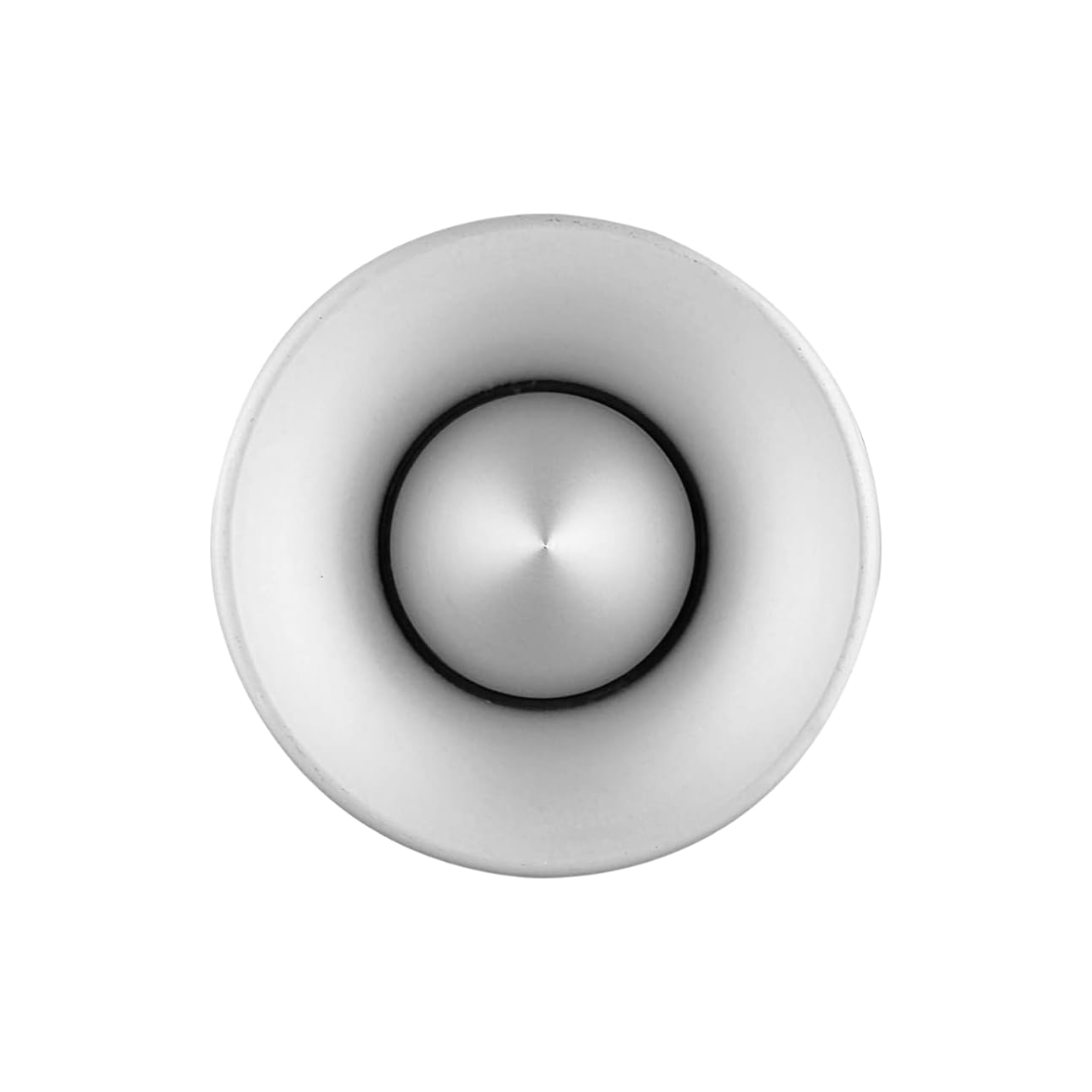

DS18 PRO-TSQ 1.9in Surface High Compression Neodymium Bullet Tweeter Pair 100W 4-Ohm
DS18 PRO-TSQ 1.9in Surface High Compression Neodymium Bullet Tweeter Pair 100W 4-Ohm
Regular price
$89.95 USD
Regular price
Sale price
$89.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 PRO-TSQ
1.9" 200W Peak 4-Ohm Car Audio Neodymium Super Bullet Tweeters
Key Features:
- Nominal Diameter: 2" (50.8mm)
- Nominal Impedance: 4 Ohms
- AES Power Handling: 50W
- Program Power Handling: 100W
- Peak Power Handling: 200W
- Sensitivity (1w/1m): 103dB
- Frequency Response: 2.5KHz ~ 20KHz
- Recommended Hi Pass Crossover: 3 KHz
Motor Features:
- Voice Coil Diameter: 1"/25.4 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: PEN
- Magnet Material: Neodymium
- Magnet Weight: 0.57 Oz
- Body Material: Aluminum
- Body Color: Silver
- Bullet Material: Aluminum
Measurement:
- Overall Diameter: 2.12" (53.8 mm)
- Overall Depth: 1" (27 mm)
- Front Mount Baffle Cutout: 1.88" (48 mm)
- Mounting Depth: 0.4" (10 mm)
