DS18

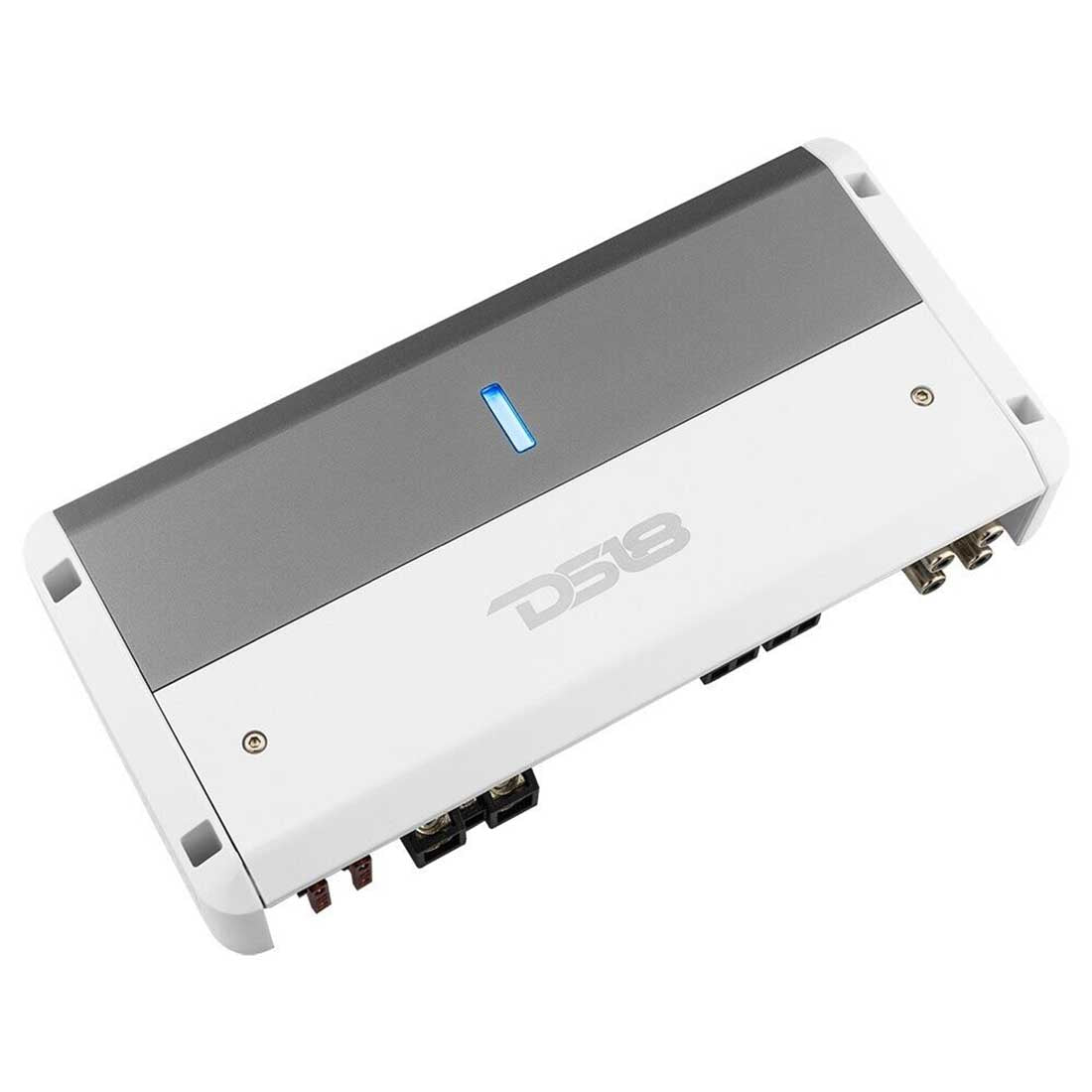

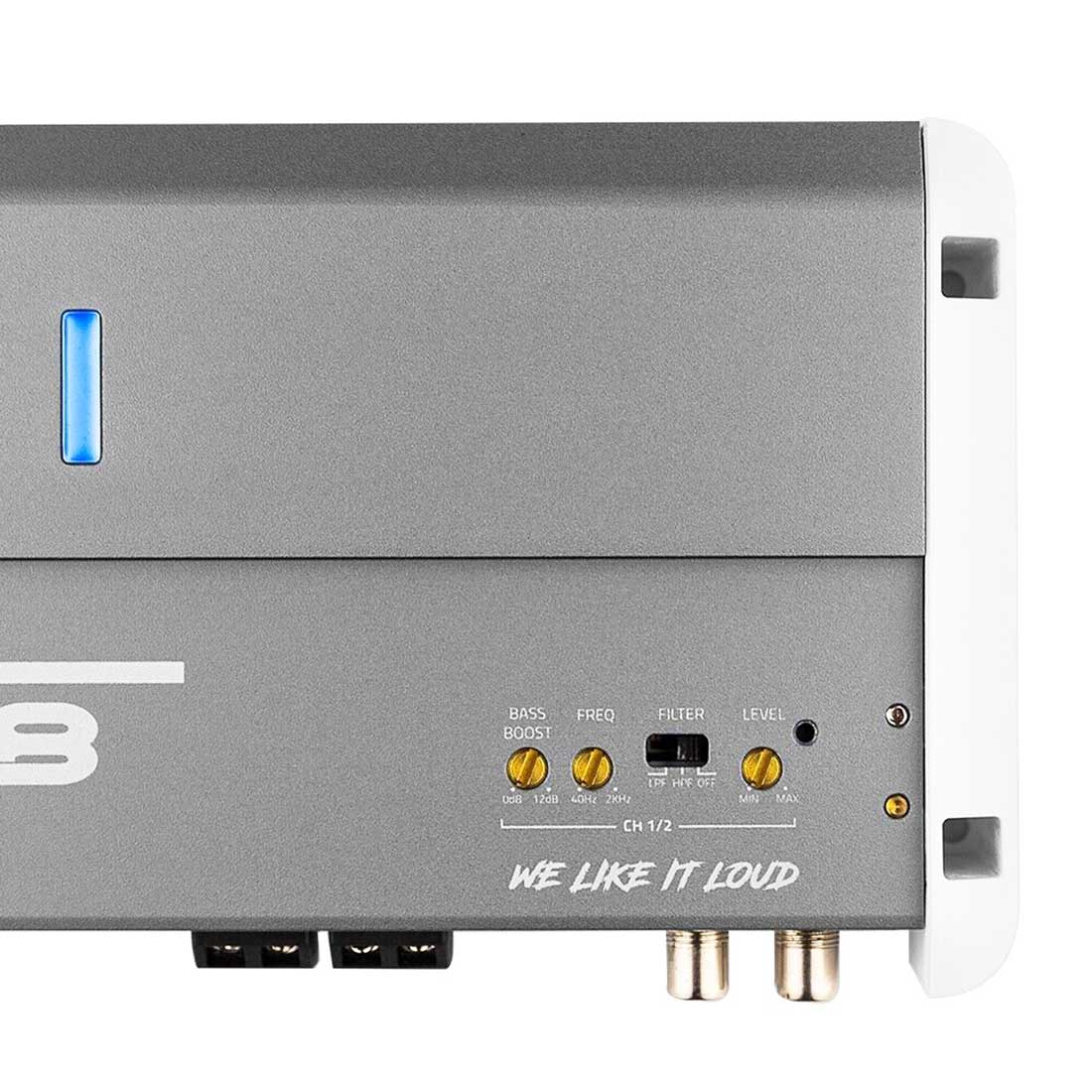

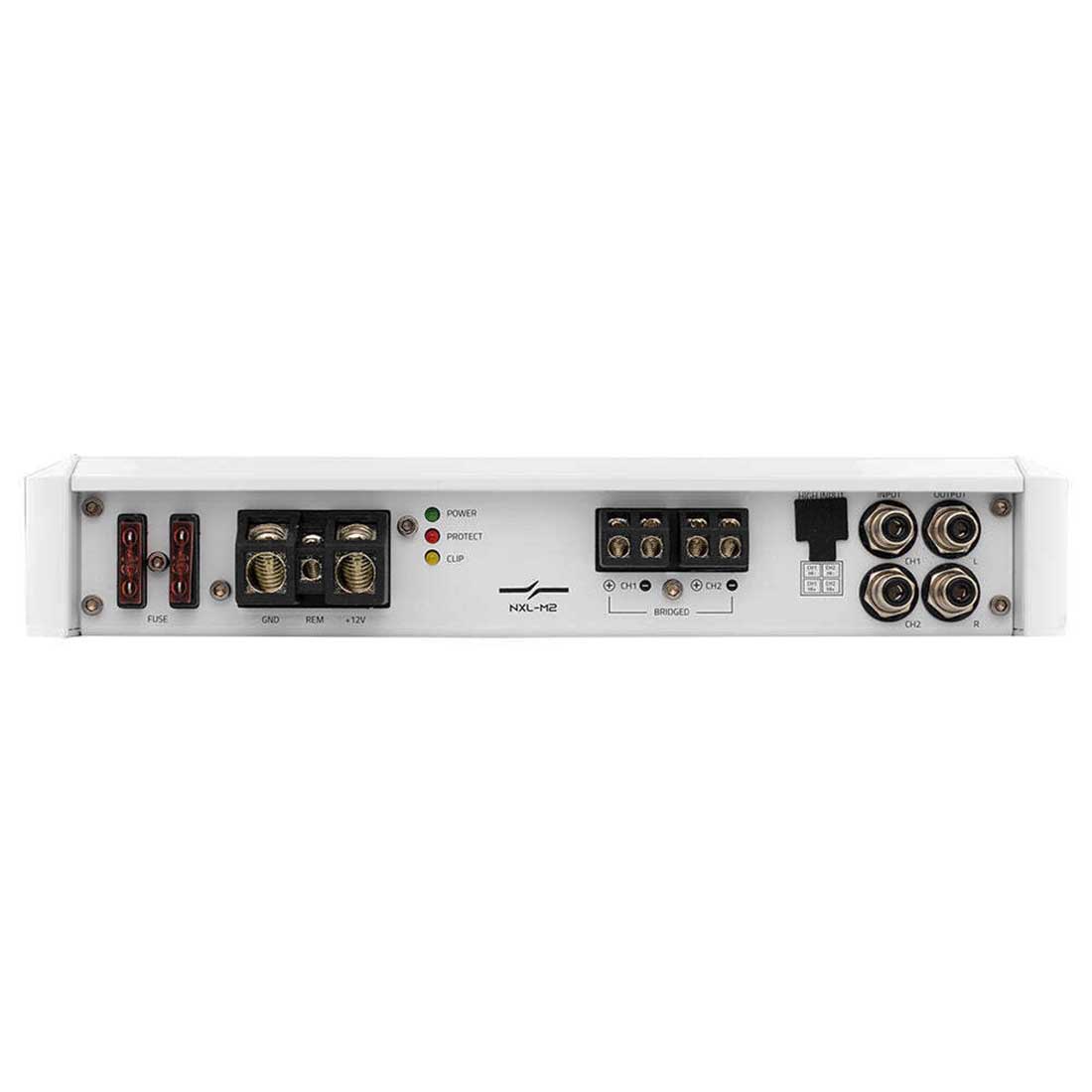

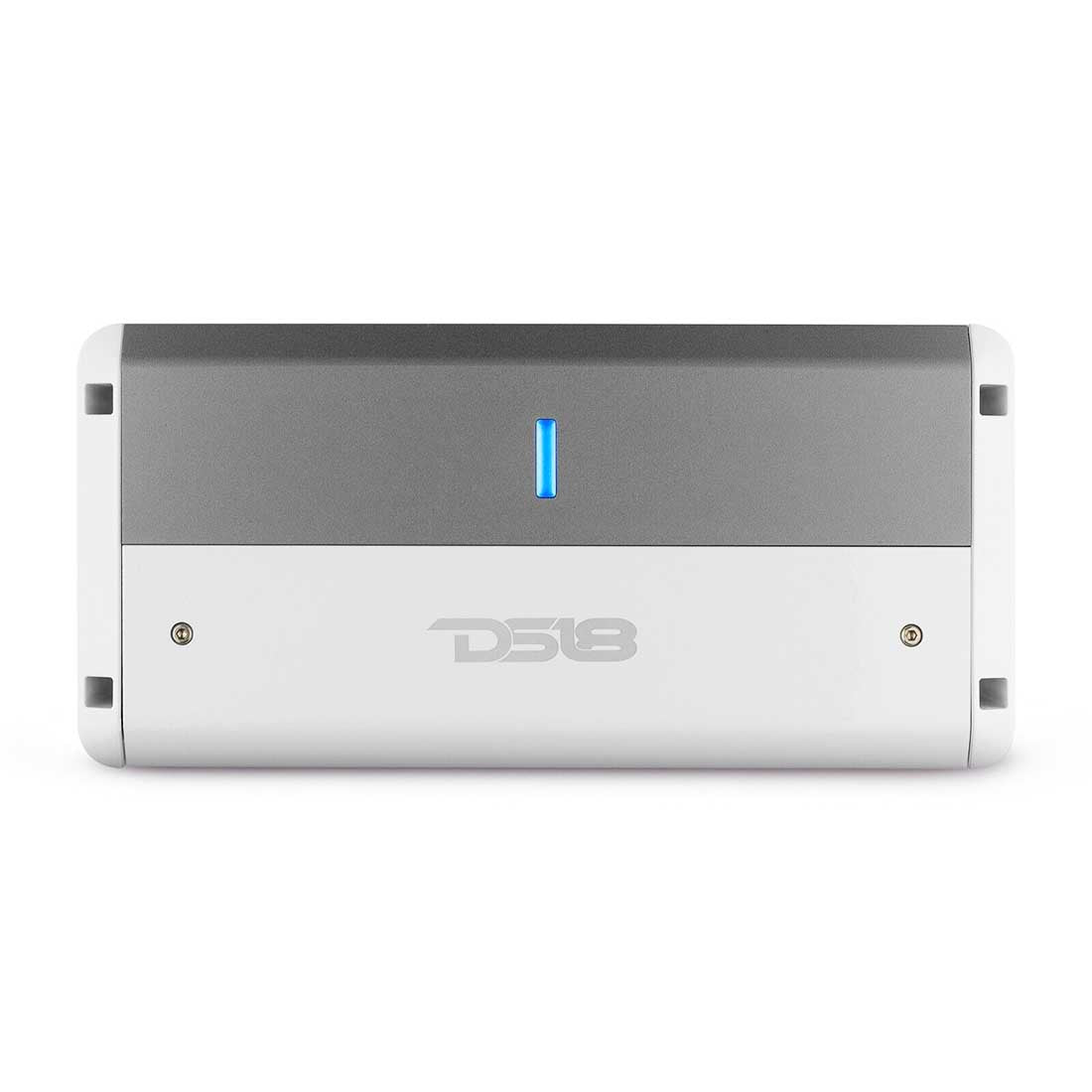

DS18 NXL-M2 1500W Peak 2-Channel Full-Range Class-D IPX5 Marine Grade Amplifier

Name: DS18 NXL-M2 1500W Peak 2-Channel Full-Range Class-D IPX5 Marine Grade Amplifier
Brand: DS18
SKU: NXL-M2
Price: 474.95 USD
Availability: InStock

$474.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 NXL-M2

1500 Watts Peak 2-Channel Full-Range Class-D IPX5 Marine Grade Amplifier

Key Features:

Hardware resistant to corrosion and UV Protection
Coated 4 Layers PCB to prevent corrosion
High-level input for radio use
2 Tinned OFC RCA Inputs and Outputs
IPX5 Water Resistance Grade
Front cover to keep the controls safe to the elements
LED Clip Indicator to easier adjustment
Stable and Reliable Class D Circuit Design
Sound Quality Verification Using AP Instruments
Direct Insert Power and Speaker Terminals
Short Circuit, Thermal, and Voltage Protection

Specifications:

POWER

Total Watts (Peak) 1500W
RMS Power @ 4 ohm 2 x 250W
RMS Power @ 2 ohm 2 x 400W
RMS Power @ 4 ohm Bridge 1 x 880W

AUDIO

Frequency Response: 20Hz - 20KHz
Signal to Noise Ratio: >90dB
Efficiency @ 4ohm: >90%
Channel Separation: >55dB
Total Harmonic Distortion (THD): <0.15%
Low-Level Input Range: 0.2V-6V
High-Level Input Yes: ≥5V
Selectable X-Over: HPF/LPF/FULL
X-Over Filter Range: 40Hz - 2KHz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 45Hz ±5Hz
Phase Selector: No

FEATURES

Amplifier Class: Digital (D)
Amplifier Type Stereo: Full Range
Number of Channels: 2 Channels
Minimum Impedance: 2 ohm (Stereo) / 4 ohm (Bridge)
Led Indicator: Clipping / Protect / Power
Power Input Terminal: Size 4 Ga
Fuse Size: 80A (2x40A)
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish Gray+White / Aluminum+ABS

EXTRA FEATURES

Water Resistant Rated: Yes, IPX5 (Water Splashing)
PCB Layout Design: 4 Layers / Coated
RCA Output: Yes, 2 CH (Left / Right)
UV Compliant: Yes, UV Protected, and PCB Coated
Input Sum Selector: N/A
Tiffany Style RCA: Yes
High-Level Input: Yes, 2ch Speaker level
Stainless Steel Hardware: Yes, (Screws)
Potentiometers High-Quality Metal Knob
Remote Level Control: No

MEASUREMENT

Overall Length 9.6" / 245mm
Overall Wide 4.5" / 116mm
Overall Height 1.7" / 43mm
Heatsink Length 8.6" / 220mm

GREAT FOR

Marine Audio
Jeep Audio
ATV Audio
Powersports Audio
