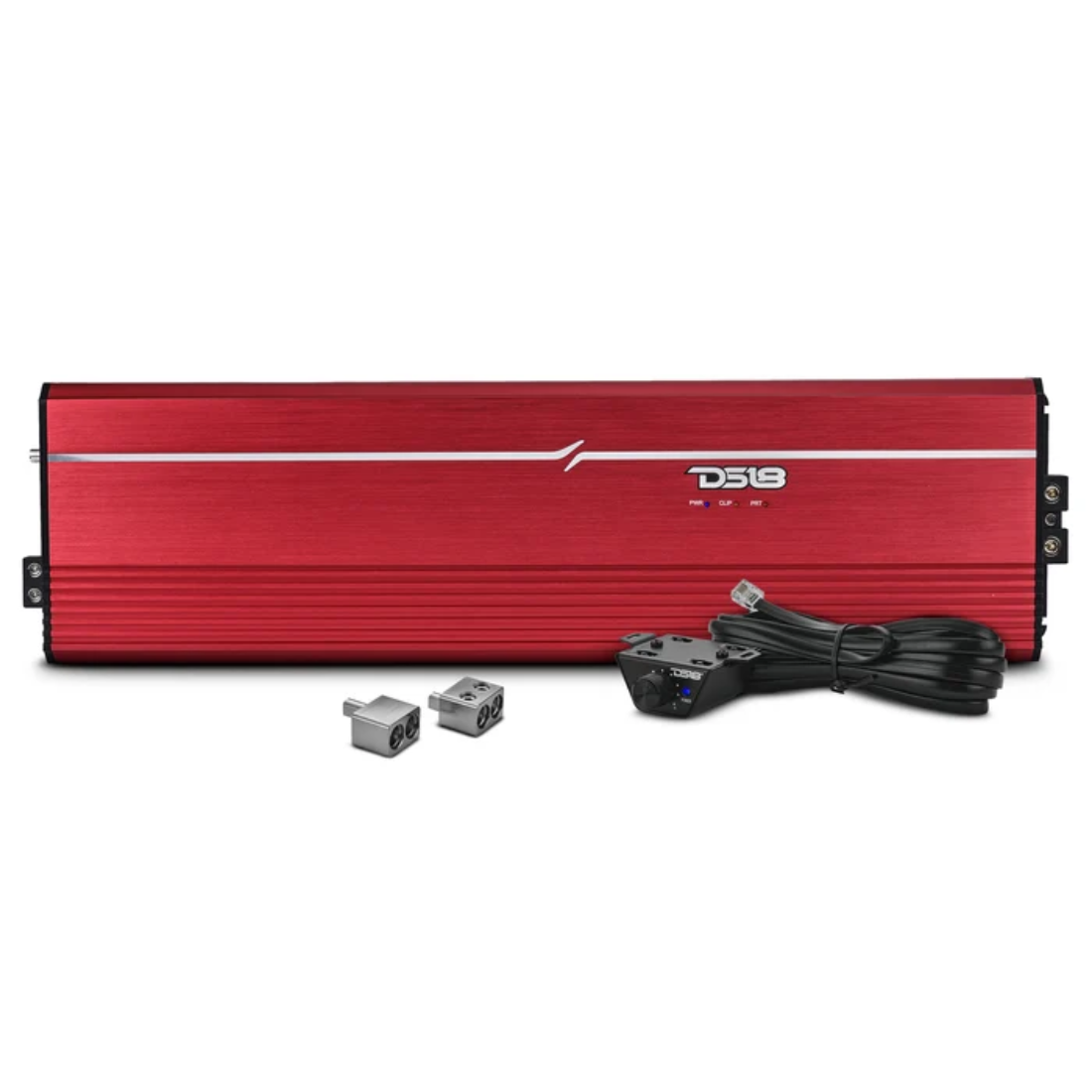

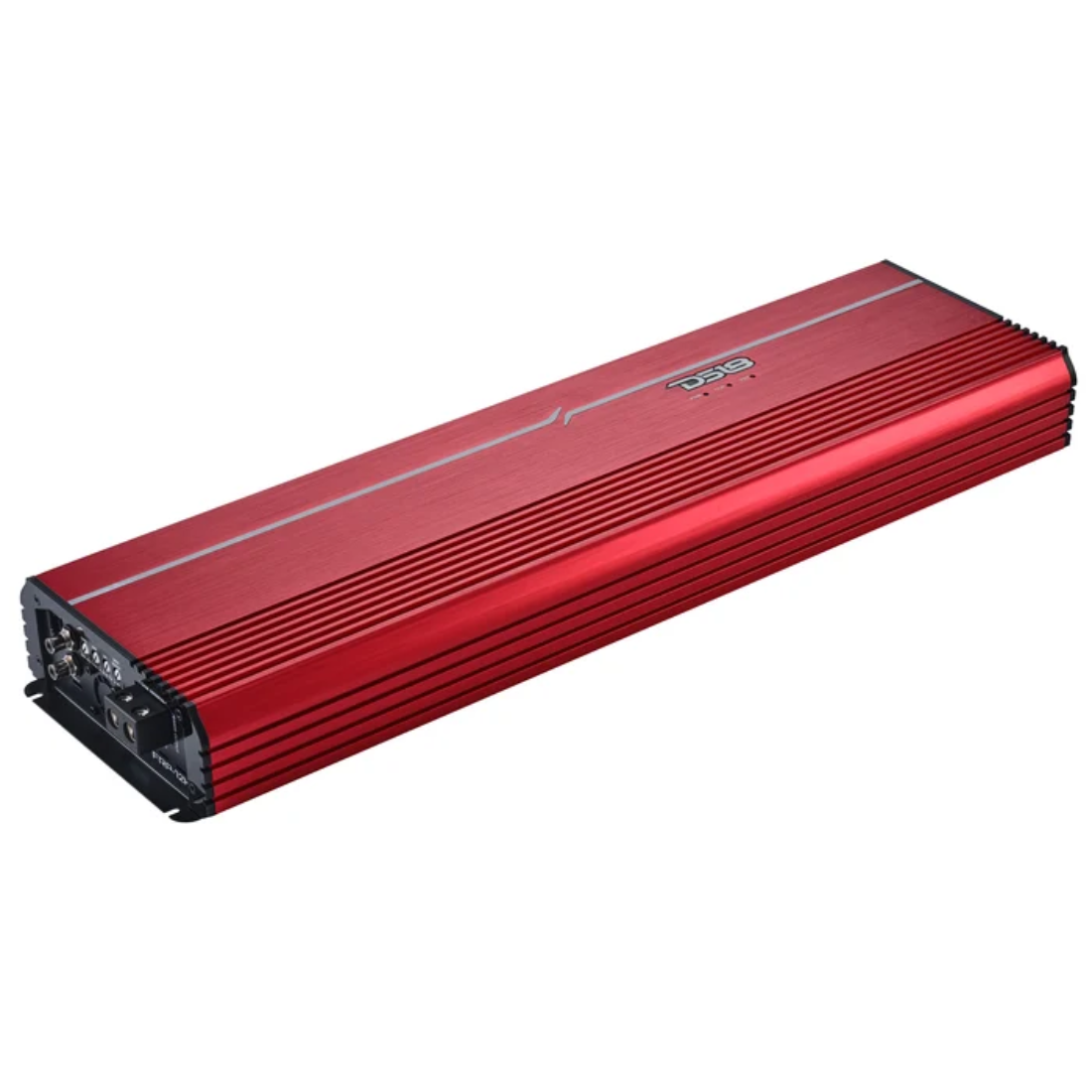

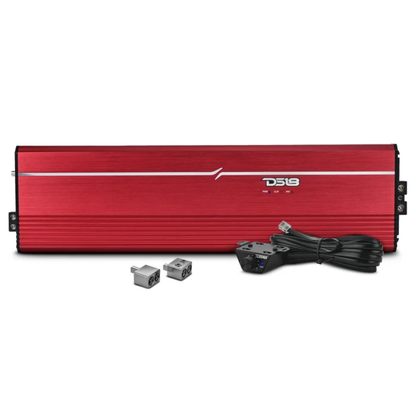

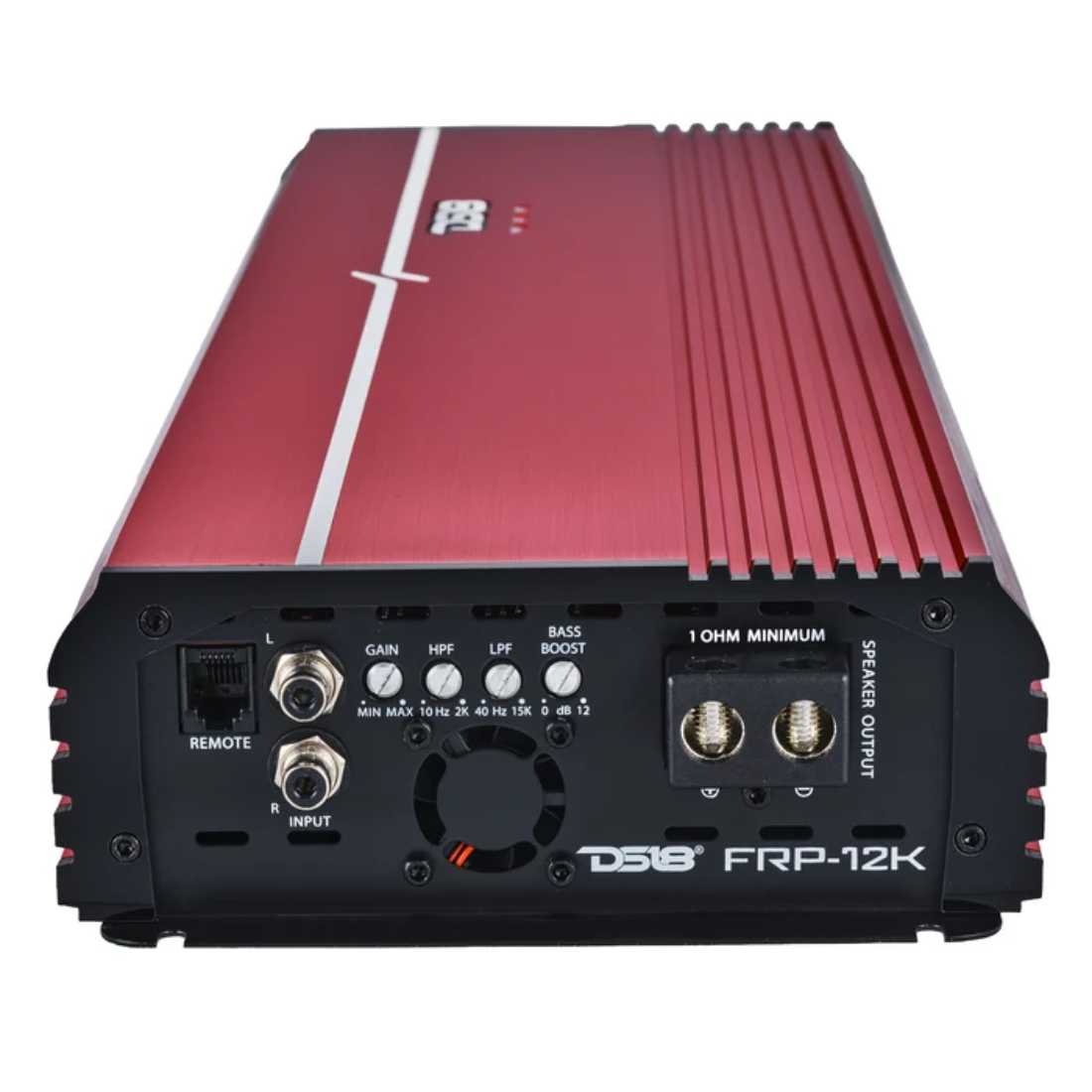

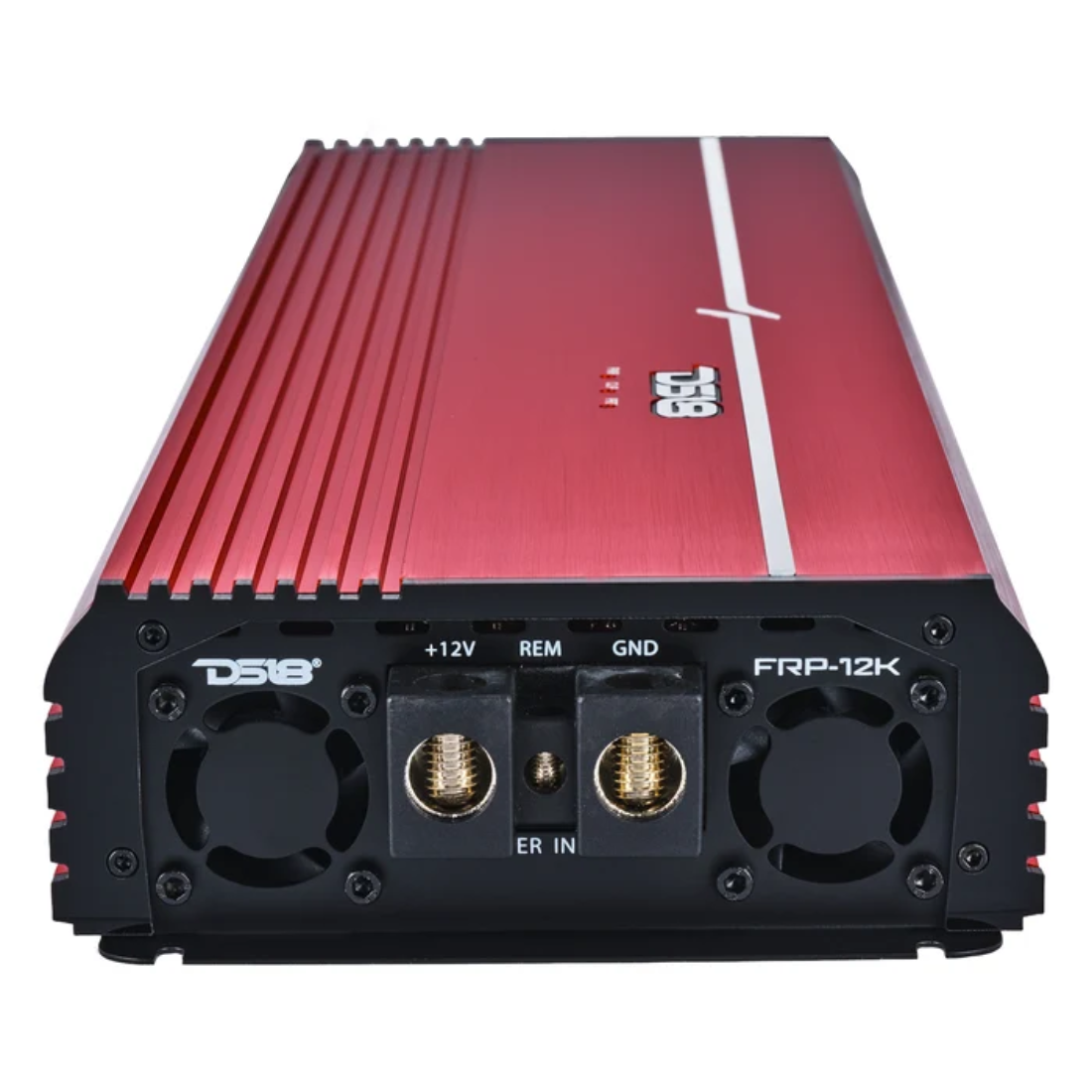

DS18 FRP-12K/RD 1-CH Monoblock 12,0000W RMS Class-D Full-Range Amplifier (RED)

BRAND NEW

DS18 FRP-12K/RD

1-CH Monoblock 12,0000W RMS Class-D Full-Range Amplifier (RED)

Key Features:

• Full-Range Class D Monoblock
• 12,000W RMS at 1 Ohm
• Compact High-Power Design
• Smart Cooling System
• Remote Level Control
• Clip, Short Circuit, and Overload Protection

General Specs:

• Amplifier Class: Digital
• Amplifier Type: Full-Range Monoblock
• Number of Channels: 1CH
• Minimum Impedance: 1 Ω
• Led Indicator: Power / Protect / Clipping

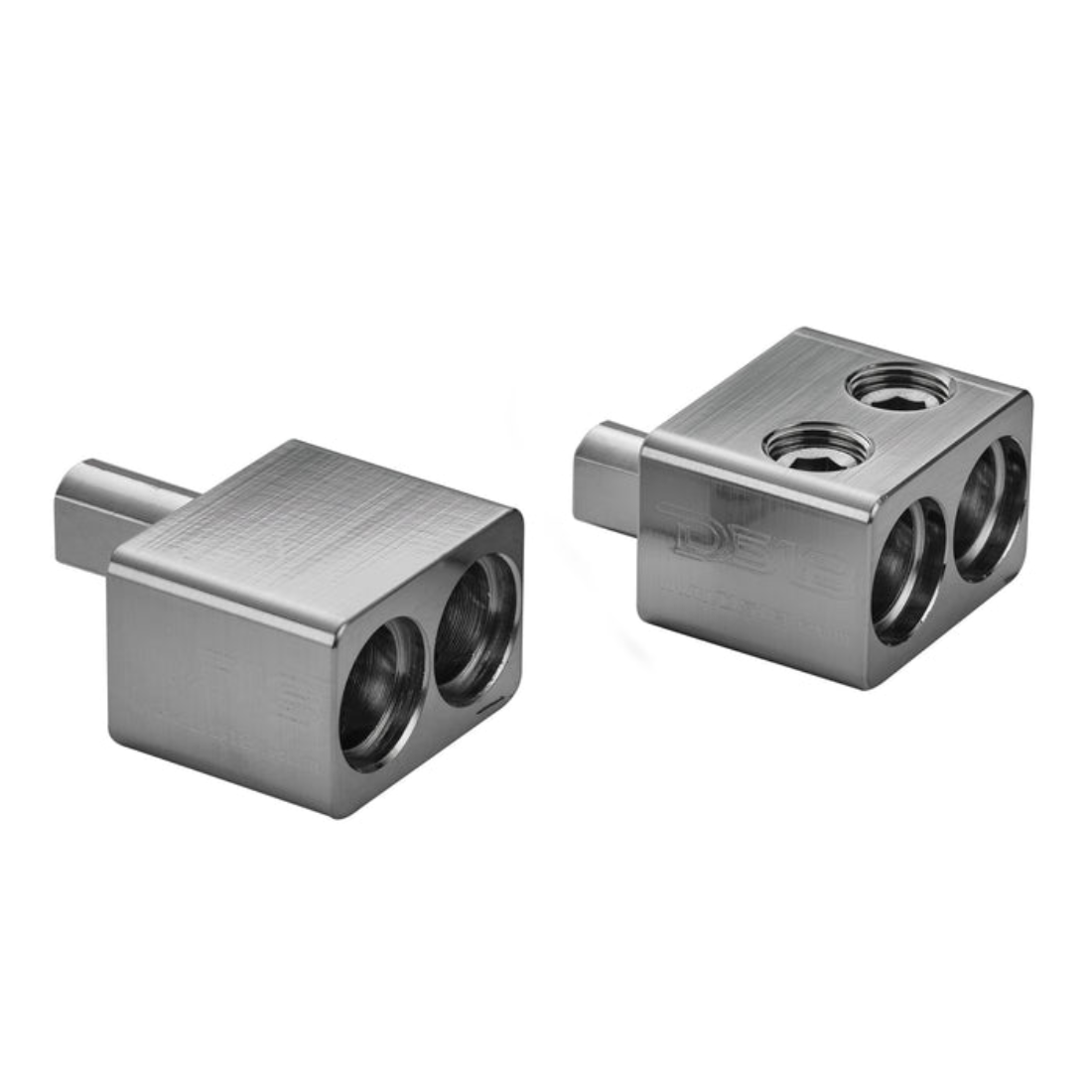

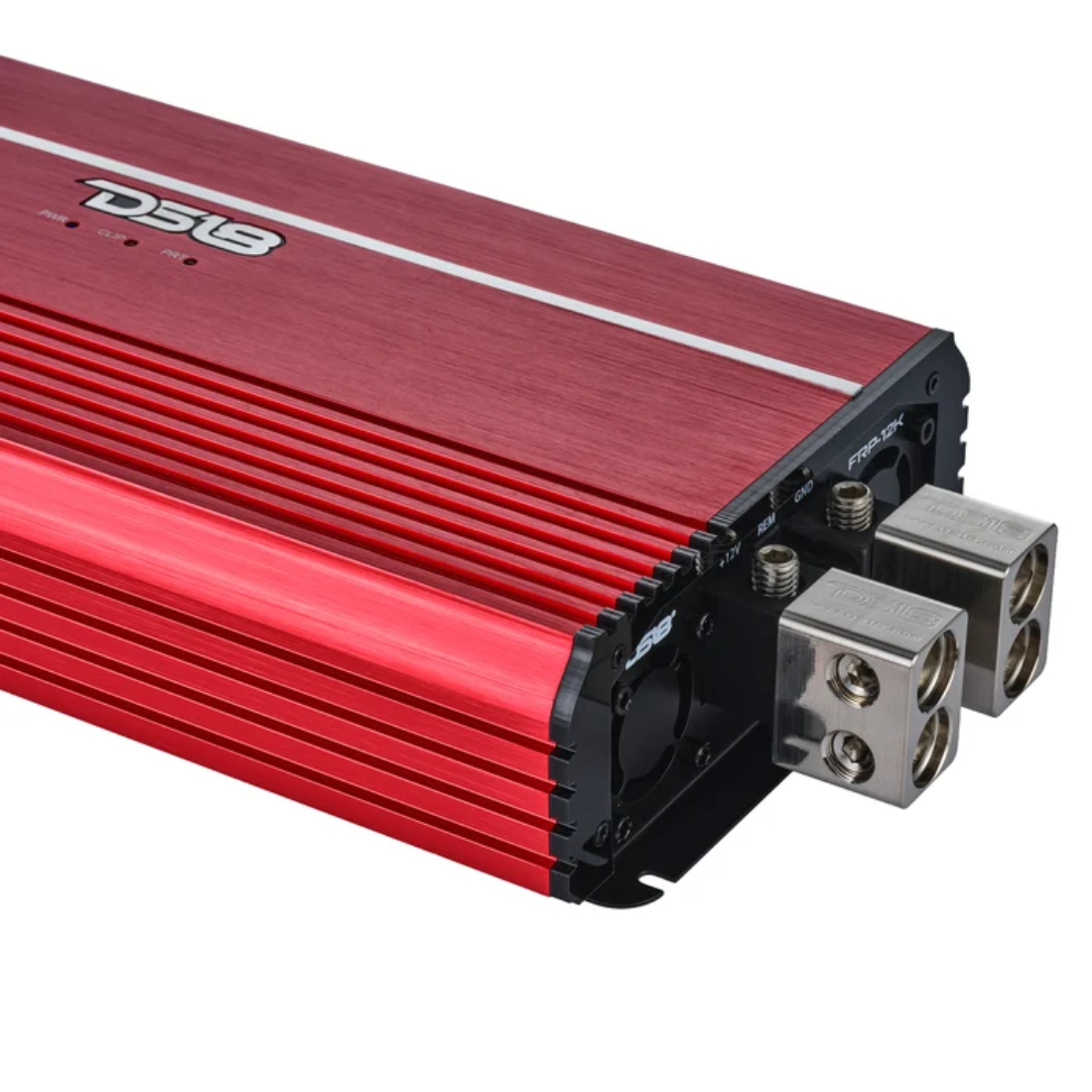

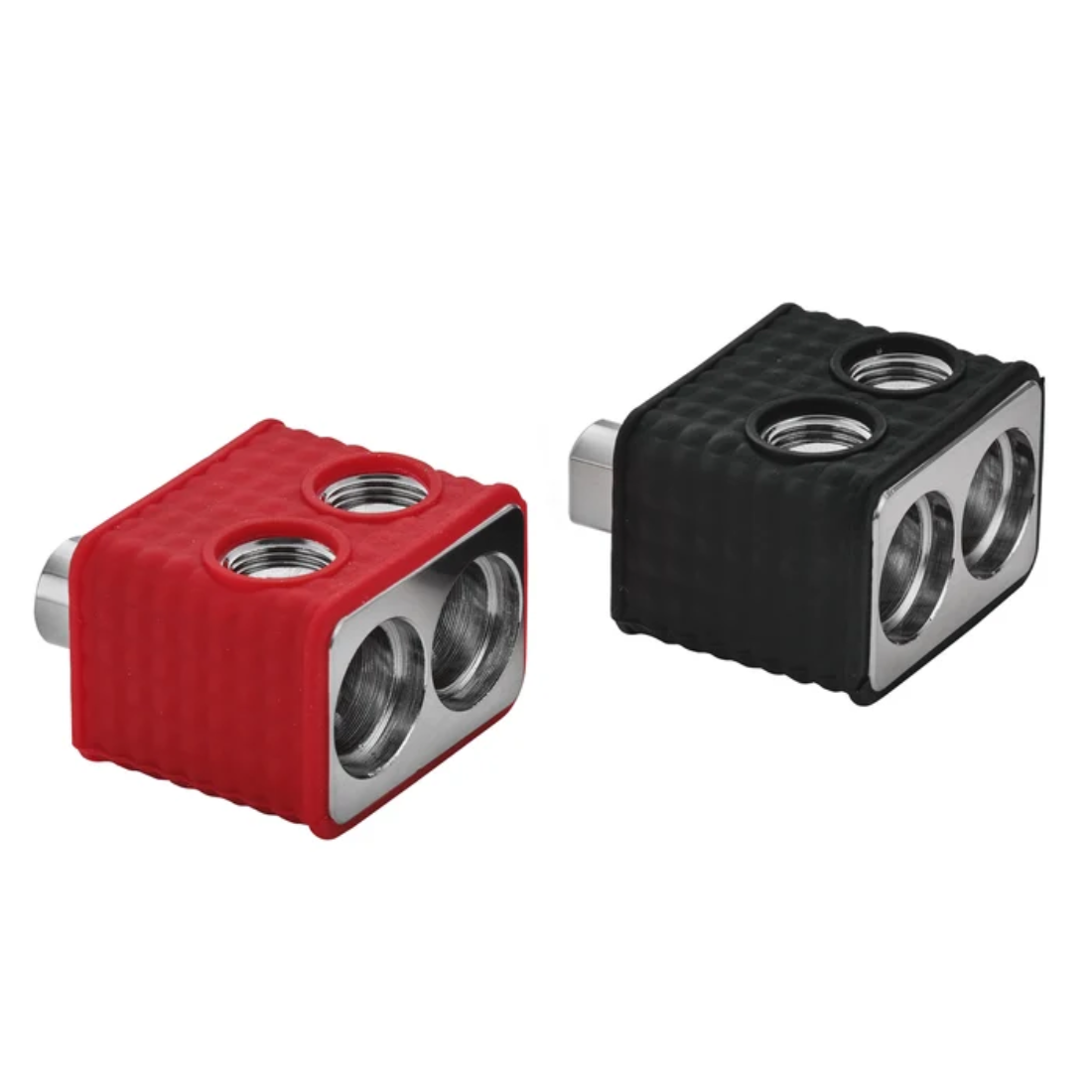

• Power Input Terminal Size: 0GA
• Fuse Size (Recommended): 1300A
• Cooling Fan: Yes (Smart Cooling x 3)
• Voltmeter: No
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Blue / Red / Titanium
• Compact Size to Easy Installation for Any Applications: Yes

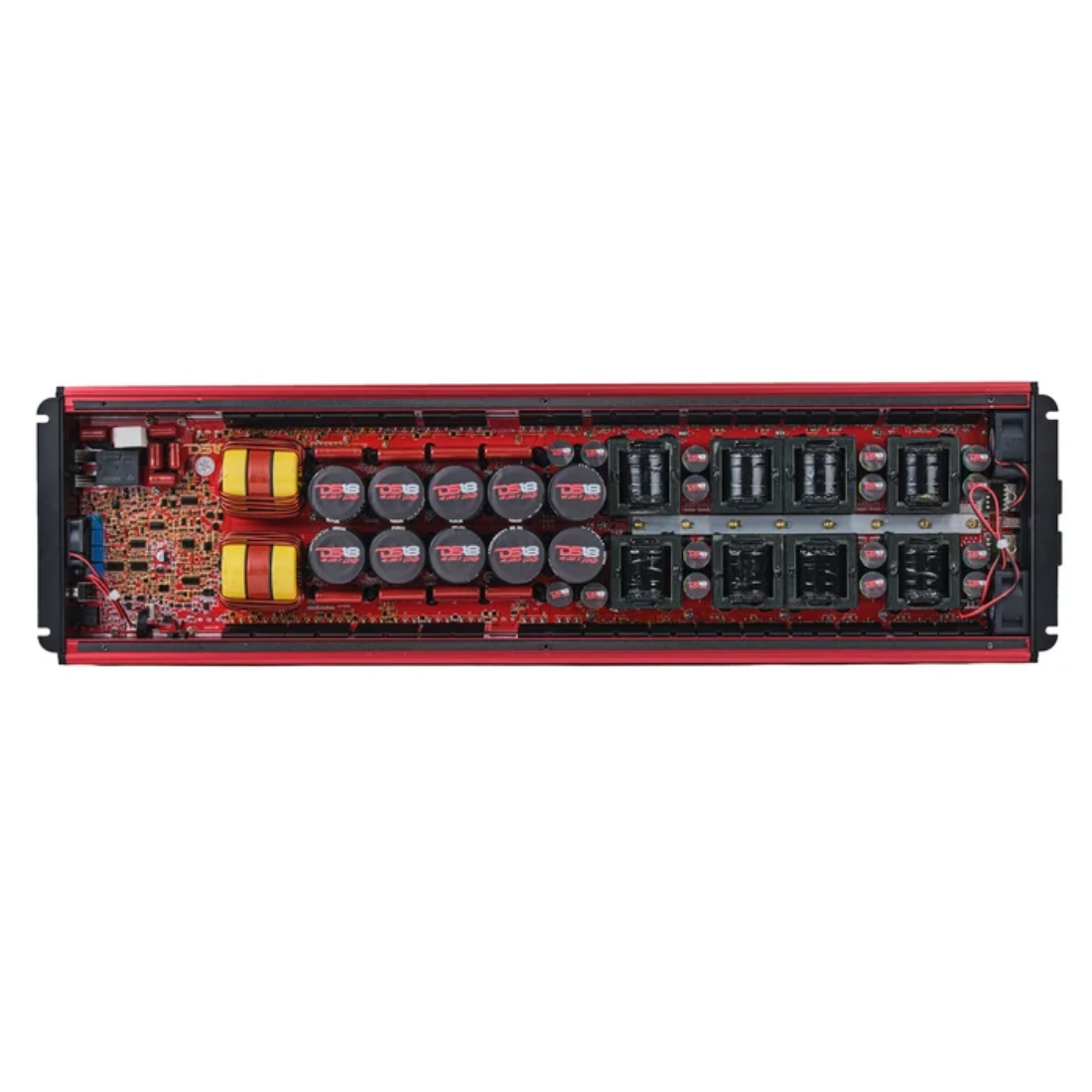

• Stable/Reliable Four Layers Traces PCB Design: Yes
• Surface Mount Component Technology: Yes
• Quality Control Verification using Audio Precision Instruments: Yes
• Tiffany RCA Terminal: Yes
• LED Clip Indicator: Yes
• Metal Knobs with Click Steps: Yes

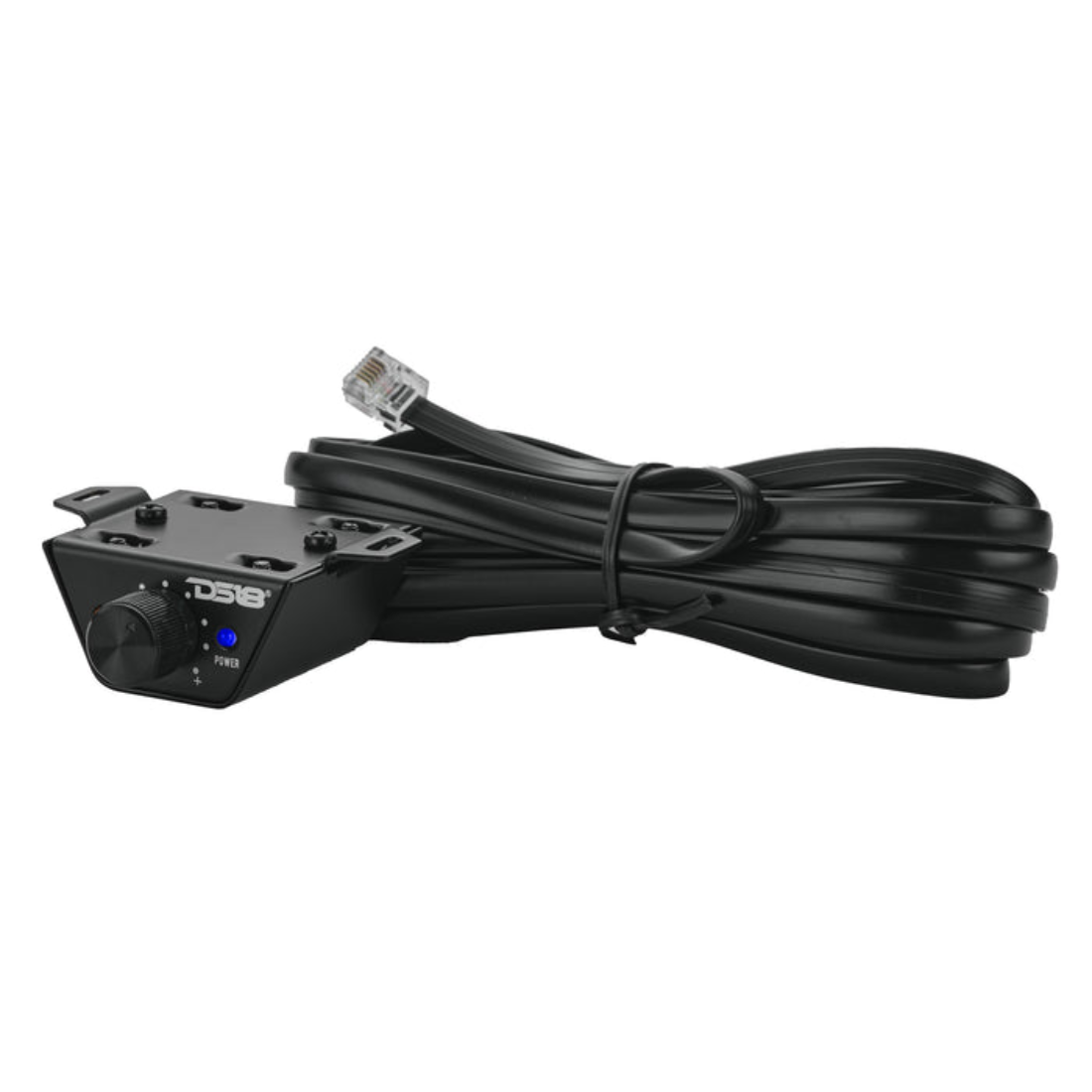

• Remote Level Control with Clip Indicator: Included
• Remote Level Control with Clip Indicator and Voltmeter: Optional

Power Features:

• RMS Power @ 4 ohms: 4000W
• RMS Power @ 2 ohms: 7500W
• RMS Power @ 1 ohm: 12000W
• MAX Power @ 1 ohm (Burst): 13000W

Audio Features:

• Frequency Response: 10Hz-15kHz
• Signal to Noise Ratio: 90dB
• Efficiency @ 4ohm: 92%
• Damping Factor: 90
• Input Impedance: 10K Ω
• Total Harmonic Distortion (THD): 0.5%
• Low Level Input Range: 400mV-6V
• High Level Input: No
• Selectable X-Over: Band-Pass
• X-Over Filter Range: HP: 10Hz-2KHz / LP: 40Hz-15KHz
• Bass Boost Range: 0-12dB
• Bass Boost Frequency: 50Hz
• Phase Selector: No.

Measurement:

• Overall Length: 24" / 610mm
• Overall Width: 6.5" / 167mm
• Overall Height: 2.4" / 62.5mm
• Heatsink Length: 22.6" / 576mm
• Gross Single Unit Weight: 7.3Kg
