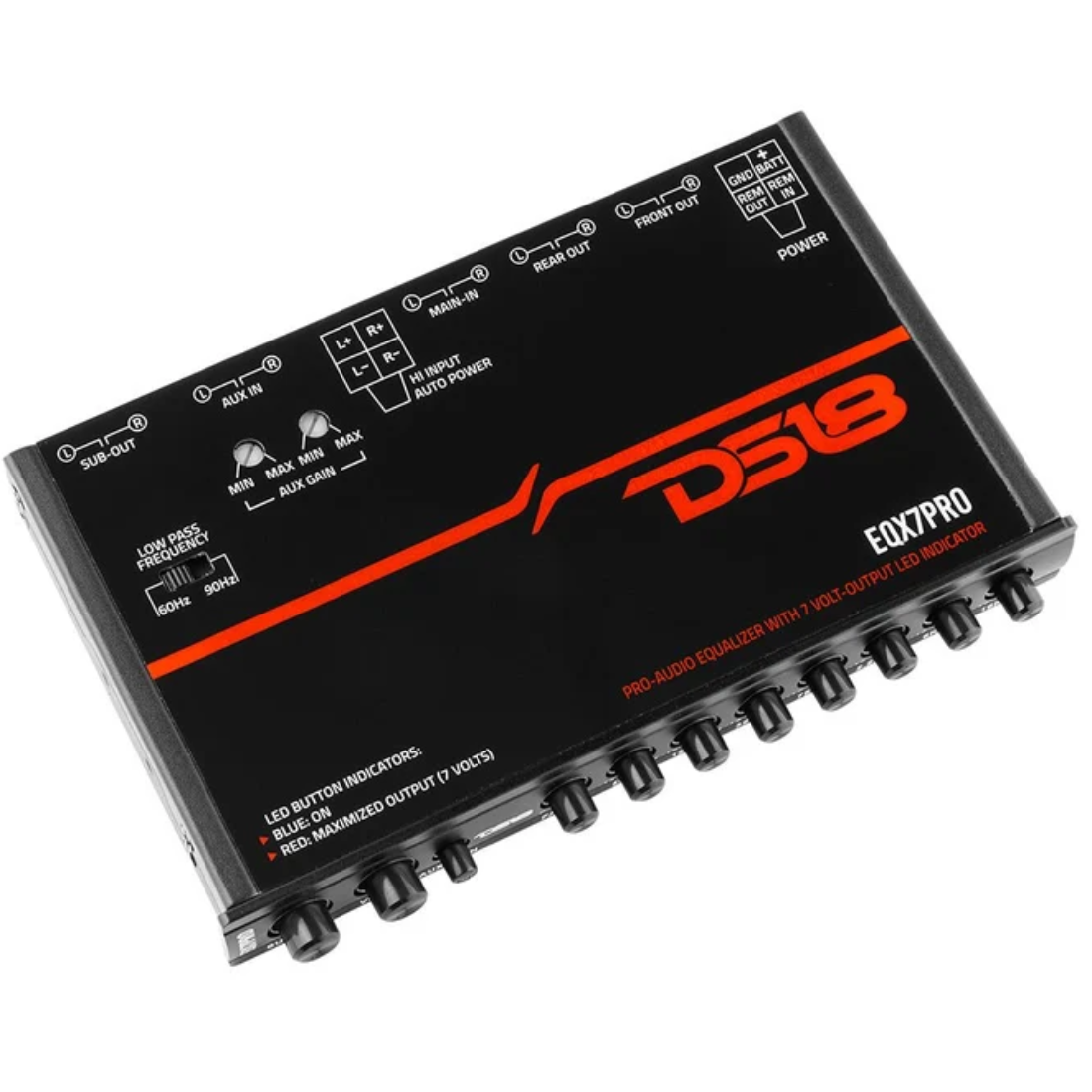

DS18 EQX7PRO 1/2 DIN 7 Band Graphic Equalizer w/ 7 Volt-Output LED Indicator

BRAND NEW

DS18 EQX7PRO

1/2 DIN 7 Band Graphic Equalizer w/ 7 Volt-Output LED Indicator

Key Features:

• 7-Band Graphic Equalizer
• PWM (Pulse Width Modulated) power supply
• Blue Backlit with Red 7V output indicator
• Remote auto turn-on (hi-level speaker input)
• Gold-plated contacts for optimum signal transfer
• Master, fader, and subwoofer volume control
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Left and right gain adjustments
• 2 Pairs of RCA inputs

Specifications:

• Number of Bands: 7 band
• Input sensitivity: 50mV - 3 volts
• Signal-to-noise ratio: 100 dB
• Output level: 11V-15V
• Cut/Boost: 12 dB
• Total Harmonic Distortion (THD): 0.005%
• Frequency response: 10 - 30000 Hz
• Channel separation: 82 dB
• Dimensions: 4.4" W x 4.4" D x 1.18" H
