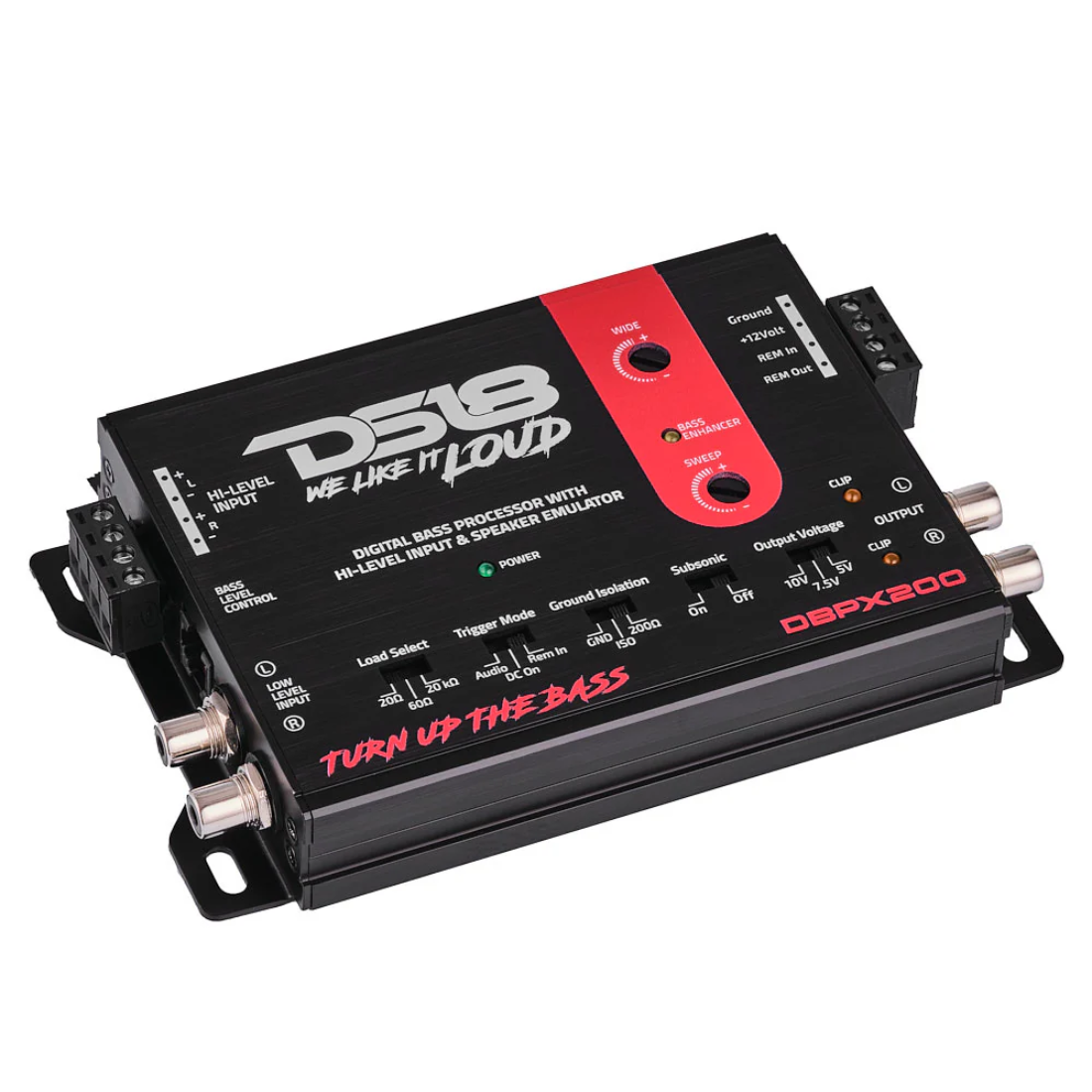

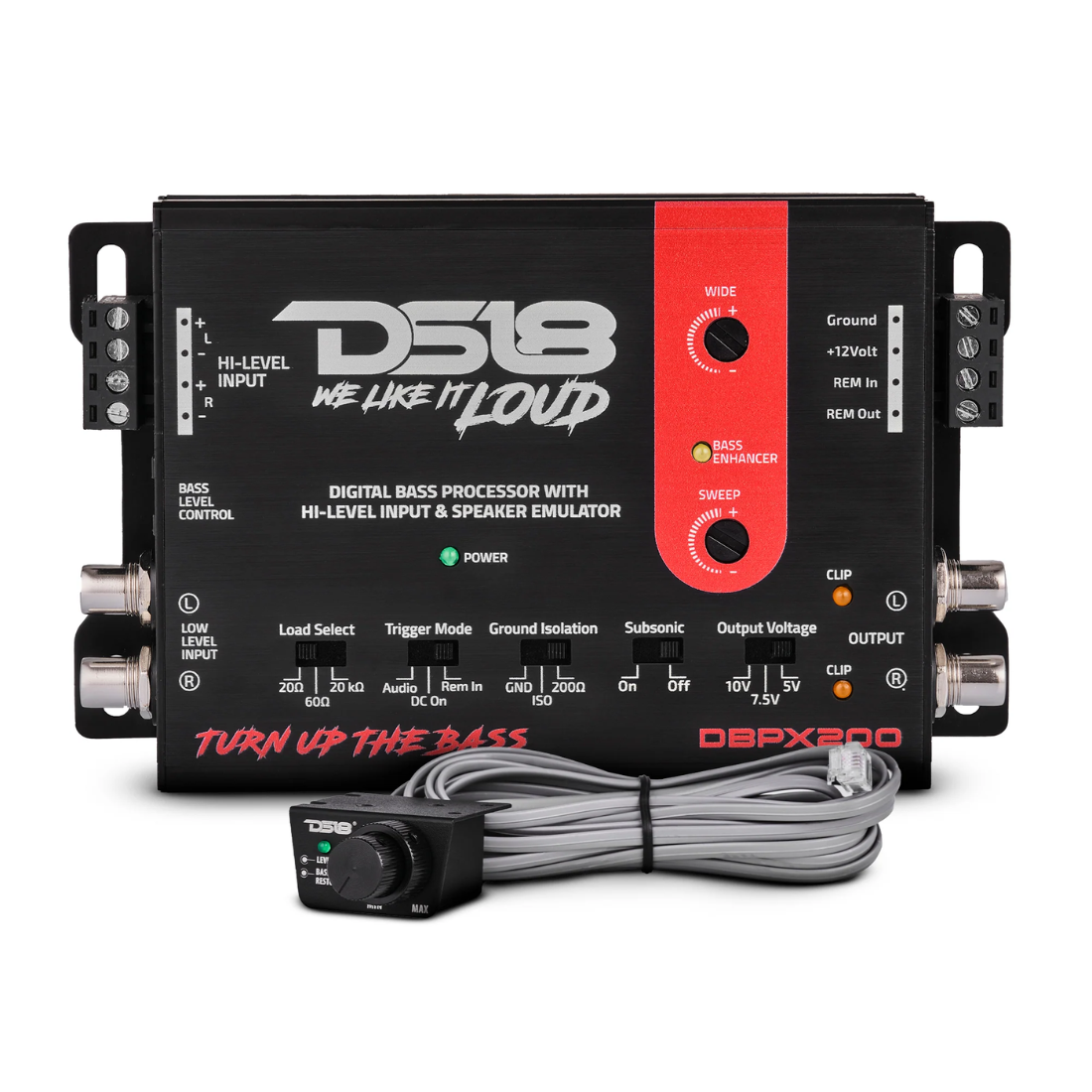

DS18 DBPX200 Digital Bass Processor w/ Hi-Low Signal Converter/Speaker Emulator

DS18 DBPX200 Digital Bass Processor w/ Hi-Low Signal Converter/Speaker Emulator

$179.95 USD
$179.95 USD
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
PayPal Venmo Affirm Klarna
Buy with confidence Free shipping 30 days guarantee

Product details

BRAND NEW

DS18 DBPX200

Digital Bass Processor with Hi To Low Signal Converter & Speaker Emulator

Key Features:

  • Digital Bass Restoration Processor
  • Hi to Low Converter / Speaker Emulator
  • 2 Channel Preamp Input / Output
  • Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors

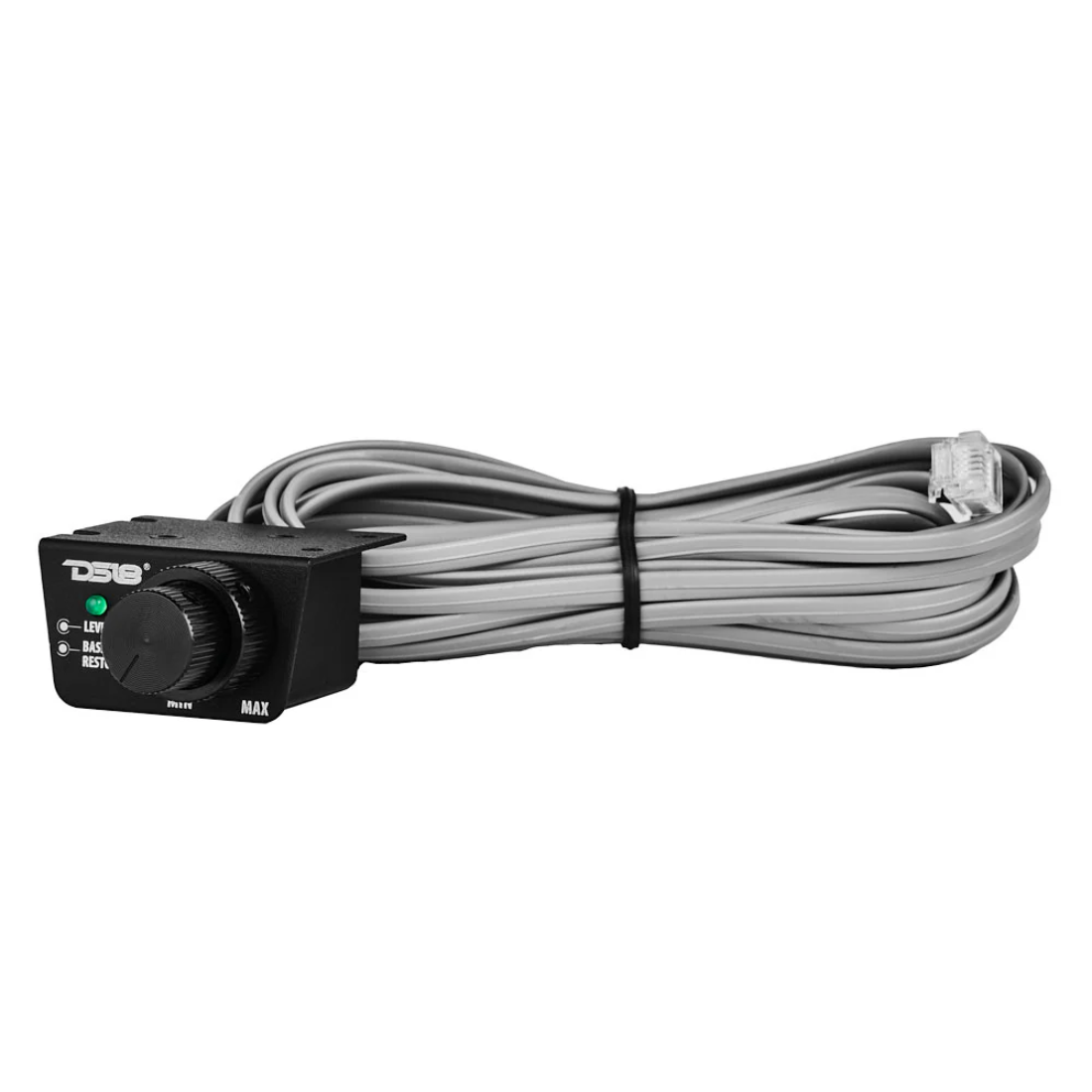

  • Remote Level Control w/ Bass and Level
  • Compact Design
General Specs:

  • SKU: DBPX200
  • Operating Voltage: 9-16V
  • Power Consumption: 0.18A
  • Recommended Fuse Rating: 1A
  • Power Input Terminal Size: 16ga
  • LED Indicator: Power / Bass Enhancer
  • Ground Isolation Switch: Yes (GND/ISO/200?)
  • Hi-Level Speaker Input: Yes (2 Channels)
  • Auto Turn-on Function: Yes (Audio/DC)
  • Remote Turn-on (Input / Output): Yes
  • Remote Level Control: Yes (Bass Enhancer/Level)
  • RCA Connector Type: Tiffany (Silver)
  • Housing Material: Aluminum
  • Body Color / Finish: Black
Audio Specs:

  • Frequency Response: 10Hz-20kHz
  • S/N Ratio: 95dB
  • THD: 0.05%
  • Input Sensitivity (Low-Level): <8.8V
  • Input Sensitivity (Hi-Level): >15V
  • Input Impedance: 20Kohms
  • Output Voltage: Selectable (5V/7.5V/10V)
  • Output Impedance: 110ohms
  • Balanced Input Noise Rejection: >45dB
  • Stereo Separation: >50dB
Crossover Section:

  • Subwoofer LPF Frequency Cut-off: No (Full Range Signal)
  • Subwoofer Infrasonic Frequency Cut-off: Selectable (Off/50Hz)
Bass Processor Section:

  • Gain: 0~8.8V
  • Center Frequency (Sweep): 75Hz~120Hz
  • Q Factor (Wide): 1~4
Extra  Features:

  • Compact Size to easy Installation for Any Applications: Yes
  • Surface Mount Component Technology: Yes
  • Quality Control Verification using Audio Precision Instruments: Yes
  • Remote Level Control with Clip Indicator: Yes
Measurements:

  • Overall Length: 6" / 153mm
  • Overall Width: 3.7" / 95mm
  • Overall Height: 1.1" / 28mm
