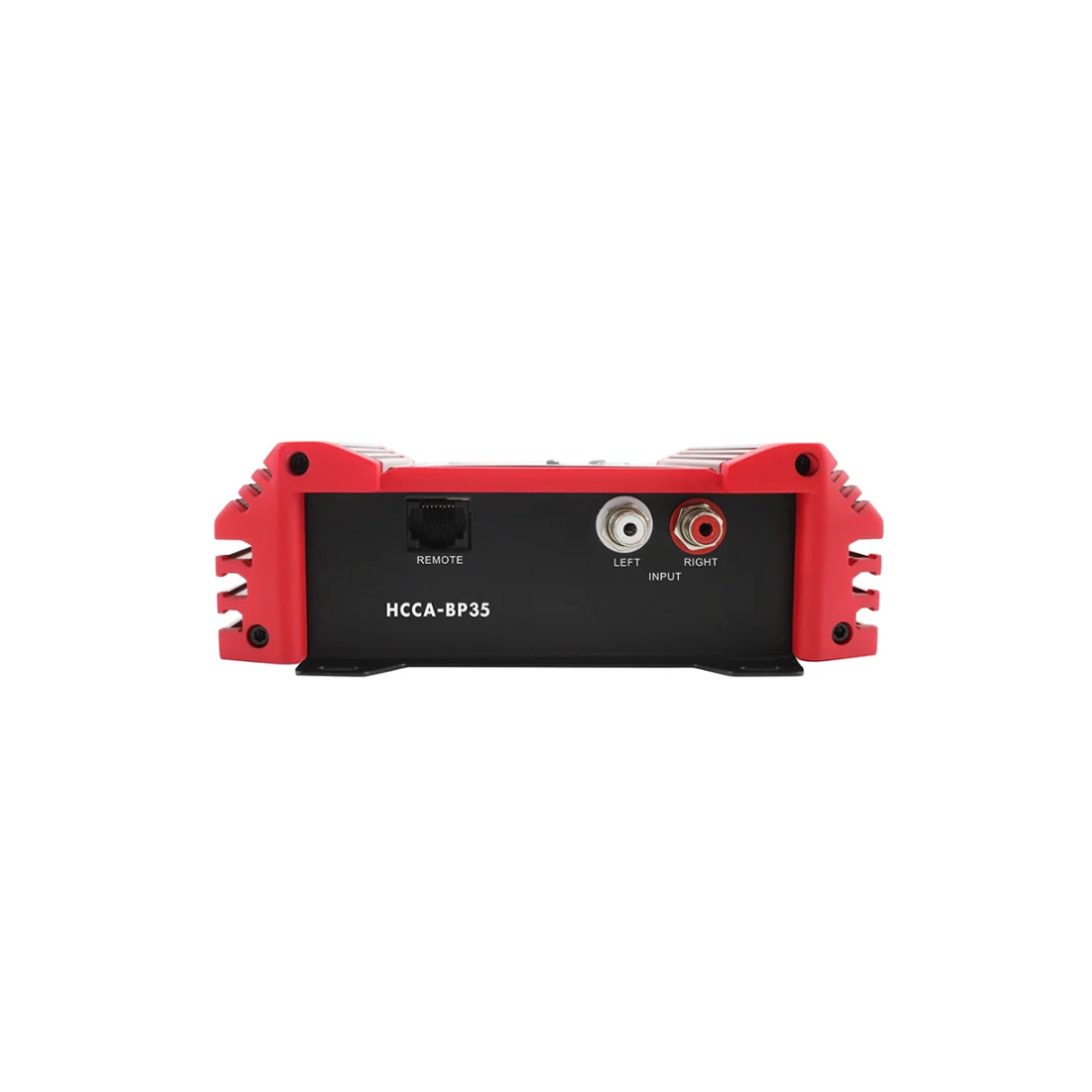

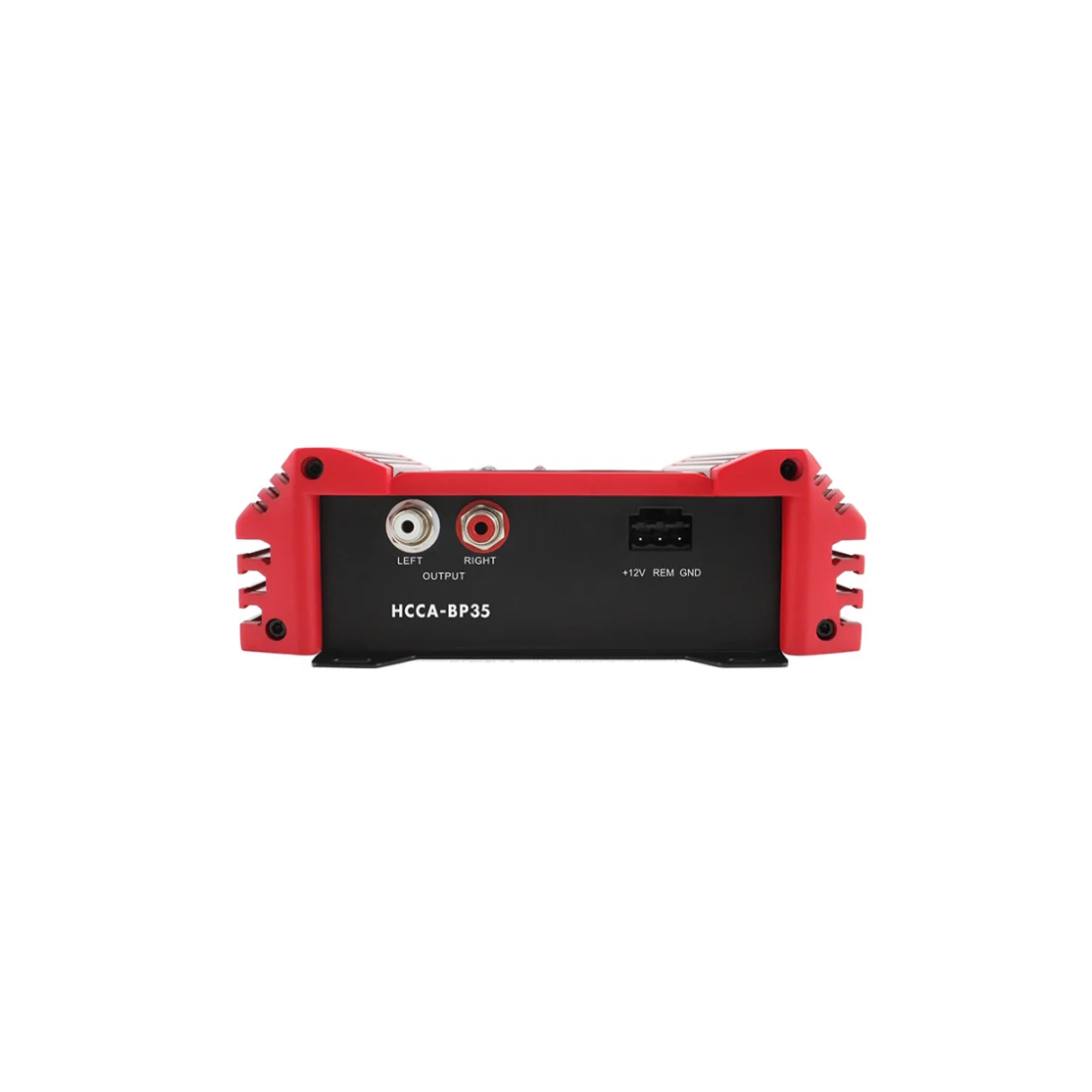

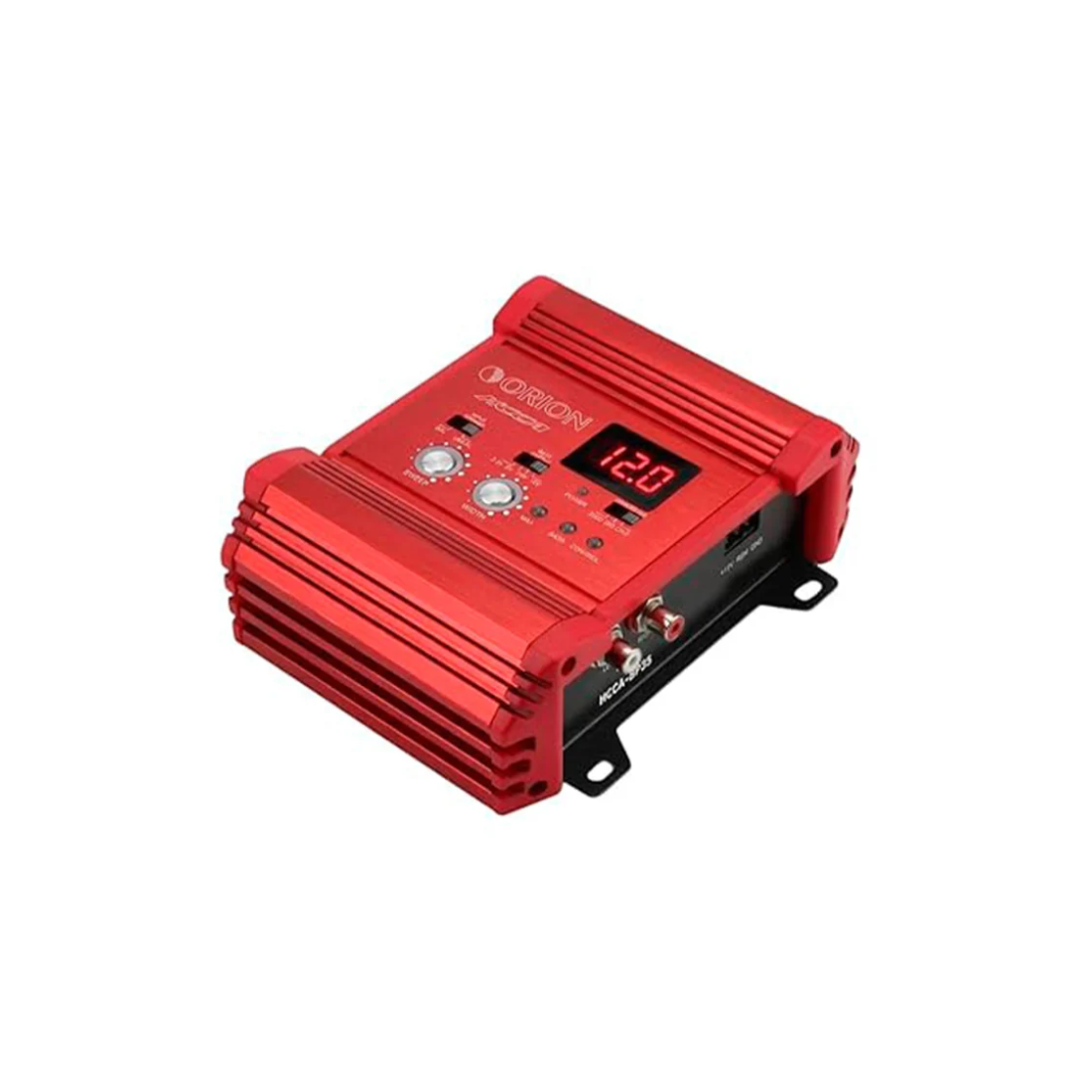

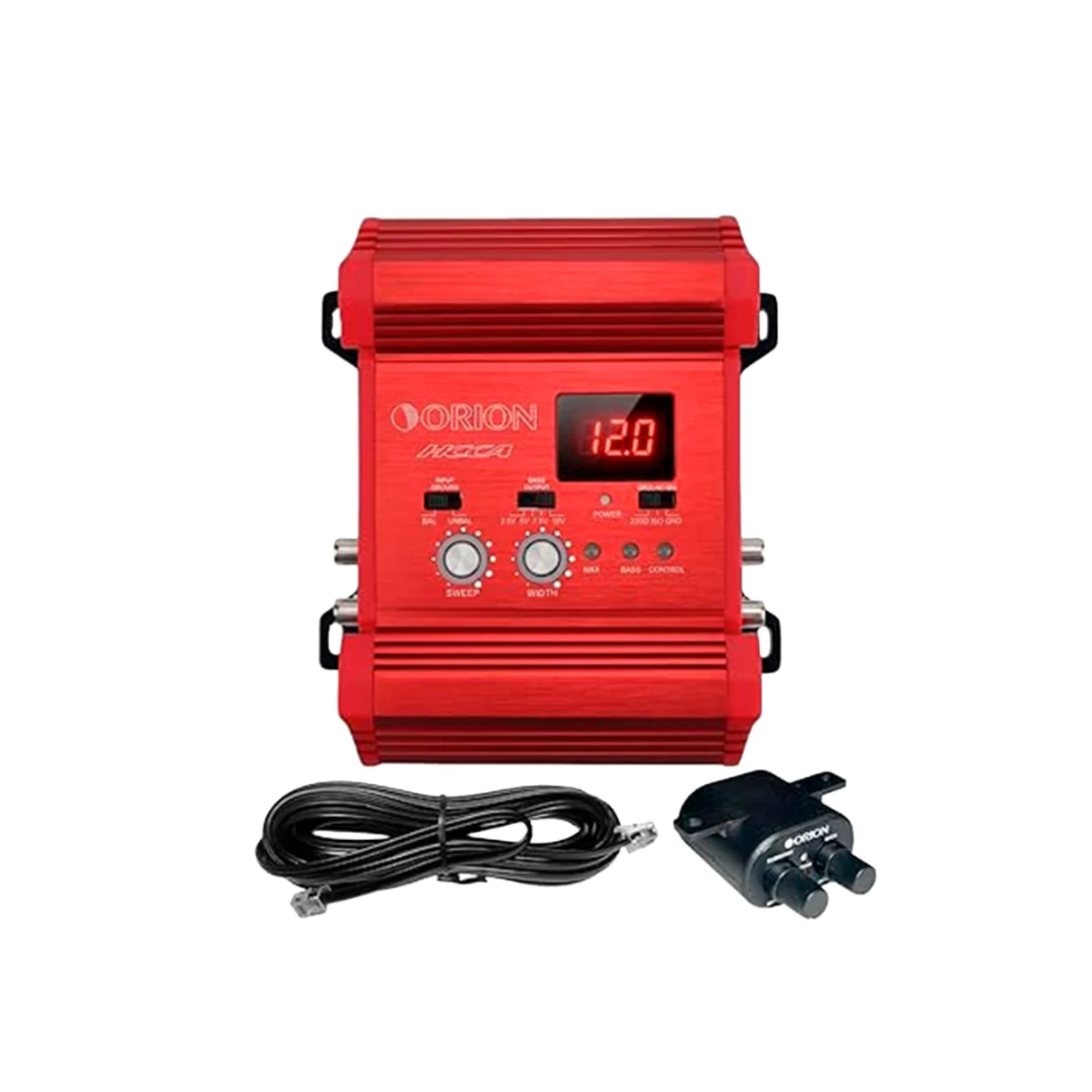

Orion HCCA-BP35 Bass Restoration Processor w/ 10V Output & Voltage Meter Display
Orion HCCA-BP35 Bass Restoration Processor w/ 10V Output & Voltage Meter Display
Regular price
$169.95 USD
Regular price
Sale price
$169.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION HCCA-BP35
Bass Restoration Processor w/ 10V Output & Voltage Meter Display
Key Features:
- HCCA High Performance Bass Processor: Designed for high-power car audio systems to deliver deep, controlled bass enhancement for subwoofer setups.
- Bass Restoration Technology: Recovers low-frequency information lost in compressed or factory audio signals for stronger, more impactful bass.
- Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to emphasize.
- Width Bandwidth Control: Allows tuning of the bass restoration range for wide deep bass response or tighter, punchier bass.
- Selectable High Voltage Output: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier’s input sensitivity and maximize signal strength.
- Voltage Meter Display: Built-in voltage display allows real-time monitoring of your system’s operating voltage.
- Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
- Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
- Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the included remote bass knob.
- Competition-Grade Signal Processing: High signal-to-noise ratio and ultra-low distortion ensure clean bass output even in extreme systems.
Specifications:
- Power Supply: 6.5V – 18V
- Maximum Input Level: 10V
- Maximum Output Level: 10.5V
- Input Sensitivity: 10.7V
- Input Impedance: >50K Ohms
- Output Impedance: 100 Ohms
- EQ Boost / Cut: 15 dB
- Signal-to-Noise Ratio: >110 dB
- THD @ 2V Output: <0.02%
- Channel Separation: >80 dB
- CMRR: -73 dB Balanced / -29 dB Unbalanced
- Frequency Response: 10 Hz – 30 kHz
- Subsonic Filter: 27 Hz – 72 Hz
- Current Draw: 230 mA
- Interchannel Gain Tracking: 0.1 dB
- Fuse Rating: 1A
- Dimensions: 3.98” x 6.38” x 2.09”
